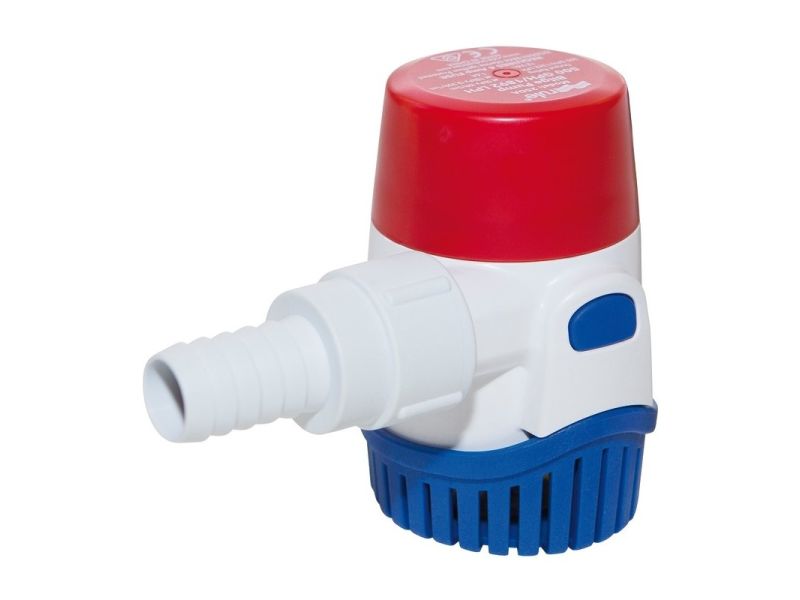

Rule Bilge Pump
This pump integrates the following devices:
1 - Streamlined impeller. High flow and low current draw.
2 - Built-in circuit breaker.
3 - Check valve (except 16.483.12) to avoid backflow from the drain hose.
4 - Vent integrated in the pump body to prevent air bubbles in the circuit and to work in pair with the check valve.
5 - Drain threaded hose adapters for easy installation.
| Article number |
Mode | Rule code |
| 16.470.12 | 360 | 24DA |
| 16.471.12 | 500 | 25DA |
| 16.471.24 | 500 | 25DA-24 |
| 16.472.12 | 800 | 20DA |
| 16.472.24 | 800 | 20DA-24 |
| 16.473.12 | 1100 | 27DA |
| 16.473.24 | 1100 | 27DA-24 |
| 16.483.12 | 1100 auto | 27SA |
| Article number |
V | Flow Max. (l/min) |
Flow 1.5 m head (l/min) |
Current draw (A) |
| 16.470.12 | 12 | 28 | 15 | 2,1 |
| 16.471.12 | 12 | 36 | 19 | 1,6 |
| 16.471.24 | 24 | 36 | 19 | 1 |
| 16.472.12 | 12 | 64 | 35 | 3,4 |
| 16.472.24 | 24 | 64 | 35 | 1,7 |
| 16.473.12 | 12 | 74 | 40 | 3,7 |
| 16.473.24 | 24 | 74 | 40 | 1,9 |
| 16.483.12 | 12 | 74 | 40 | 3,7 |
| Article number |
Base Ø (mm) |
Height (mm) |
Hose adapter (mm) |
| 16.470.12 | 64 | 99 | 19 |
| 16.471.12 | 64 | 99 | 19 |
| 16.471.24 | 64 | 99 | 19 |
| 16.472.12 | 64 | 111 | 19 |
| 16.472.24 | 64 | 111 | 19 |
| 16.473.12 | 64 | 111 | 25/29 |
| 16.473.24 | 64 | 111 | 25/29 |
| 16.483.12 | 64 | 111 | 29 |
