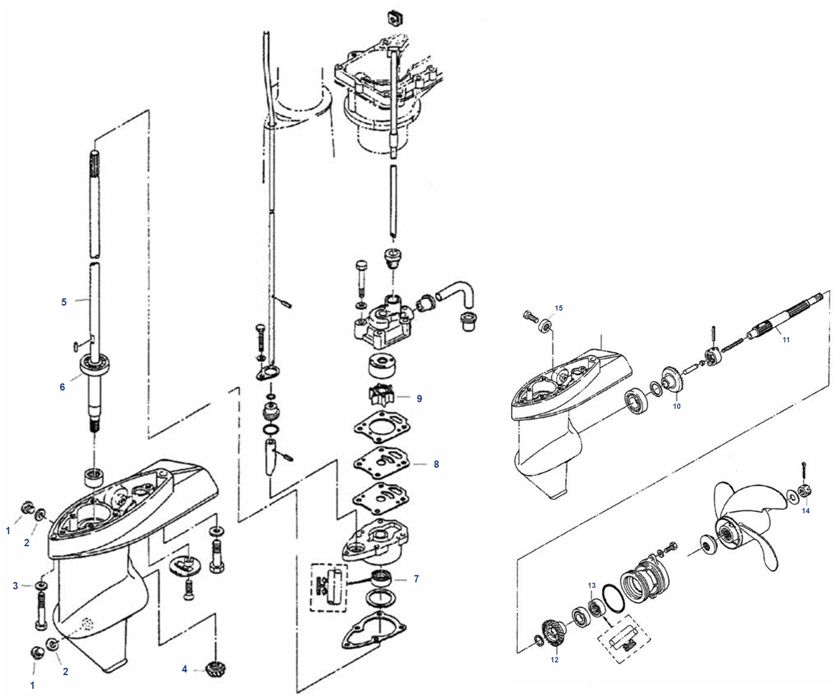

4 / 5 HP 2-Stroke & 4 / 5 / 6 HP 1 Cyl 4-Stroke

Nummer:	Bestelnummer:	Gelijk aan:	OEM:	Omschrijving:
1	PAF6-03000000L			LOWER CASING ASSY (L)
1	PAF6-03000000S			LOWER CASING ASSY (S)

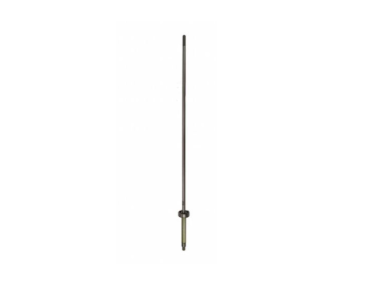

2	PAF6-03000100L	REC45-8M0076368	45-16136 1	DRIVE SHAFT ASSY (L)

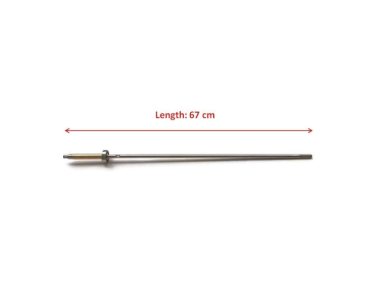

2	PAF6-03000100S	REC45-161351	45-16135 1	DRIVE SHAFT ASSY (S)
3	PAT5-03000009			DOWEL PIN, IMPELLER

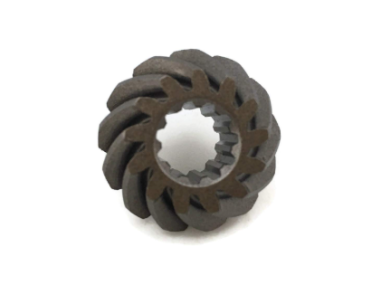

4	PAT5-03000003			PINION
5	PAT5-03000013			SEAL A, WATER PIPE
6	PAT5-03000012			WATER PIPE B
7	PAT5-03000014			SEAL B, WATER PIPE
8	PAGB/T5782-M6x45			BOLT M6x45
9	PAGB/T97.1-6		92995-06600	WASHER 6
10	PAF6-03000001	16156	16156, 46-16156	WATER PUMP
11	PAF6-03000002	REC16157		INNER SHELL, WATER PUMP
12	PAT5-03000300	REC47-161543	47-16154 3	IMPELLER, WATER PUMP
13	PAF6-03000003	27-16158009	27-16158009	UPPER GASKET, OUTER PLATE
14	PAT5-03000007	REC16159	16159	OUTER PLATE
15	PAT5-03000006	27-16160004	27-16160004	LOWER GASKET, OUTER PLATE
16	PAF25-04000007		93604-08062	PIN Ø4x10
17	PAT5-03000201			WATER PUMP SEAT
18	PAT5-03000100 (L)			CAM ASSY, SHIFT ROD (L)
18	PAT5-03000100 (S)			CAM ASSY, SHIFT ROD (S)
19	PAGB/T879.2-1.5x12			PIN 1.5x12
20	PAJISB2401P16			O-RING 15.8x2.4
21	PAT5-03000020			ORIENTED BUSHING, SHIFT ROD
22	PAT5-03000022			SEAL B, ORIENTED BUSHING
23	PAT5-03000023			PLATE, ORIENTED BUSHING
24	PAGB/T5783-M6x16			BOLT M6x16
25	PAT5-03000202			OIL SEAL, WATER PUMP SEAT
26	PAT5-03000004-1			SHIM 0.10mm
26	PAT5-03000004-2			SHIM 0.15mm
27	PAT5-03000005	27-16164003	27-16164003	GASKET, WATER PUMP SEAT
28	PATLA1412Z			NEEDLE BEARING
29	PAT5-03000700			LOWER CASING ASSY
30	PAT5-00000001			HOLLOW PIN Ø7.5x10
31	PAGB/T861.1-6			LOCK WASHER 6
32	PAT5-03000017	CM3H6-60218-000	875208	ANODE SQUARE
33	PAT5-00000002			HOLLOW PIN Ø9.5x10
34	PAGB/T97.1-8		66M-11327-00-94	WASHER 8
35	PAGB/T5782-M8x40			BOLT M8x40
35	PAGB/T5782-M8x167			BOLT M8x167
36	PAF4-03000023		6E0-45316-09, 22-95368 3	PLUG, OIL HOSE
37	PAF4-03000024		90340-08002, 27-95220	GASKET
38	PAGB/T5782-M6x45			BOLT M6x45
38	PAGB/T5782-M6x172			BOLT M6x172
39	PAGB/T820-M6x20			SCREW M6x20
40	PAT5-03000016			WATER INLET
41	PAGB/T276-6004		16128	BEARING 6004
42	PAF8-04000002-1			SHIM 0.10mm
42	PAF8-04000002-2			SHIM 0.15mm
43	PAT5-03010000	REC43-812944	812944	FORWARD GEAR ASSY

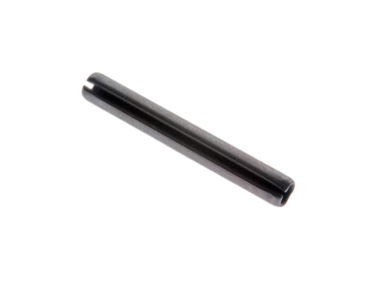

44	PAT5-03000404			PIN, CLUTCH
45	PAT5-03000400			SHAFT ASSY, PROPELLER
46	PAGB/T879.1-3.5x28			PIN 3.5x28
47	PAT5-03000403			CLUTCH, DOG
48	PAT5-03000402			SPRING, CLUTCH
49	PAT5-03000401	REC44-195133	19513 3	SHAFT, PROPELLER
50	PAT5-03000015			WASHER, REVERSE GEAR

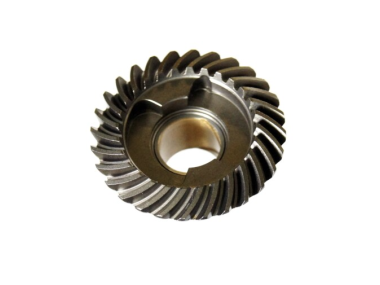

51	PAT5-03000600	REC43-8129451	812945 1	REVERSE GEAR ASSY
52	PAT5-03000500			COVER ASSY, LOWER CASING
53	PAGB/T276-6002			BEARING 6002
54	PAJASOF404 31-050			O-RING
55	PAF8-04040004	REC26-16130	16130	OIL SEAL
56	PAT5-03000501			COVER, LOWER CASING
57	PAGB/T5783-M6x20		97095-06020	BOLT M6x20
58	PAT5-03000800			CUSHION ASSY, PROPELLER SHAFT
59	PAF6-03010000			PROPELLER ASSY
60	PAGB/T96-10		16146	WASHER 10
61	PAF15-06000016	REC11-16147Q	90171-10M01, 16147	NOTCH NUT
62	PAGB/T91-3.2x18			PIN, COTTER Ø3.2x18
63	REC30-95347		30-95347	Bearing
