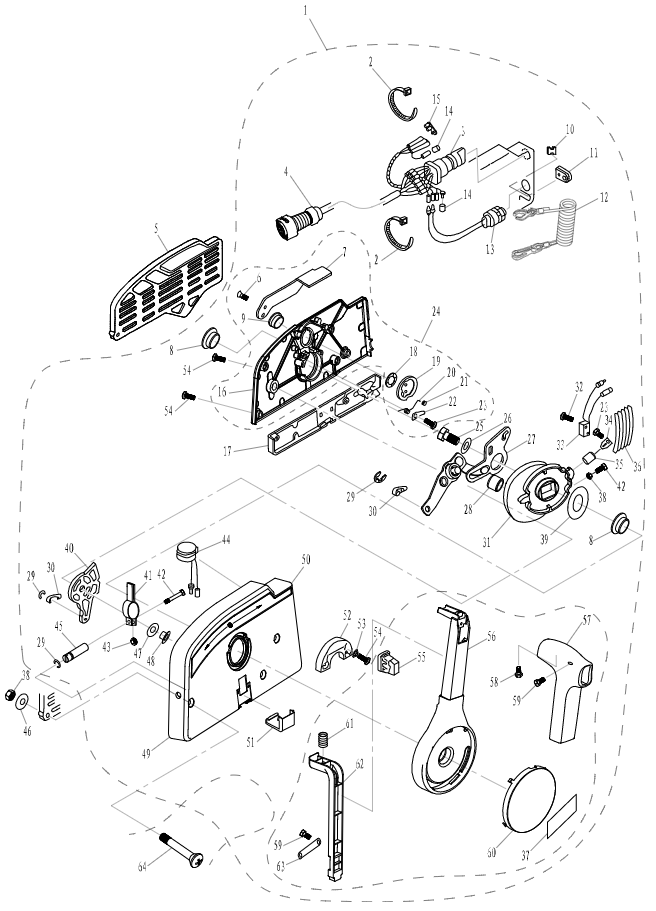

Control Box Assembly
| Nummer: |
Bestelnummer: |
Omschrijving: |
| 1 |
PAF20-13000000EFI |
CONTROL BOX ASSEMBLY |
| 2 |
PAHT2.5X60 |
CLAMP |
| 3 |
PAF20-03000400EFI |
STARTING SWICH ASSEMBLY |
| 4 |
PAT85-08010100 |
CONTROL CABLE ASSEMBLY |
| 5 |
PAF15-11000002W |
PLATE , CONTROL BOX |
| 6 |
PAGB/T819.2-M5X12 |
SCREW PAN HEAD M5X12 |
| 7 |
PAF15-13020007W |
THROTTLE HANDLE , INCHING |
| 8 |
PAF15-13000005W |
BUSH , CAM |
| 9 |
PAF15-13020006W |
BUSH , HANDLE |
| 10 |
PAF15-11000001W |
BLOCK , RUBBER |
| 11 |
PAF15-13000014W |
JACKET , CABLE |
| 12 |
PAF4-01090401 |
STOPER , HANG ROPE ASSEMBLY |
| 13 |
PAF15-13020400W |
ENGINE STOP SWICH ASSEMBLY |
| 14 |
PAF15-13000203W |
INSULATED PLUG "B" |
| 15 |
PAF15-13000202W |
INSULATED PLUG "A" |
| 16 |
PAF15-13020001W |
COVER , CONTROL BOX |
| 17 |
PAF15-13000013W |
SMALL COVER , CONTROL BOX |
| 18 |
PAF15-13020005W |
WASHER IIBU , WAVE |
| 19 |
PAF15-13020100W |
LOCKED DISK ASSEMBLY |
| 20 |
PAF15-13020002W |
TORSION SPRING |
| 21 |
PAF15-13020003W |
EACH LOCKED PULLEY |
| 22 |
PAF15-13020004W |
PLATE , PULLEY SPRING |
| 23 |
PAGB/T818-M4X6 |
PAN HEAD SCREW M4X6 |
| 24 |
PAF15-13020000W |
COVER ASSEMBLY, CONTROL BOX |
| 25 |
PAGB/T9074.14-M8X30 |
BOLT M8×30 |
| 26 |
PAGB/T97.1-8 |
WASHER 8 |
| 27 |
PAF15-13000500W |
MACHINE.CONTROL ACCELEROGRAPH |
| 28 |
PAF15-13000007W |
WASHER |
| 29 |
PAGB/T896-6 |
PIN , COTTER 8 |
| 30 |
PAF25-07000007W |
CONTROL CABLE TIE-IN "B" |
| 31 |
PAF15-13000002W |
CAM MECHANISM |
| 32 |
PAGB/T818-M3X14 |
PAN HEAD SCREW M3 X 14 |
| 33 |
PAF15-13000800W |
INCHING SWITCH |
| 34 |
PAF15-13000003W |
PLATE |
| 35 |
PAF15-13000004W |
PULLEY |
| 36 |
PAF15-13000001W |
SHIFT SPRING PLATE "B" |
| 37 |
PAF15-12000016W |
MARK 16 |
| 38 |
PAGB/T6170-M6 |
NUT M6 |
| 39 |
PAF15-13000008W |
WEARABLE PLATE.CAM MACHANISM |
| 40 |
PAF15-13000700W |
SHIFT SWING LINK |
| 41 |
PAF15-13000601W |
ADJUSTER FASTNESS ASSEMBLY |
| 42 |
PAGB/T5783-M5X25 |
BOLT M5×25 |
| 43 |
PAGB/T6170-M5 |
NUT M5 |
| 44 |
PAF15-13000300W |
BUZZER ASSEMBLY |
| 45 |
PAF15-13000602W |
ADJUSTER PIN |
| 46 |
PAGB/T5287-6 |
BIG WASHER 6 |
| 47 |
PAF15-13000006W |
WEARABLE PLATE |
| 48 |
PAF15-13000011W |
BUSH , SHIFT SWING LINK |
| 49 |
PAF15-13000012W |
BRACKET , CONTROL BOX |
| 50 |
PAF15-12000013W |
MARK 13 |
| 51 |
PAF15-13000015W |
COVER , WATERPROOF |
| 52 |
PAF15-13010010W |
BLOCK , CONTROL HANDLE |
| 53 |
PAGB/T956.1-5 |
WASHER , LOCKED 5 |
| 54 |
PAGB/T819.2-M5X18 |
SCREW, PAN HEAD M5 X 18 |
| 55 |
PAF15-13010003W |
JAM , BUTTON |
| 56 |
PAF15-13010001W |
CONTROL HANDLE |
| 57 |
PAF15-13010002W |
CONTROL HANDLEBAR |
| 58 |
PAGB/T84.5-ST4.8X12 |
SCREW, PAN HEAD ST4.8X12 |
| 59 |
PAGB/T818-M4X10 |
SCREW, PAN HEAD M4 X 10 |
| 60 |
PAF15-13010009W |
COVER , CONTROL HANDLE |
| 61 |
PAF15-13010005W |
SPRING , COMPRESSION |
| 62 |
PAF15-13010004W |
PART , ORIENTATION CONTROL |
| 63 |
PAF15-13010008W |
PLATE , ORIENTATION PART |
| 64 |
PAGB/T820-M6X90 |
SCREW, PAN HEAD M6 X 90 |
| No: |
Ref: |
Description: |
| 1 |
PAF20-13000000EFI |
CONTROL BOX ASSEMBLY |
| 2 |
PAHT2.5X60 |
CLAMP |
| 3 |
PAF20-03000400EFI |
STARTING SWICH ASSEMBLY |
| 4 |
PAT85-08010100 |
CONTROL CABLE ASSEMBLY |
| 5 |
PAF15-11000002W |
PLATE , CONTROL BOX |
| 6 |
PAGB/T819.2-M5X12 |
SCREW PAN HEAD M5X12 |
| 7 |
PAF15-13020007W |
THROTTLE HANDLE , INCHING |
| 8 |
PAF15-13000005W |
BUSH , CAM |
| 9 |
PAF15-13020006W |
BUSH , HANDLE |
| 10 |
PAF15-11000001W |
BLOCK , RUBBER |
| 11 |
PAF15-13000014W |
JACKET , CABLE |
| 12 |
PAF4-01090401 |
STOPER , HANG ROPE ASSEMBLY |
| 13 |
PAF15-13020400W |
ENGINE STOP SWICH ASSEMBLY |
| 14 |
PAF15-13000203W |
INSULATED PLUG "B" |
| 15 |
PAF15-13000202W |
INSULATED PLUG "A" |
| 16 |
PAF15-13020001W |
COVER , CONTROL BOX |
| 17 |
PAF15-13000013W |
SMALL COVER , CONTROL BOX |
| 18 |
PAF15-13020005W |
WASHER IIBU , WAVE |
| 19 |
PAF15-13020100W |
LOCKED DISK ASSEMBLY |
| 20 |
PAF15-13020002W |
TORSION SPRING |
| 21 |
PAF15-13020003W |
EACH LOCKED PULLEY |
| 22 |
PAF15-13020004W |
PLATE , PULLEY SPRING |
| 23 |
PAGB/T818-M4X6 |
PAN HEAD SCREW M4X6 |
| 24 |
PAF15-13020000W |
COVER ASSEMBLY, CONTROL BOX |
| 25 |
PAGB/T9074.14-M8X30 |
BOLT M8×30 |
| 26 |
PAGB/T97.1-8 |
WASHER 8 |
| 27 |
PAF15-13000500W |
MACHINE.CONTROL ACCELEROGRAPH |
| 28 |
PAF15-13000007W |
WASHER |
| 29 |
PAGB/T896-6 |
PIN , COTTER 8 |
| 30 |
PAF25-07000007W |
CONTROL CABLE TIE-IN "B" |
| 31 |
PAF15-13000002W |
CAM MECHANISM |
| 32 |
PAGB/T818-M3X14 |
PAN HEAD SCREW M3 X 14 |
| 33 |
PAF15-13000800W |
INCHING SWITCH |
| 34 |
PAF15-13000003W |
PLATE |
| 35 |
PAF15-13000004W |
PULLEY |
| 36 |
PAF15-13000001W |
SHIFT SPRING PLATE "B" |
| 37 |
PAF15-12000016W |
MARK 16 |
| 38 |
PAGB/T6170-M6 |
NUT M6 |
| 39 |
PAF15-13000008W |
WEARABLE PLATE.CAM MACHANISM |
| 40 |
PAF15-13000700W |
SHIFT SWING LINK |
| 41 |
PAF15-13000601W |
ADJUSTER FASTNESS ASSEMBLY |
| 42 |
PAGB/T5783-M5X25 |
BOLT M5×25 |
| 43 |
PAGB/T6170-M5 |
NUT M5 |
| 44 |
PAF15-13000300W |
BUZZER ASSEMBLY |
| 45 |
PAF15-13000602W |
ADJUSTER PIN |
| 46 |
PAGB/T5287-6 |
BIG WASHER 6 |
| 47 |
PAF15-13000006W |
WEARABLE PLATE |
| 48 |
PAF15-13000011W |
BUSH , SHIFT SWING LINK |
| 49 |
PAF15-13000012W |
BRACKET , CONTROL BOX |
| 50 |
PAF15-12000013W |
MARK 13 |
| 51 |
PAF15-13000015W |
COVER , WATERPROOF |
| 52 |
PAF15-13010010W |
BLOCK , CONTROL HANDLE |
| 53 |
PAGB/T956.1-5 |
WASHER , LOCKED 5 |
| 54 |
PAGB/T819.2-M5X18 |
SCREW, PAN HEAD M5 X 18 |
| 55 |
PAF15-13010003W |
JAM , BUTTON |
| 56 |
PAF15-13010001W |
CONTROL HANDLE |
| 57 |
PAF15-13010002W |
CONTROL HANDLEBAR |
| 58 |
PAGB/T84.5-ST4.8X12 |
SCREW, PAN HEAD ST4.8X12 |
| 59 |
PAGB/T818-M4X10 |
SCREW, PAN HEAD M4 X 10 |
| 60 |
PAF15-13010009W |
COVER , CONTROL HANDLE |
| 61 |
PAF15-13010005W |
SPRING , COMPRESSION |
| 62 |
PAF15-13010004W |
PART , ORIENTATION CONTROL |
| 63 |
PAF15-13010008W |
PLATE , ORIENTATION PART |
| 64 |
PAGB/T820-M6X90 |
SCREW, PAN HEAD M6 X 90 |
