Fuel System
| Nummer: |
Bestelnummer: |
Omschrijving: |
| 1 |
PAGB/T5783-M6X50 |
BOLT M6X50 |
| 2 |
PAGB/T96-6 |
BIG WASHER 6 |
| 3 |
PAGB/T5783-M8X16 |
BOLT M8X16 |
| 4 |
PAGB/T96-8 |
BIG WASHER 8 |
| 5 |
PAF15-05000004 |
DAMPER |
| 6 |
PAF20-05000056EFI-A |
BUSH, DAMPER |
| 7 |
PAF20-05000055EFI-A |
BUSH, OIL PUMP |
| 8 |
PAF20-05000046EFI |
DAMPER, OIL CUP |
| 9 |
PAF20-05000047EFI |
BUSH, OIL CUP |
| 10 |
PAF20-05000059EFI |
FUEL PIPE |
| 11 |
PAS7133-14 |

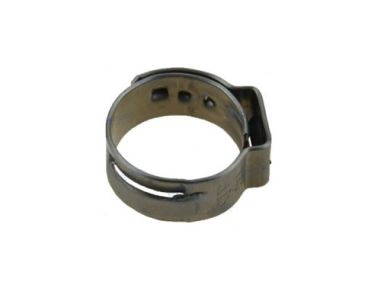

SINGLE LUG CLAMP |
| 12 |
PAF20-05000054EFI |
FUEL PIPED 6X12.5X450 |
| 13 |
PAF20-05000052 |
FUEL PIPE C 5X10X470 |
| 14 |
PAF20-05000050 |
FUEL PIPED 6X12.5X280 |
| 15 |
PAF20-05001300EFI |
PRESSURE VALVE |
| 16 |
PAF20-05000042EFI |
JACKET, PRESSURE VALVE |
| 17 |
PAF20-05000041EFI |
BRACKET, PRESSURE VALVE |
| 18 |
PAF20-05000049EFI |
FUEL PIPE |
| 19 |
PAGB/T818-M5X12 |
SCREW M5X12 |
| 20 |
PAGB/T97.1-5 |
WASHER 5 |
| 21 |
PAF20-05001000EFI |
COVER A ASSEMBLY, FUEL INJECTOR |
| 22 |
PAF20-05000050EFI |
FUEL INJECTOR |
| 23 |
PAF20-05000053 |
FUEL PIPE E 5X12.2X60 |
| 24 |
PAF20-05000062EFI |
FUEL PIPE G |
| 25 |
PAF40-05000040EI |
JOINT A, FUEL FILTER |
| 26 |
PAF40-05091100EI |
HIGH-PRESSURE FUEL FILTER |
| 27 |
PAF20-03000014EFI |
JACKET, FUEL PUMP |
| 28 |
PAF20-03000013EFI |
BRACKET, FUEL PUMP |
| 29 |
PAGB/T5783-M6X12 |
BOLT M6X12 |
| 30 |
PAGB/T9074.14-M6X20 |
BOLT M6X20 |
| 31 |
PAGB/T97.1-6 |
WASHER 6 |
| 32 |
PAGB/T6170-M6 |
NUT M6 |
| 33 |
PAF4-05000200 |
FUEL PIPE TIE-IN ASSEMBLY |
| 34 |
PAF4-05000030 |
CLIP B, FUEL PIPE |
| 35 |
PAF20-05000017 |
FUEL PIPE A 5X10X400 |
| 36 |
PAF20-00005300EFI |
FUEL FILTER ASSEMBLY |
| 37 |
PAF20-03000018 |
FUEL PIPE B 5X10X90 |
| 38 |
PAGB/13452.1-20.2X2.4 |
Q-RING 20.2X2.4 |
| 39 |
PAF20-05050000 |
FUEL PUMP ASSEMBLY |
| 40 |
PAF20-05000022 |
BOLT, FUEL PUMP |
| 41 |
PAGB/T818-M4X32 |
SCREW M4X32 |
| 42 |
PAF4-04090003 |
COVER, FUEL PUMP |
| 43 |
PAF4-04090004 |
GASKET |
| 44 |
PAF4-04090011 |
SCREW M3X6 |
| 45 |
PAF4-04090005 |
UNILATERAL PLATE |
| 46 |
PAF20-05050100 |
COVER ASSEMBLY, FUEL PUMP |
| 47 |
PAF15-04000005 |
NIPPLE ASSEMBLY |
| 48 |
PAF20-05050001 |
SHELL, FUEL PUMP |
| 49 |
PAF15-07140100 |
DIAPHRAGM ASSEMBLY |
| 50 |
PAGB/T309-3X12 |
ROLLER NEEDLE 3X12 |
| 51 |
PAF15-07140005 |
SPRING, DIAPHRAGM |
| 52 |
PAF15-07140001 |
SEAT, FUEL PUMP |
| 53 |
PAF15-07140004 |
SPRING, PLUNGER |
| 54 |
PAF15-07140003 |
PLUNGER |
| 55 |
PAGB/T6170-M4 |
NUT M4 |
| 56 |
PAF20-05000024 |
PIPE B 5X10X85 |
| 57 |
PAF20-05000026 |
TEE JOINT |
| 58 |
PAF20-05000023 |
PIPE A 5X1OX125 |
| 59 |
PAF20-05000051 |
PIPE D 5X10X250 |
| 60 |
PAF15-05000011 |
TEE JOINT |
| 61 |
PAF20-05000025 |
PIPE C 5X10X55 |
| No: |
Ref: |
Description: |
| 1 |
PAGB/T5783-M6X50 |
BOLT M6X50 |
| 2 |
PAGB/T96-6 |
BIG WASHER 6 |
| 3 |
PAGB/T5783-M8X16 |
BOLT M8X16 |
| 4 |
PAGB/T96-8 |
BIG WASHER 8 |
| 5 |
PAF15-05000004 |
DAMPER |
| 6 |
PAF20-05000056EFI-A |
BUSH, DAMPER |
| 7 |
PAF20-05000055EFI-A |
BUSH, OIL PUMP |
| 8 |
PAF20-05000046EFI |
DAMPER, OIL CUP |
| 9 |
PAF20-05000047EFI |
BUSH, OIL CUP |
| 10 |
PAF20-05000059EFI |
FUEL PIPE |
| 11 |
PAS7133-14 |
SINGLE LUG CLAMP |
| 12 |
PAF20-05000054EFI |
FUEL PIPED 6X12.5X450 |
| 13 |
PAF20-05000052 |
FUEL PIPE C 5X10X470 |
| 14 |
PAF20-05000050 |
FUEL PIPED 6X12.5X280 |
| 15 |
PAF20-05001300EFI |
PRESSURE VALVE |
| 16 |
PAF20-05000042EFI |
JACKET, PRESSURE VALVE |
| 17 |
PAF20-05000041EFI |
BRACKET, PRESSURE VALVE |
| 18 |
PAF20-05000049EFI |
FUEL PIPE |
| 19 |
PAGB/T818-M5X12 |
SCREW M5X12 |
| 20 |
PAGB/T97.1-5 |
WASHER 5 |
| 21 |
PAF20-05001000EFI |
COVER A ASSEMBLY, FUEL INJECTOR |
| 22 |
PAF20-05000050EFI |
FUEL INJECTOR |
| 23 |
PAF20-05000053 |
FUEL PIPE E 5X12.2X60 |
| 24 |
PAF20-05000062EFI |
FUEL PIPE G |
| 25 |
PAF40-05000040EI |
JOINT A, FUEL FILTER |
| 26 |
PAF40-05091100EI |
HIGH-PRESSURE FUEL FILTER |
| 27 |
PAF20-03000014EFI |
JACKET, FUEL PUMP |
| 28 |
PAF20-03000013EFI |
BRACKET, FUEL PUMP |
| 29 |
PAGB/T5783-M6X12 |
BOLT M6X12 |
| 30 |
PAGB/T9074.14-M6X20 |
BOLT M6X20 |
| 31 |
PAGB/T97.1-6 |
WASHER 6 |
| 32 |
PAGB/T6170-M6 |
NUT M6 |
| 33 |
PAF4-05000200 |
FUEL PIPE TIE-IN ASSEMBLY |
| 34 |
PAF4-05000030 |
CLIP B, FUEL PIPE |
| 35 |
PAF20-05000017 |
FUEL PIPE A 5X10X400 |
| 36 |
PAF20-00005300EFI |
FUEL FILTER ASSEMBLY |
| 37 |
PAF20-03000018 |
FUEL PIPE B 5X10X90 |
| 38 |
PAGB/13452.1-20.2X2.4 |
Q-RING 20.2X2.4 |
| 39 |
PAF20-05050000 |
FUEL PUMP ASSEMBLY |
| 40 |
PAF20-05000022 |
BOLT, FUEL PUMP |
| 41 |
PAGB/T818-M4X32 |
SCREW M4X32 |
| 42 |
PAF4-04090003 |
COVER, FUEL PUMP |
| 43 |
PAF4-04090004 |
GASKET |
| 44 |
PAF4-04090011 |
SCREW M3X6 |
| 45 |
PAF4-04090005 |
UNILATERAL PLATE |
| 46 |
PAF20-05050100 |
COVER ASSEMBLY, FUEL PUMP |
| 47 |
PAF15-04000005 |
NIPPLE ASSEMBLY |
| 48 |
PAF20-05050001 |
SHELL, FUEL PUMP |
| 49 |
PAF15-07140100 |
DIAPHRAGM ASSEMBLY |
| 50 |
PAGB/T309-3X12 |
ROLLER NEEDLE 3X12 |
| 51 |
PAF15-07140005 |
SPRING, DIAPHRAGM |
| 52 |
PAF15-07140001 |
SEAT, FUEL PUMP |
| 53 |
PAF15-07140004 |
SPRING, PLUNGER |
| 54 |
PAF15-07140003 |
PLUNGER |
| 55 |
PAGB/T6170-M4 |
NUT M4 |
| 56 |
PAF20-05000024 |
PIPE B 5X10X85 |
| 57 |
PAF20-05000026 |
TEE JOINT |
| 58 |
PAF20-05000023 |
PIPE A 5X1OX125 |
| 59 |
PAF20-05000051 |
PIPE D 5X10X250 |
| 60 |
PAF15-05000011 |
TEE JOINT |
| 61 |
PAF20-05000025 |
PIPE C 5X10X55 |
Brands
Accessories
Engines
Spare Parts
Blog

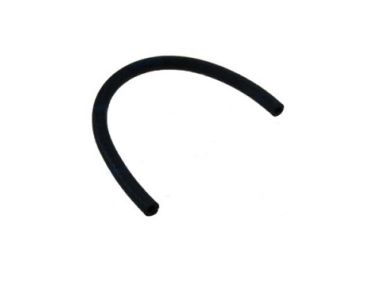

![Parsun Fuel Pipe [6 x 12.5 x 280] (PAF20-05000050)](https://www.marinespareparts.com/media/catalog/product/cache/aff0f8ae1a48c03581fcfadfec700231/1/2/120789428_365521587_43c8.jpg)
![Parsun Fuel Pipe "C"[5 x 10 x 470] (PAF20-05000052)](https://www.marinespareparts.com/media/catalog/product/cache/aff0f8ae1a48c03581fcfadfec700231/1/2/120790833_365525082_3c19.jpg)

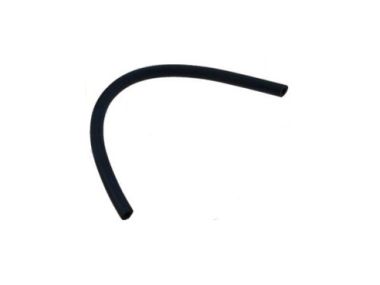

![Parsun Pipe "D"[5 x 10 x 250] (PAF20-05000051)](https://www.marinespareparts.com/media/catalog/product/cache/aff0f8ae1a48c03581fcfadfec700231/1/2/120790086_365523791_ac5e.jpg)
