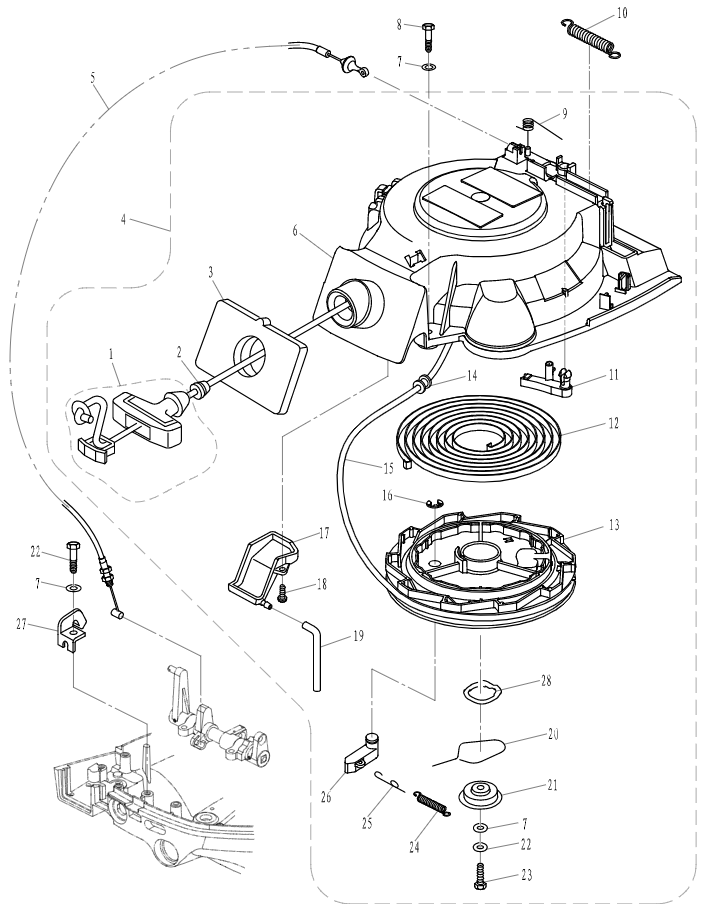

Starter Assembly
| Nummer: | Bestelnummer: | Omschrijving: |
| 1 | PAF25-05160500 | STARTER HANDLE ASSEMBLY |
| 2 | PAF25-05160021 | DAMPER, STARTER HANDLE |
| 3 | PAF20-05070003 | SEAL |
| 4 | PAF20-05070000 | STARTER ASSEMBLY |
| 5 | PAF20-05070200 | TIGHTWIRE, DETENT |
| 6 | PAF20-05070100 | CASING, STARTER |
| 7 | PAGB/T97.1-6 | WASHER 6 |
| 8 | PAGB/T9074.14-M6X25 | BOLT M6X25 |
| 9 | PAF15-07130106 | SPRING, DETENT |
| 10 | PAF15-05000029 | SPRING, DETENT TIGHTWIRE |
| 11 | PAF15-07130105 | DETENT |
| 12 | PAF15-07130107 | SPRING, VOLUTE |
| 13 | PAF15-07130201 | WHELL, START-UP |
| 14 | PAF4-04130013 | MEATUS, START ROPE |
| 15 | PAF15-07130205 | ROPE, STARTER (Ø5.5X1.8M) |
| 16 | PAGB/T896-8 | CIRCLIP 8 |
| 17 | PAF20-05070001 | COVER |
| 18 | PAGB/T845-ST4.2X16 | SCREW ST4.2X16 |
| 19 | PAF20-05070002 | PIPE Ø5XØ10X200 |
| 20 | PAF15-07130002 | CLIP, PLATE |
| 21 | PAF20-05070004 | PLATE, DRIVE |
| 22 | PAGB/T93-6 | SPRING WASHER 6 |
| 23 | PAGB/T5783-M6X16 | BOLT M6X16 |
| 24 | PAF15-07130203 | SPRING |
| 25 | PAF15-07130204 | LINK ROD |
| 26 | PAF15-07130202 | PAWL, DRIVE |
| 27 | PAF20-05000030 | FIXATION PALTE |
| 28 | PAT15-04070007 | WAHSER, START WHEEL |
-
Yamaha / Parsun Return Spring (66T-15731-00-00)As low as €5.95 €4.92
-
Parsun/Yamaha PLATE, DRIVE F15 & F20 (68T-15716-00)As low as €9.95 €8.22
-
Parsun/Yamaha COVER F15 & F20 (6AH-15782-00-00)As low as €9.95 €8.22
-
Yamaha / Parsun STARTER ASSY F15 & F20 (6AH-15710-01-00)As low as €325.00 €268.60
-
Yamaha / Mercury / Parsun Starter Rope 6 to 50 HP (90890-44373-00 / 12066A9)As low as €31.95 €26.40
-
Yamaha/Parsun Spring, Arrester (66T-15734-00)As low as €5.95 €4.92
-
Yamaha/Parsun Arrester (66T-15794-00)As low as €6.95 €5.74
-
Yamaha / Parsun Start-up Wheel / Drum Sheave 8 / 9,9 / 15 / 20 HP (63V-15714-00)As low as €37.95 €31.36
-
Yamaha / Parsun Spring Washer 6 (92995-06100)As low as €4.95 €4.09
-
Yamaha/Parsun Meatus, Start Rope (63V-15764-00)As low as €8.95 €7.40
-
Yamaha / Mercury / Parsun Bolt M6x16 (PAGB/T5783-M6x16)As low as €4.95 €4.09
-
Yamaha / Mercury / Tohatsu / Parsun Starter Spring 6 to 20 HP (63V-15713-00)As low as €44.95 €37.15
-
Yamaha Starter Handle 9.9D/15D 25NE/20DM (689-15755-00)As low as €12.95 €10.70
-
Yamaha Flange Bolt (90105-06037-00)As low as €4.95 €4.09
-
Circlip 8 mm (PAGB/T896-8)€4.95 €4.09
-
Parsun EFI Washer (PAT15-04070007)€6.95 €5.74
| No: | Ref: | Description: |
| 1 | PAF25-05160500 | STARTER HANDLE ASSEMBLY |
| 2 | PAF25-05160021 | DAMPER, STARTER HANDLE |
| 3 | PAF20-05070003 | SEAL |
| 4 | PAF20-05070000 | STARTER ASSEMBLY |
| 5 | PAF20-05070200 | TIGHTWIRE, DETENT |
| 6 | PAF20-05070100 | CASING, STARTER |
| 7 | PAGB/T97.1-6 | WASHER 6 |
| 8 | PAGB/T9074.14-M6X25 | BOLT M6X25 |
| 9 | PAF15-07130106 | SPRING, DETENT |
| 10 | PAF15-05000029 | SPRING, DETENT TIGHTWIRE |
| 11 | PAF15-07130105 | DETENT |
| 12 | PAF15-07130107 | SPRING, VOLUTE |
| 13 | PAF15-07130201 | WHELL, START-UP |
| 14 | PAF4-04130013 | MEATUS, START ROPE |
| 15 | PAF15-07130205 | ROPE, STARTER (Ø5.5X1.8M) |
| 16 | PAGB/T896-8 | CIRCLIP 8 |
| 17 | PAF20-05070001 | COVER |
| 18 | PAGB/T845-ST4.2X16 | SCREW ST4.2X16 |
| 19 | PAF20-05070002 | PIPE Ø5XØ10X200 |
| 20 | PAF15-07130002 | CLIP, PLATE |
| 21 | PAF20-05070004 | PLATE, DRIVE |
| 22 | PAGB/T93-6 | SPRING WASHER 6 |
| 23 | PAGB/T5783-M6X16 | BOLT M6X16 |
| 24 | PAF15-07130203 | SPRING |
| 25 | PAF15-07130204 | LINK ROD |
| 26 | PAF15-07130202 | PAWL, DRIVE |
| 27 | PAF20-05000030 | FIXATION PALTE |
| 28 | PAT15-04070007 | WAHSER, START WHEEL |
