Bottom Cowling
| Nummer: |
Bestelnummer: |
Yamaha OEM: |
Omschrijving: |
| 1 |
PAF25-03000101W |
6DR-12572-00 |
ADAPTER / JAM |
| 2 |
PAF25-03000102W |
6R3-12583-00 |

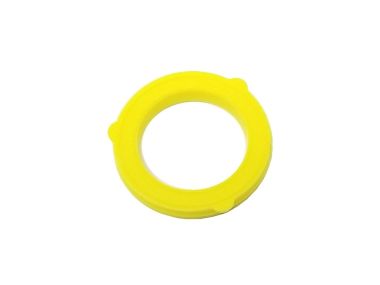

HOSE JOINT GASKET |
| 3 |
PAF25-03000103W |
6R3-12582-00 |
HOSE JOINT |
| 4 |
PAF25-03000104W |
6R3-12581-00 |
HOSE JOINT NUT |
| 5 |
PAF25-03000100W |
- |
JAM ASSEMBLY |
| 6 |
PAF20-03000010 |
6AH-12535-00 |

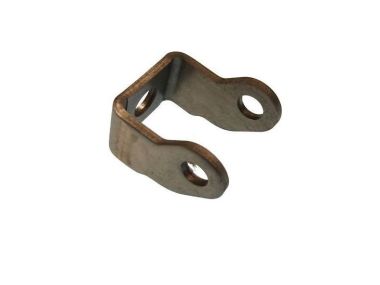

JAM SUPPORT PLATE |
| 7 |
PAGB/T84.5-ST5.5x19 |
90167-06002 |
SCREW ST5.5x19 |
| 8 |

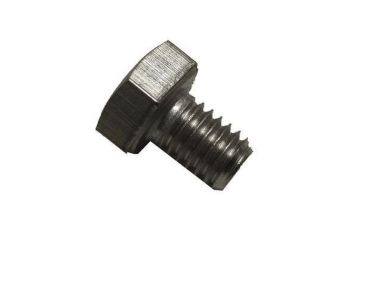

PAGB/T5783-M6x8 |
- |
BOLT M6x8 |
| 9 |
PAGB/T97.1-6 |
92990-06600 |
WASHER 6 |
| 10 |
PAF20-03000007 |
6AH-42738-00-8D |
COWLING COVER |
| 11 |
PAF20-03000011 |
6AH-24314-01 |
PIPE Ø6xØ11x680 |
| 12 |
PAGB/T5783-M6x30 |
90109-06M82 |
BOLT M6x30 |
| 13 |
PAF20-03000005 |
6AH-42724-00 |
SQUARE SEAL/GROMMET |
| 14 |
PAF20-03000004 |
6AH-42726-00 |
RUBBER SEAL/GROMMET |
| 15 |
PAF20-03000006 |
6AH-42725-00 |
RUBBER PLUG |
| 16 |
PAF20-03000101 |
6FM-83589-00 |
SEAL/GASKET |
| 17 |
PAGB/T818-M6x16 |
98580-06016 |
PAN HEAD SCREW M6x16 |
| 18 |
PAF20-03000100 |
62Y-84301-00 |
PILOT LIGHT ASSEMBLY |
| 19 |
PAGB/T5783-M6x30 |
90109-06M82 |
BOLT M6x30 |
| 20 |
PAF25-00000004 |
- |
WASHER |
| 21 |
PAF25-03000006 |
90480-09M12 |
GROMMET/DAMPER |
| 22 |
PAF25-03000007 |
90387-06M69 |

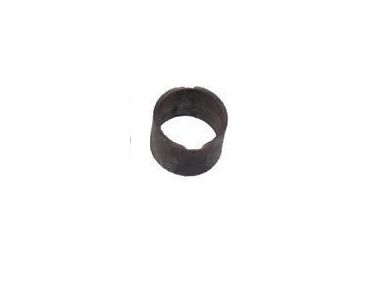

DAMPER BUSHING |
| 23 |
PAF20-03000003 |
6AH-26326-00 |
JACKET |
| 24 |
PAF2.6-05000004 |
6G1-42725-00 |
CIRCULAR RUBBER PLUG |
| 25 |
PAF15-05000006 |
65W-42726-00 |

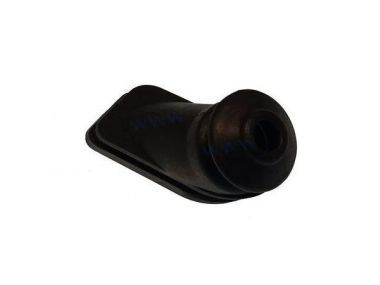

WAVE SHEATH/GROMMET |
| 26 |
PAF20-03000008 |
6AH-42727-00 |
GEAR SHIFT LINK ROD JACKET |
| 27 |
PAF20-03000001 |
- |
BOTTOM COWLING |
| 28 |
PAF15-05000009 |
6BL-44391-00 |
PLASTIC WATER NIPPLE |
| 29 |

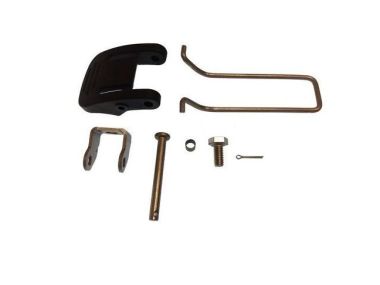

PAF20-03020000 |
- |
TOP COWLING LOCKING HOOK ASSY |
| 30 |
PAF20-03020002 |
- |
LOCKING HOOK BODY |
| 31 |
PAF20-03020004 |
- |
LOCKING HOOK STEEL WIRE |
| 32 |
PAF20-03020005 |
- |
LOCKING HOOK BUSH |
| 33 |
PAF20-03020001 |
- |
LOCKING HOOK SEAT |
| 34 |
PAGB/T5783-M6x12 |
97080-06012 |
BOLT M6x16 |
| 35 |
PAGB/T91-Ø1.6x12 |
91490-16010 |
COTTER PIN Ø1.6x12 |
| 36 |
PAF20-03020003 |
- |
LOCKING HOOK SHAFT |
| 37 |
PAGB/T889.1-M6 |
- |
LOCKING NUT M6 |
| 38 |
PAGB/T5783-M6x20 |
65W-12228-00 |
BOLT M6x20 |
| 39 |
PAF20-03000002 |
6AH-42716-00 |
RUBBER SEAL |
| 40 |
PAF20-00000011 |
6AH-42741-00 |
UPPER CASING COVER/APRON |
| 41 |
PAGB/T6170-M6 |
95380-06600 |
NUT HEXAGON M6 |
| 42 |
PAGB/T93-6 |
92995-06100 |
SPRING WASHER 6 |
| 43 |
PAGB/T818-M6x30 |
97885-06030 |
SCREW M6x30 |
| 44 |
PAF20-03000007W |
- |

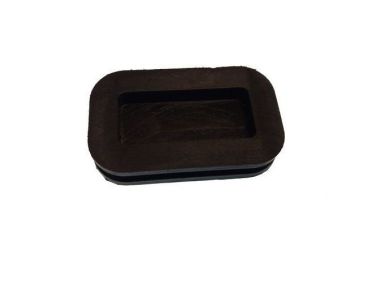

SQUARE RUBBER PLUG |
| 45 |
PAF20-03000005W |
- |
SQUARE RUBBER SEAL |
| 46 |
PAF20-03000006W |
- |
RUBBER PLUG |
| 47 |
PAF25-03000024W |
65W-42726-10 |
JAM “B” |
