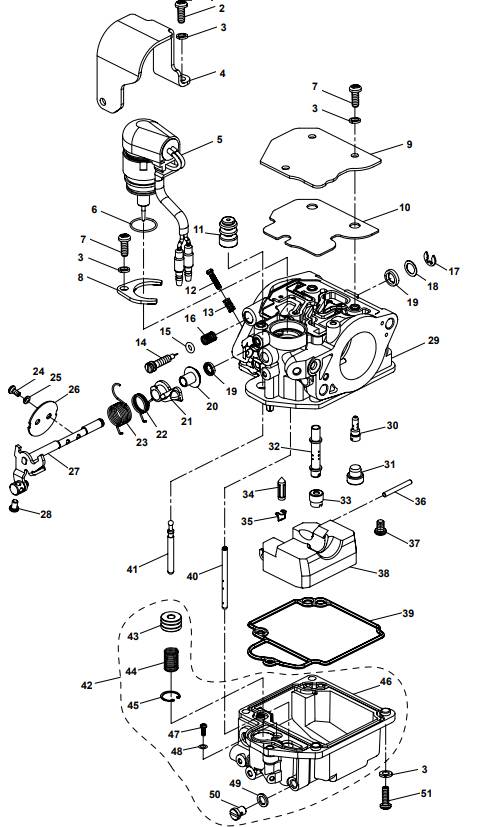

Carburetor Assembly
| Nummer: |
Bestelnummer: |
OEM: |
Omschrijving: |
Aantal: |
| 1 |
PAF20-05080000 |
|
CARBURETOR ASSY |
1 |
| 2 |
PAGB/T818-M4x12 |
|
SCREW M4x12 |
2 |
| 3 |
PAGB/93-4 |
|
SPRING WASHER |
10 |
| 4 |
PAF20-05080026 |
|
COVER |
1 |
| 5 |
PAF20-05080200 |
|
VALVE ASSY |
1 |

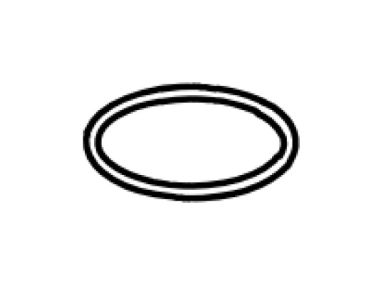

| 6 |
PAF20-05080201 |
|
O-RING |
1 |
| 7 |
PAFBG/T818-M4x10 |
|
SCREW M4x10 |
4 |
| 8 |
PAF20-05080016 |
|
PLATE, VALVE |
1 |
| 9 |
PAF20-05080003 |
|
PLATE |
1 |
| 10 |
PAF20-05080002 |
|
GASKET |
1 |
| 11 |
PAF20-05080004 |
|
COVER, RUBBER |
1 |
| 12 |
PAF20-05080011 |
|
SCREW TOP |
1 |
| 13 |
PAF20-05080012 |
|
SPRING |
1 |
| 14 |
PAF20-05080013 |
|
SCREW, AIR ADJUST |
1 |
| 15 |
PAF20-05080014 |
|
O-RING |
1 |
| 16 |
PAF20-05080015 |
|
SPRING |
1 |
| 17 |
PAGB/T896-4 |
|
CIRCLIP 4 |
1 |
| 18 |
PAF20-05080027 |
|
WASHER |
1 |
| 19 |
PAF20-05080006 |
|
GASKET |
2 |
| 20 |
PAF20-05080008 |
|
BUSH |
1 |
| 21 |
PAF20-05080009 |
|
SWING LINK, VALVE |
1 |
| 22 |
PAF20-05080010 |
|
TWIST SPRING |
1 |
| 23 |
PAF20-05080005 |
|
TWIST SPRING |
1 |
| 24 |
PAGB/T818-M3x6 |
|
SCREW M3x6 |
2 |
| 25 |
PAGB/T93-3 |
|
SPRING WASHER 3 |
2 |
| 26 |
PAF20-05080007 |
|
APRON, ACCELERATOR |
1 |
| 27 |
PAF20-05080100 |
|
ACCELERATOR |
1 |
| 28 |
PAGB/T818-M4x6 |
|
SCREW M4x6 |
1 |
| 29 |
PAF20-05080001 |
|
CARBURETOR |
1 |
| 30 |
PAF20-05080022 |
|
JET, AIR SLOW |
1 |
| 31 |
PAF20-05080023 |
|
CAP, RUBBER |
1 |
| 32 |
PAF20-05080020 |
|
JER, MAIN |
1 |
| 33 |
PAF20-05080021 |
|
NOZZLE MAIN |
1 |
| 34 |
PAF20-05080017 |
|
NEEDLE VALVE |
1 |
| 35 |
PAF20-05080025 |
|
CLIP, NEEDLE VALVE |
1 |
| 36 |
PAF20-05080019 |
|
PIN, FLOAT |
1 |
| 37 |
PAGB/T818-M3x8 |
|
SCREW M3x8 |
1 |
| 38 |
PAF20-05080018 |
|
FLOAT |
1 |
| 39 |
PAF20-05080024 |
|
GASKET, FLOAT |
1 |
| 40 |
PAF20-05080028 |
|
JET |
1 |
| 41 |
PAF20-05080004 |
|
ROD |
1 |
| 42 |
PAF20-05080300 |
|
FLOAT CHAMBER |
1 |
| 43 |
PAF20-05080302 |
|
PLUNGER |
1 |
| 44 |
PAF20-05080301 |
|
SPRING, PLUNGER |
1 |
| 45 |
PAGB/T893.1-8 |
|
CLIP 8 |
1 |
| 46 |
PAF20-05080305 |
|
FLOAT CHAMBER |
1 |
| 47 |
PAGB/T818-M2x4 |
|
SCREW M2x4 |
1 |
| 48 |
PAGB/T96-2 |
|
BIG WASHER 2 |
1 |
| 49 |
PAF20-05080304 |
|
WASHER |
1 |
| 50 |
PAF20-05080303 |
|
SCREW, OIL OUTLET |
1 |
| 51 |
PAGB/T818-M4x16 |
|
SCREW M4x16 |
4 |
