Control System
| Nummer: |
Bestelnummer: |
Yamaha OEM: |
Omschrijving: |
| 1 |
PAF25-05000008 |
65W-41211-00 |
ACCELERATOR LINK ROD |
| 2 |
PAF15-07000016 |
6J8-41262-00 |
JOINT CONTROL LINK |
| 3 |
PAGB/T5782-M6x55 |
97595-06555 |
BOLT M6x55 |
| 4 |
PAGB/T96-6 |
90201-06M31 |
BIG WASHER 6 |
| 5 |
PAF15-07000012 |
90387-06139 |
ACCELEROGRAPH ENFORCE BUSH |
| 6 |
PAF15-07000014 |
65W-41283-00 |
PASSIVITY PULLEY |
| 7 |
PAF20-05060001 |
6AH-41638-00 |
DRIVE PULLEY |
| 8 |
PAF20-05060002 |
90508-20M44 |
TORSION SPRING |
| 9 |
PAF20-05060101 |
- |
ACCELEROGRAPH FIXATION PLATE |
| 10 |
PAGB/T5783-M6x14 |
97095-06014 |
BOLT M6x14 |
| 11 |
PAF20-05060102 |
6AH-14497-00 |
THROTTLE CABLE FIXATION PLATE |
| 12 |
PAGB/T5783-M6x10 |
97095-06010 |
BOLT M6x10 |
| 13 |
PAF20-03010001 |
6AH-44125-00 |
GEAR SHIFT ROCKER ARM |
| 14 |
PAGB/T879.1-Ø3x20 |
90254-03M05 |
PIN Ø3x20 |
| 15 |
PAGB/T5783-M6x25 |
90119-06M88 |
BOLT M6x25 |
| 16 |
PAGB/T97.1-6 |
92990-06600 |
WASHER 6 |
| 17 |
PAF15-05040002 |
6F5-41662-00 |
SHIFT ROD BRACKET |
| 18 |
PAF20-03010100 |
6AH-44121-01 |
GEAR SHIFT ASSEMBLY |
| 19 |
PAGB/T5783-M6x20 |
65W-12228-00 |
BOLT M6x20 |
| 20 |
PAF15-05000031 |
66R-44114-00 |
SPRING PLATE |
| 21 |
PAF15-05000032 |
65W-44116-00 |
PRESSING PLATE |
| 22 |
PAF20-03010200 |
6AH-44123-00 |
SHIFT ROD ARM |
| 23 |
PAF15-00000012 |
90468-18008 |
CLIP Ø1.8 |
| 24 |
PAF20-03000009L |
6AH-44143-10 |
SHIFT ROD (LONG) |
| 24 |
PAF20-03000009S |
6AH-44143-00 |
SHIFT ROD (SHORT) |
| 25 |
PAF15-05000035 |
61N-44146-00 |
COLUMNAR NUT |
| 26 |
PAGB/T6170-M6 |
95380-06600 |
NUT M6 |
| 27 |
PAF20-03000012W |
6AH-48531-00 |
FIXATION PLATE 'A' |
| 28 |
PAGB/T5783-M6x16 |
90105-06M14 |
BOLT M6x16 |
| 29 |
PAF25-07000005W |
663-48344-00 |
CABLE CONNECTION |
| 30 |
PAF20-03000200W |
- |
REMOTE CONTROL BRACKET ASSY |
| 31 |
- |
91690-30012 |
PIN Ø3x12 |
| 32 |
- |
682-48538-50 |
CABLE CLAMP |
| 33 |
- |
6AH-48532-00 |
REMOTE CONTROL BRACKET |
| 34 |
PAF20-03000203W |
90480-19031 |
RUBBER RING |
| 35 |
PAF25-07000006W |
90185-09M01 |
LOCKET NUT 3/8'' |
| 36 |
PAGB/T97.1-10 |
90201-10M63 |
WASHER 10 |
| 37 |
PAF20-07000100W |
6AH-61350-00 |
STEERING ROD ASSY |
| 38 |
PAF20-07000101W |
- |
STEERING ROD |
| 39 |
PAF15-11020002W |
6E5-61355-00 |
BOLT |
| 40 |
PAF25-07000303W |
90387-10M42 |
BOLT TUBE/BUSH |
| 41 |
PAF25-07000304W |
90170-09M03 |
NUT 3/8'' |
| 42 |
PAGB/T889.1-M8 |
95780-08300 |

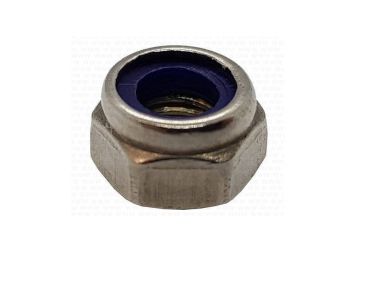

LOCKNUT M8 |
| 43 |
PAF20-07000102W |
99999-02878 |
STEERING BRACKET |
| 44 |
PAGB/T97.1-8 |
92990-06600 |
WASHER 8 |
| 45 |
PAGB/T5783-M8x25 |
98980-08025 |
BOLT M8x25 |
| 46 |
PAF25-07000200W |
- |
CONTROL CABLE ASSEMBLY |
