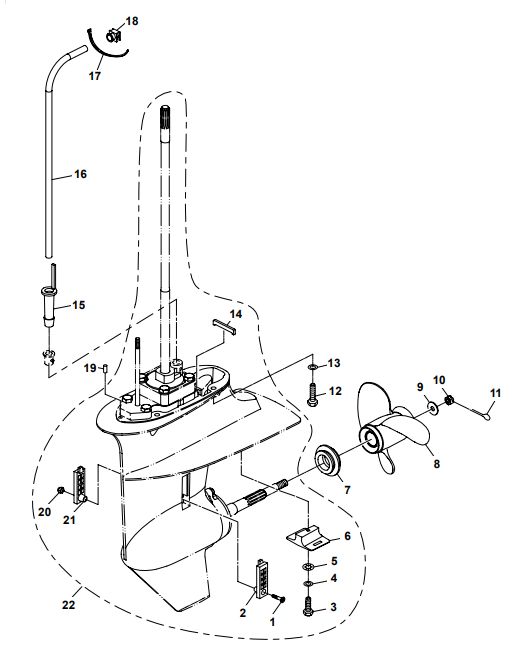

Lower Casing & Drive 2

Nummer: Bestelnummer: Yamaha OEM: Omschrijving:
1 PAGB/T820-M5x20 90152-05011 SCREW M5x20
2 PAF15-06000003 6G1-45214-00 WATER INLET B
3 PAGB/T5783-M6x30 95895-06035-00 BOLT M6x30
4 PAGB/T97.1-6 92990-06600-00 WASHER 6
5 PAGB/T861.1-6 92990-06300-00 WASHER, LOCKING 6
6 PAF15-06000004 6AH-45251-00-00 ANODE
7 PAF15-06000015 6E7-45987-01 PROPELLER SPACER
8 PAF15-06090000 63V-45943-10 PROPELLER ASSEMBLY
9 PAGB/T96-10 90201-10M01 BIG WASHER 10
10 PAF15-06000016 90171-10M01 PROP NUT
11 PAGB/T91-2.5x20 91490-30020 COTTER PIN 2.5x20
12 PAGB/T5783-M8x30 97575-08530 BOLT M8x30
13 PAGB/T97.1-8 92990-06600 WASHER 8
14 PAF15-06020005 63V-45375-00 RUBBER SEAL
15 PAF20-02000005 6AH-44368-00 WATER TUBE RUBBER PLUG
16 PAF20-02000101L 6AH-44361-11 WATER TUBE (LONG)
  PAF20-02000101S 6AH-44361-01 WATER TUBE (SHORT)
17 PAHT-2.5x50 90465-11M10 CABLE TIES 2.5x50
18 PAF20-02000007 6AH-44365-00 WATER TUBE RUBBER SEAL
19 PAF15-00000013 93604-10M03 DOWEL PIN Ø4x12
20 PAGB/T6182-M5 90185-05904 LOCKING NUT M5
21 PAF15-06000002 63V-45215-00 WATER INLET A
22 PAF20-04000000L 6AH-45300-12-8D LOWER CASING ASSY (L)
  PAF20-04000000S 6AH-45300-01-8D LOWER CASING ASSY (S)
View as Grid List

20 Items

per page
Set Descending Direction
  1. Add to Wish List
    Yamaha / Mercury / Parsun Cotter Pin (2.5 X 20) 9.9 / 15 / 20 / 25 / 25C / 30C / 40 / 50 HP (91490-30030-00)
    Yamaha / Mercury / Parsun Cotter Pin (2.5 X 20) 9.9 / 15 / 20 / 25 / 25C / 30C / 40 / 50 HP (91490-30030-00)
    As low as €4.95 €4.09
  2. Add to Wish List
    Yamaha / Parsun Propeller Assembly (diameter: 9-1/4, pitch: 11) (63V-45943-10)
    Yamaha / Parsun Propeller Assembly (diameter: 9-1/4, pitch: 11) (63V-45943-10)
    €79.95 €66.07
  3. Add to Wish List
    Yamaha / Parsun Lower Casing Assembly (Short) (6AH-45300-01-8D)
    Yamaha / Parsun Lower Casing Assembly (Short) (6AH-45300-01-8D)
    As low as €750.00 €750.00
  4. Add to Wish List
    Yamaha / Parsun Lower Casing Assembly (Long) (6AH-45300-12-8D)
    Yamaha / Parsun Lower Casing Assembly (Long) (6AH-45300-12-8D)
    As low as €750.00 €750.00
  5. Add to Wish List
    Yamaha / Parsun Locking Nut M5 (90185-05904)
    Yamaha / Parsun Locking Nut M5 (90185-05904)
    As low as €4.95 €4.09
  6. Add to Wish List
    Yamaha / Parsun Water Tube Rubber Plug (6AH-44368-00)
    Yamaha / Parsun Water Tube Rubber Plug (6AH-44368-00)
    As low as €7.95 €6.57
  7. Add to Wish List
    Yamaha / Parsun Water Tube (Short) (6AH-44361-01)
    Yamaha / Parsun Water Tube (Short) (6AH-44361-01)
    As low as €65.95 €54.50
  8. Add to Wish List
    Yamaha / Parsun Water Tube (Long) (6AH-44361-11)
    Yamaha / Parsun Water Tube (Long) (6AH-44361-11)
    As low as €65.95 €54.50
  9. Add to Wish List
    Yamaha / Parsun Water Inlet Cover (63V-45215-00-00)
    Yamaha / Parsun Water Inlet Cover (63V-45215-00-00)
    As low as €6.95 €5.74
  10. Add to Wish List
    Yamaha / Parsun Water Inlet Cover (6G1-45214-00-00)
    Yamaha / Parsun Water Inlet Cover (6G1-45214-00-00)
    As low as €5.95 €4.92
  11. Add to Wish List
    Yamaha / Parsun Screw M5x20 (90152-05011)
    Yamaha / Parsun Screw M5x20 (90152-05011)
    As low as €4.95 €4.09
  12. Add to Wish List
    Yamaha/Mercury/Parsun Washer 10 Propeller RVS Nut Ring / Spacer (90201-10M01)
    Yamaha/Mercury/Parsun Washer 10 Propeller RVS Nut Ring / Spacer (90201-10M01)
    As low as €4.95 €4.09
  13. Add to Wish List
    Yamaha/Mercury/Mariner/Tohatsu/Parsun Prop Nut 4 - 20 HP (90171-10M01)
    Yamaha/Mercury/Mariner/Tohatsu/Parsun Prop Nut 4 - 20 HP (90171-10M01)
    As low as €12.95 €10.70
  14. Add to Wish List
    Yamaha/Tohatsu/Suzuki/Parsun Bolt M8x30 (97575-08530)
    Yamaha/Tohatsu/Suzuki/Parsun Bolt M8x30 (97575-08530)
    As low as €4.95 €4.09
  15. Add to Wish List
    Yamaha / Parsun Rubber Seal 6-20 HP (63V-45375-00)
    Yamaha / Parsun Rubber Seal 6-20 HP (63V-45375-00)
    As low as €5.95 €4.92
  16. Add to Wish List
    Yamaha / Parsun Water Tube Rubber Seal (6AH-44365-00)
    Yamaha / Parsun Water Tube Rubber Seal (6AH-44365-00)
    As low as €4.95 €4.09
  17. Add to Wish List
    Yamaha / Parsun Spacer (Intermediate ring for Propeller) 9.9/15/20 HP (6E7-45978-01)
    Yamaha / Parsun Spacer (Intermediate ring for Propeller) 9.9/15/20 HP (6E7-45978-01)
    As low as €25.95 €21.45
  18. Add to Wish List
    Yamaha/Parsun Cable Tie / Clamp 2.5X50 (90465-10098)
    Yamaha/Parsun Cable Tie / Clamp 2.5X50 (90465-10098)
    €4.95 €4.09
  19. Add to Wish List
    Mercury / Parsun Lock Washer 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (PAGB / T861.1-6)
    Mercury / Parsun Lock Washer 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (PAGB / T861.1-6)
    €4.95 €4.09
  20. Add to Wish List
    Yamaha Anode 8 / 9.9 / 15 / 25 / 30 HP / T60TLR (Zinc / Aluminum) (61N-45251-01)
    Yamaha Anode 8 / 9.9 / 15 / 25 / 30 HP / T60TLR (Zinc / Aluminum) (61N-45251-01)
    As low as €15.95 €13.18
View as Grid List

20 Items

per page
Set Descending Direction

Number: Order number: Yamaha OEM: Description:
1 PAGB/T820-M5x20 90152-05011 SCREW M5x20
2 PAF15-06000003 6G1-45214-00 WATER INLET B
3 PAGB/T5783-M6x30 95895-06035-00 BOLT M6x30
4 PAGB/T97.1-6 92990-06600-00 WASHER 6
5 PAGB/T861.1-6 92990-06300-00 WASHER, LOCKING 6
6 PAF15-06000004 6AH-45251-00-00 ANODE
7 PAF15-06000015 6E7-45987-01 PROPELLER SPACER
8 PAF15-06090000 63V-45943-10 PROPELLER ASSEMBLY
9 PAGB/T96-10 90201-10M01 BIG WASHER 10
10 PAF15-06000016 90171-10M01 PROP NUT
11 PAGB/T91-2.5x20 91490-30020 COTTER PIN 2.5x20
12 PAGB/T5783-M8x30 97575-08530 BOLT M8x30
13 PAGB/T97.1-8 92990-06600 WASHER 8
14 PAF15-06020005 63V-45375-00 RUBBER SEAL
15 PAF20-02000005 6AH-44368-00 WATER TUBE RUBBER PLUG
16 PAF20-02000101L 6AH-44361-11 WATER TUBE (LONG)
  PAF20-02000101S 6AH-44361-01 WATER TUBE (SHORT)
17 PAHT-2.5x50 90465-11M10 CABLE TIES 2.5x50
18 PAF20-02000007 6AH-44365-00 WATER TUBE RUBBER SEAL
19 PAF15-00000013 93604-10M03 DOWEL PIN Ø4x12
20 PAGB/T6182-M5 90185-05904 LOCKING NUT M5
21 PAF15-06000002 63V-45215-00 WATER INLET A
22 PAF20-04000000L 6AH-45300-12-8D LOWER CASING ASSY (L)
  PAF20-04000000S 6AH-45300-01-8D LOWER CASING ASSY (S)
