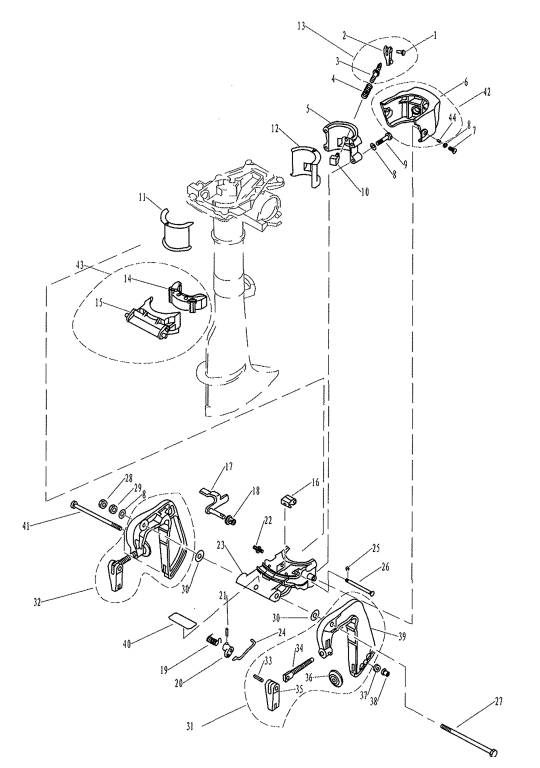

Bracket
| Nummer: |
Bestelnummer: |
Yamaha OEM: |
Omschrijving: |
| 1 |
GB/T875-86 |
90266-04M05 |
RIVET |
| 2 |
PAF4-01060002 |
68D-G2561-01, 6EE-G25610000 |
CLAMP HANDLE |
| 3 |
PAF2.6-01050101 |
69M-42529-00, 6EGG-252900 |
LOCKED SCREW |
| 4 |
PAF2.6-01050002 |
90501-12803 |
SPRING |
| 5 |
PAF2.6-01050001 |
69M-G3312-00-4D |
COVER, SWIVEL BRACKET |
| 6 |
PAF2.6-00000101 |
69M-G3318-00-00 |
COVER, BRACKET |
| 7 |
PAGB/T818-2000 |
|
SCREW, PAN HEAD |
| 8 |
PAGB/T97.1-85 |
66M-11327-00-94 |
WASHER |
| 9 |
PAGB/T5783-2000 |
68D-E5362-00 |
BOLT |
| 10 |
PAF2.6-01050200 |
69M-42528-00 |
LOCKED BLOCK ASSY |
| 11 |
PAF2.6-01000003 |
69M-G2537-00 |
BUSHING A |
| 12 |
PAF2.6-01000004 |
69M-G2538-00 |
BUSHING B |
| 13 |
PAF2.6-01050100 |
|
LOCKED HANDLE ASSY |
| 14 |
PAF2.6-01040100 |
69M-44557-00 |
DAMPER |
| 15 |
PAF2.6-01040001 |
69M-G3351-00 |
BRACKET, THRUST RECEIVE |
| 16 |
PAF2.6-01030007 |
69M-G3186-00, 6EGG-318600 |
LEVER |
| 17 |
PAF2.6-01030100 |
69M-43180-00 |
TILT CLAMP HANDLE ASSY |
| 18 |
PAF4-01090006 |
90386-08032 |
BUSHING |
| 19 |
PAF2.6-01030003 |
69M-G3188-00-00 |
SPRING |
| 20 |
PAF2.6-01030004 |
69M-G3185-00-00 |
LEVER,TILT LOCK |
| 21 |
PAGB/T879.2-2000 |
91609-25014 |
PIN |
| 22 |
PAGB/T7940.1-95 |
93700-06M03-00 |
NIPPLE, GREASE |
| 23 |
PAF2.6-01030001 |
69M-G3311-00-4D |
BRACKET, SWIVEL |
| 24 |
PAF2.6-01030005 |
69M-G3164-00-00 |
ROD, TILT LOCK |
| 25 |
PAGB/T896-86 |
93430-06005 |
CLIP |
| 26 |
PAF2.6-01030006 |
69M-G3166-00, 6EGG-316600 |
PIN |
| 27 |
PAF2.6-01000001 |
90101-08M07 |
BOLT |
| 28 |
PAGB/T6172.1-85 |
95380-08700 |
NUT |
| 29 |
PAGB/T6170-85 |
95380-08600 |
NUT |
| 30 |
PAGB/T96-1985 |
|
WASHER |
| 31 |
PAF2.6-01010000 |
69M-G3111-00-4D |
BRACKET LEFT ASSY |
| 32 |
PAF2.6-01020000 |
69M-G3112-00-4D |
BRACKET RIGHT ASSY |
| 33 |
PAF4-01010005 |
90243-04M01 |
RIVET |
| 34 |
PAF4-01010002 |
6E0-43116-01-00 |
CLAMP BOLT |
| 35 |
PAF4-01010004 |
6L8-G3118-01 |
CLAMP SHIPBOARD HANDLE |
| 36 |
PAF4-01010003 |
620-43114-00, 648-43114-01 |
CLAMP PLATE |
| 37 |
PAF2.6-01000002 |
90201-06040 |
BUSH, BOLT |
| 38 |
PAGB/T889.1-2000 |
95780-06300-00 |
NUT |
| 39 |
PAF2.6-01010001 |
69M-G3111-00-4D |
BRACKET,CLAMP(LEFT) |
| 40 |
PAF2.6-07000009 |
|
MARK 9 |
| 41 |
PAGB/T5782-2000 |
90101-06030-00 |
BOLT |
| 42 |
PAF2.6-00000100 |
69M-G3318-00 |
BRACKET,COVER ASSY |
| 43 |
PAF2.6-01040000 |
|
THRUST RECEIVE ASSY |
| 44 |
PAF2.6-00000102 |
|
BUSH |
