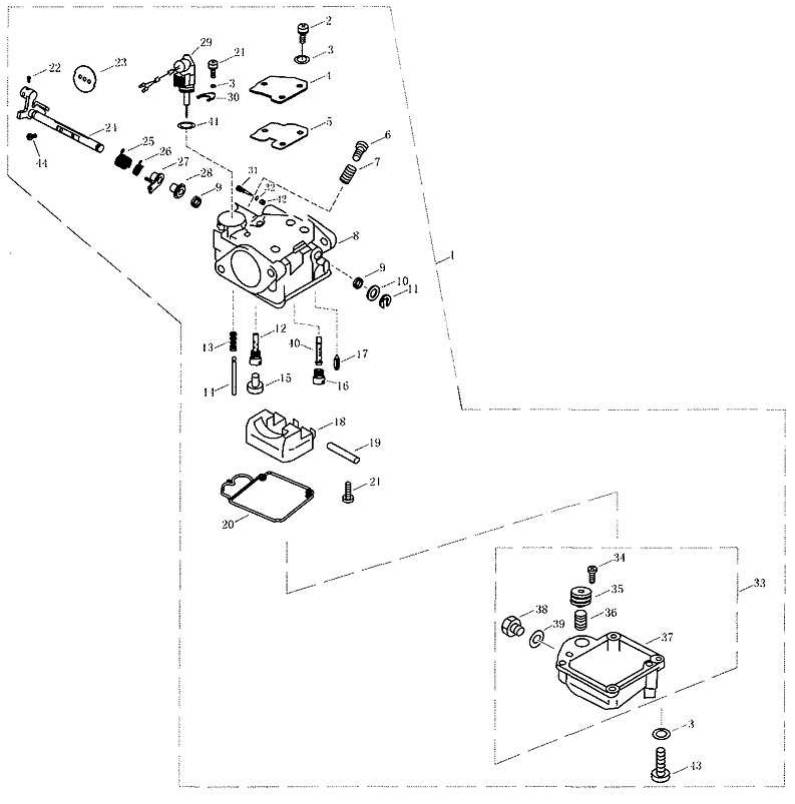

Carburetor
| Nummer: |
Bestelnummer: |
OEM: |
Omschrijving: |
| 1 |
PAF25-05070000 |
65W-14901-10 |
CARBURETOR ASSY |
| 2 |
PAGB/T818-M4X12 |
|
BOLT |
| 3 |
PAGB/T93-4 |
|
WASHER, SPRING |
| 4 |
PAF25-05070003 |
65W-14572-00-00 |
PLATE |
| 5 |
PAF25-05070002 |
65W-14126-00-00 |
GASKET |
| 6 |
PAF25-05070010 |
63V-14523-00-00 |
BOLT |
| 7 |
PAF25-05070011 |
90501-10326-00 |
SPRING, THORTTEL |
| 8 |
PAF25-05070001 |
65W-14901-10 |
CARBURETOR |
| 9 |
PAF25-05070005 |
|
SEAL |
| 10 |
PAF25-05070006 |
|
GASKET |
| 11 |
PAGB/T8964-4 |
|
CIRCLIP |
| 12 |
PAF25-05070022 |
|
NOZZLE, MAIN |
| 13 |
PAF25-05070025 |
|
WAVE JACKET, VALVE |
| 14 |
PAF25-05070024 |
|
WAVE MANDRIL, VALVE |
| 15 |
PAF25-05070023 |
|
RUBBER CAP |
| 16 |
PAF25-05070021 |
|
MAIN, JET |
| 17 |
PAF25-05070017 |
|
VALVE, NEEDLE |
| 18 |
PAF25-05070018 |
63V-14985-00-00 |
FLOAT |
| 19 |
PAF25-05070019 |
6H4-14548-00 |
PAIN, FLOAT |
| 20 |
PAF25-05070026 |
65W-14384-00-00 |
GASKET, FLOAT CHAMBER |
| 21 |
PAGB/T818-M4X8 |
|
BOLT |
| 22 |
PAGB/T818-M4X6 |
|
BOLT |
| 23 |
PAF25-05070006 |
|
APRON, ACCELERATOR |
| 24 |
PAF25-05070100 |
|
SWING LINK, ACCELERATOR |
| 25 |
PAF25-05070004 |
|
WRING SPRING |
| 26 |
PAF25-05070009 |
|
TWIST SPRING, SWING LINK |
| 27 |
PAF25-05070008 |
|
SWING LINK, VALVE |
| 28 |
PAF25-05070007 |
|
BUSH, SWING LINK |
| 29 |
PAF25-05070200 |
|
VALVE ASSY, ELECTRICAL |
| 30 |
PAF25-05070016 |
|
PLATE, VALVE |
| 31 |
PAF25-05070013 |
|
SCREW, AIR ADJUSTING |
| 32 |
PAF25-05070014 |
|
SEAL |
| 33 |
PAF25-05070300 |
|
BODY, FLOAT CHAMBER |
| 34 |
PAGB/T818-M2X3 |
|
BOLT |
| 35 |
PAF25-05070302 |
|
PLUG, VALVE |
| 36 |
PAF25-05070301 |
|
SPRING, VALVE |
| 37 |
PAF25-05070305 |
65W-14980-20-00 |
CUP, BODY |
| 38 |
PAF25-05070303 |
|
SCREW, DRAIN |
| 39 |
PAF25-05070304 |
|
GASKET |
| 40 |
PAF25-05070020 |
|
MAIN, NOZZLE |
| 41 |
PAF25-05070201 |
|
O-RING |
| 42 |
PAF25-05070015 |
|
SPRING, PILOT ADJUSTING |
| 43 |
PAGB/T818-M4X14 |
|
BOLT |
| 44 |
PAGB/T818-M3X6 |
|
BOLT |
| Number: |
Order number: |
OEM: |
Description: |
| 1 |
PAF25-05070000 |
65W-14901-10 |
CARBURETOR ASSY |
| 2 |
PAGB/T818-M4X12 |
 |
BOLT |
| 3 |
PAGB/T93-4 |
 |
WASHER, SPRING |
| 4 |
PAF25-05070003 |
65W-14572-00-00 |
PLATE |
| 5 |
PAF25-05070002 |
65W-14126-00-00 |
GASKET |
| 6 |
PAF25-05070010 |
63V-14523-00-00 |
BOLT |
| 7 |
PAF25-05070011 |
90501-10326-00 |
SPRING, THORTTEL |
| 8 |
 PAF25-05070001 |
65W-14901-10 |
CARBURETOR |
| 9 |
PAF25-05070005 |
 |
SEAL |
| 10 |
PAF25-05070006 |
 |
GASKET |
| 11 |
PAGB/T8964-4 |
 |
CIRCLIP |
| 12 |
PAF25-05070022 |
 |
NOZZLE, MAIN |
| 13 |
PAF25-05070025 |
 |
WAVE JACKET, VALVE |
| 14 |
PAF25-05070024 |
 |
WAVE MANDRIL, VALVE |
| 15 |
PAF25-05070023 |
 |
RUBBER CAP |
| 16 |
PAF25-05070021 |
 |
MAIN, JET |
| 17 |
PAF25-05070017 |
 |
VALVE, NEEDLE |
| 18 |
PAF25-05070018 |
63V-14985-00-00 |
FLOAT |
| 19 |
PAF25-05070019 |
6H4-14548-00 |
PAIN, FLOAT |
| 20 |
PAF25-05070026 |
65W-14384-00-00 |
GASKET, FLOAT CHAMBER |
| 21 |
PAGB/T818-M4X8 |
 |
BOLT |
| 22 |
PAGB/T818-M4X6 |
 |
BOLT |
| 23 |
PAF25-05070006 |
 |
APRON, ACCELERATOR |
| 24 |
PAF25-05070100 |
 |
SWING LINK, ACCELERATOR |
| 25 |
PAF25-05070004 |
 |
WRING SPRING |
| 26 |
PAF25-05070009 |
 |
TWIST SPRING, SWING LINK |
| 27 |
PAF25-05070008 |
 |
SWING LINK, VALVE |
| 28 |
PAF25-05070007 |
 |
BUSH, SWING LINK |
| 29 |
PAF25-05070200 |
 |
VALVE ASSY, ELECTRICAL |
| 30 |
PAF25-05070016 |
 |
PLATE, VALVE |
| 31 |
PAF25-05070013 |
 |
SCREW, AIR ADJUSTING |
| 32 |
PAF25-05070014 |
 |
SEAL |
| 33 |
PAF25-05070300 |
 |
BODY, FLOAT CHAMBER |
| 34 |
PAGB/T818-M2X3 |
 |
BOLT |
| 35 |
PAF25-05070302 |
 |
PLUG, VALVE |
| 36 |
PAF25-05070301 |
 |
SPRING, VALVE |
| 37 |
PAF25-05070305 |
65W-14980-20-00 |
CUP, BODY |
| 38 |
PAF25-05070303 |
 |
SCREW, DRAIN |
| 39 |
PAF25-05070304 |
 |
GASKET |
| 40 |
PAF25-05070020 |
 |
MAIN, NOZZLE |
| 41 |
PAF25-05070201 |
 |
O-RING |
| 42 |
PAF25-05070015 |
 |
SPRING, PILOT ADJUSTING |
| 43 |
PAGB/T818-M4X14 |
 |
BOLT |
| 44 |
PAGB/T818-M3X6 |
 |
BOLT |
