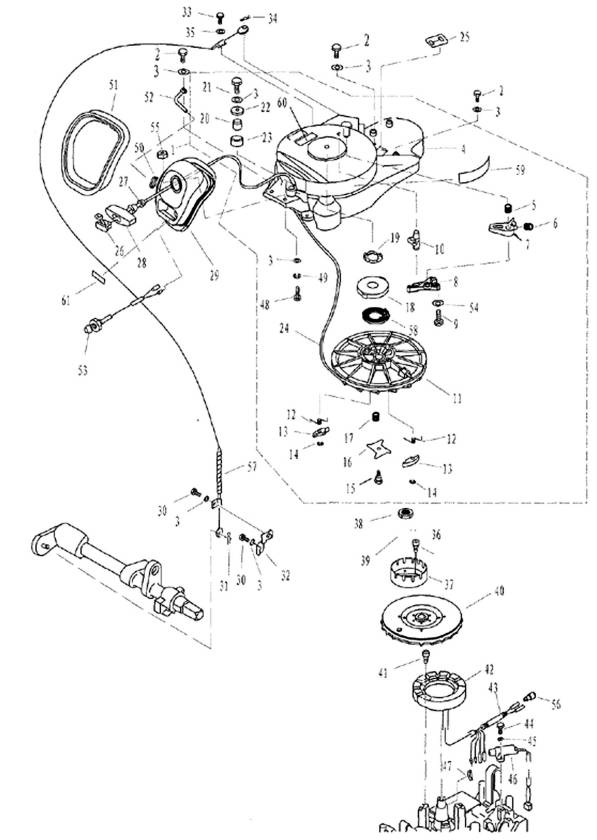

Starter Assembly
| Nummer: |
Bestelnummer: |
OEM: |
Omschrijving: |
| 1 |
PAF25-05160000 |
|
STARTER ASSY |
| 2 |
PAGB/T5783-2000 |
68D-E5362-00 |
BOLT |
| 3 |
PAGB/T97.1-85 |
66M-11327-00-94 |
WASHER, PLATE |
| 4 |
PAF25-05160100 |
|
CASE, STARTER |
| 5 |
PAF25-05160003 |
65W-15767-01 |
SPRING, ARRESTER |
| 6 |
PAF25-05160005 |
65W-15784-00 |
SPRING, TENSION |
| 7 |
PAF25-05160001 |
65W-15794-00 |
ARRESTER |
| 8 |
PAF25-05160006 |
65W-15414-00 |
ARRESTER, CHANGLESS |
| 9 |
PAGB/T5285-1985 |
|
SCREW, TAPPING |
| 10 |
PAF25-05160004 |
65W-15735-01 |
PAWL, DRIVE |
| 11 |
PAF25-05160301 |
65W-15714-01 |
WHEEL, START-UP |
| 12 |
PAF25-05160304 |
65W-15734-00 |
PAWL, DRIVE SPRING |
| 13 |
PAF25-05160305 |
65W-15741-10 |
PAWL, DRIVE |
| 14 |
PAGB/T896-86 |
93430-06005 |
CIRCLIP |
| 15 |
PAF25-05160018 |
|
PLATE, DRIVE BOLT |
| 16 |
PAF25-05160017 |
65W-15716-00 |
PLATE, DRIVE |
| 17 |
PAF25-05160016 |
65W-15715-00 |
SPRING, DRIVE PLATE |
| 18 |
PAF25-05160014 |
65W-15713-00 |
SEAT, SPRING |
| 19 |
PAF25-05160013 |
65W-15732-00 |
CUSHION, SPRING, SEAT |
| 20 |
PAF25-05160009 |
65W-15753-00 |
AXES, PULLEY |
| 21 |
PAGB/T5783-2000 |
68D-E5362-00 |
BOLT |
| 22 |
PAGB/T5287-1985 |
92990-06600 |
WASHER, OUTSIZE |
| 23 |
PAF25-05160008 |
65W-15752-00 |
PULLEY, STARTLING |
| 24 |
PAF25-05160019 |
90890-44373 |
START LING |
| 25 |
PAF25-05160012 |
65W-81639-10 |
JACKET, RUBBER |
| 26 |
PAF4-04130102 |
6G1-15779-00 |
COVER |
| 27 |
PAF25-05160021 |
697-15789-00 |
DAMPING |
| 28 |
PAF25-05160501 |
689-15755-01 |
HANDLE, STARTER |
| 29 |
PAF25-05160401 |
|
FRAME, STARTER |
| 30 |
PAGB/T5783-2000 |
68D-E5362-00 |
BOLT |
| 31 |
PAF15-00000012 |
90468-18008 |
SPRING |
| 32 |
PAF25-05000028 |
65W-15774-00 |
STAY, CABLE COMP |
| 33 |
PAGB/T5783-2000 |
68D-E5362-00 |
BOLT |
| 34 |
PAF25-05160002 |
90468-10005 |
SPRING |
| 35 |
PAGB/T96-85 |
|
BIG WASHER |
| 36 |
PAGB/T70.1-2000 |
|
BOLT |
| 37 |
PAF25-05000027 |
65W-15723-10 |
JUMP START, AXES |
| 38 |
PAF25-05000026 |
90170-20137 |
NUT, FLYWHEEL |
| 39 |
PAF25-05000025 |
90201-21M18 |
WASHER, FLYWHEEL NUT |
| 40 |
PAF25-05150000 |
65W-85550-01 |
FLYWHEEL ASSY |
| 41 |
PAGB/T70.1-2000 |
|
BOLT |
| 42 |
PAF25-05140000 |
65W-85510-10 |
STATOR ASSY |
| 43 |
PAF25-05000034 |
90446-10M82 |
RIPPLE JACKET |
| 44 |
PAGB/T5783-2000 |
68D-E5362-00 |
BOLT |
| 45 |
PAGB/T97.1-8.5 |
|
WASHER, PLATE |
| 46 |
PAF25-05110000 |
65W-85580-00 |
COIL, PULSER |
| 47 |
PAF25-05000024 |
65W-11545-00 |
KEY, SEMISIRCLE FLYWHEEL |
| 48 |
PAGB/T5783-2000 |
68D-E5362-00 |
BOLT |
| 49 |
PAGB/T93-1987 |
|
WASHER SPRING |
| 50 |
PAHT2.5X60 |
|
CLAMP |
| 51 |
PAF25-05160402 |
65W-15762-00 |
SEAL, FROTHY RUBBER |
| 52 |
PAF25-05160403 |
65W-15771-00 |
NOG, UNCORK |
| 53 |
PAF15-07130303 |
65W-85410-01 |
SUMP INDICATOR LIGHT |
| 54 |
PAGB/T848-1985 |
|
SMALL WASHER |
| 55 |
PAGB/T889.1-2000 |
|
LOCK NUT |
| 56 |
PAF25-05110001 |
|
INSULATED PLUG |
| 57 |
PAF25-05160200 |
65W-15770-00 |
CABLE COMP, STARTER STOP |
| 58 |
PAF25-05160015 |
|
SPRING, VOLUTE |
| 59 |
PAF25-08000006 |
|
MARK 6 |
| 60 |
PAF25-08000105 |
|
MARK 5 |
| 61 |
PAF25-12000012 |
|
MARK 12 |
| Number: |
Order number: |
OEM: |
Description: |
| 1 |
PAF25-05160000 |
 |
STARTER ASSY |
| 2 |
PAGB/T5783-2000 |
68D-E5362-00 |
BOLT |
| 3 |
PAGB/T97.1-85 |
66M-11327-00-94 |
WASHER, PLATE |
| 4 |
PAF25-05160100 |
 |
CASE, STARTER |
| 5 |
PAF25-05160003 |
65W-15767-01 |
SPRING, ARRESTER |
| 6 |
PAF25-05160005 |
65W-15784-00 |
SPRING, TENSION |
| 7 |
PAF25-05160001 |
65W-15794-00 |
ARRESTER |
| 8 |
PAF25-05160006 |
65W-15414-00 |
ARRESTER, CHANGLESS |
| 9 |
PAGB/T5285-1985 |
 |
SCREW, TAPPING |
| 10 |
PAF25-05160004 |
65W-15735-01 |
PAWL, DRIVE |
| 11 |
PAF25-05160301 |
65W-15714-01 |
WHEEL, START-UP |
| 12 |
PAF25-05160304 |
65W-15734-00 |
PAWL, DRIVE SPRING |
| 13 |
PAF25-05160305 |
65W-15741-10 |
PAWL, DRIVE |
| 14 |
PAGB/T896-86 |
93430-06005 |
CIRCLIP |
| 15 |
PAF25-05160018 |
 |
PLATE, DRIVE BOLT |
| 16 |
PAF25-05160017 |
65W-15716-00 |
PLATE, DRIVE |
| 17 |
PAF25-05160016 |
65W-15715-00 |
SPRING, DRIVE PLATE |
| 18 |
PAF25-05160014 |
65W-15713-00 |
SEAT, SPRING |
| 19 |
PAF25-05160013 |
65W-15732-00 |
CUSHION, SPRING, SEAT |
| 20 |
PAF25-05160009 |
65W-15753-00 |
AXES, PULLEY |
| 21 |
PAGB/T5783-2000 |
68D-E5362-00 |
BOLT |
| 22 |
PAGB/T5287-1985 |
92990-06600 |
WASHER, OUTSIZE |
| 23 |
PAF25-05160008 |
65W-15752-00 |
PULLEY, STARTLING |
| 24 |
PAF25-05160019 |
90890-44373 |
START LING |
| 25 |
PAF25-05160012 |
65W-81639-10 |
JACKET, RUBBER |
| 26 |
PAF4-04130102 |
6G1-15779-00 |
COVER |
| 27 |
PAF25-05160021 |
697-15789-00 |
DAMPING |
| 28 |
PAF25-05160501 |
689-15755-01 |
HANDLE, STARTER |
| 29 |
PAF25-05160401 |
 |
FRAME, STARTER |
| 30 |
PAGB/T5783-2000 |
68D-E5362-00 |
BOLT |
| 31 |
PAF15-00000012 |
90468-18008 |
SPRING |
| 32 |
PAF25-05000028 |
65W-15774-00 |
STAY, CABLE COMP |
| 33 |
PAGB/T5783-2000 |
68D-E5362-00 |
BOLT |
| 34 |
PAF25-05160002 |
90468-10005 |
SPRING |
| 35 |
PAGB/T96-85 |
 |
BIG WASHER |
| 36 |
PAGB/T70.1-2000 |
 |
BOLT |
| 37 |
PAF25-05000027 |
65W-15723-10 |
JUMP START, AXES |
| 38 |
PAF25-05000026 |
90170-20137 |
NUT, FLYWHEEL |
| 39 |
PAF25-05000025 |
90201-21M18 |
WASHER, FLYWHEEL NUT |
| 40 |
PAF25-05150000 |
65W-85550-01 |
FLYWHEEL ASSY |
| 41 |
PAGB/T70.1-2000 |
 |
BOLT |
| 42 |
PAF25-05140000 |
65W-85510-10 |
STATOR ASSY |
| 43 |
PAF25-05000034 |
90446-10M82 |
RIPPLE JACKET |
| 44 |
PAGB/T5783-2000 |
68D-E5362-00 |
BOLT |
| 45 |
PAGB/T97.1-8.5 |
 |
WASHER, PLATE |
| 46 |
PAF25-05110000 |
65W-85580-00 |
COIL, PULSER |
| 47 |
PAF25-05000024 |
65W-11545-00 |
KEY, SEMISIRCLE FLYWHEEL |
| 48 |
PAGB/T5783-2000 |
68D-E5362-00 |
BOLT |
| 49 |
PAGB/T93-1987 |
 |
WASHER SPRING |
| 50 |
PAHT2.5X60 |
 |
CLAMP |
| 51 |
PAF25-05160402 |
65W-15762-00 |
SEAL, FROTHY RUBBER |
| 52 |
PAF25-05160403 |
65W-15771-00 |
NOG, UNCORK |
| 53 |
PAF15-07130303 |
65W-85410-01 |
SUMP INDICATOR LIGHT |
| 54 |
PAGB/T848-1985 |
 |
SMALL WASHER |
| 55 |
PAGB/T889.1-2000 |
 |
LOCK NUT |
| 56 |
PAF25-05110001 |
 |
INSULATED PLUG |
| 57 |
PAF25-05160200 |
65W-15770-00 |
CABLE COMP, STARTER STOP |
| 58 |
PAF25-05160015 |
 |
SPRING, VOLUTE |
| 59 |
PAF25-08000006 |
 |
MARK 6 |
| 60 |
PAF25-08000105 |
 |
MARK 5 |
| 61 |
PAF25-12000012 |
 |
MARK 12 |
