Bracket 1
| NR: |
Bestelnummer: |
OEM: |
Omschrijving: |
Aantal: |
| 1 |
PAF25-01010312 |
65W-43630-00 |
LOCKING HANDLE ASSY |
1 |
| 2 |
PAF15-01010305-3 |
|
JACKET, HANDLE |
1 |
| 3 |
PAF25-01010311 |
|
BUSHING, LOCKING HANDLE |
1 |
| 4 |
PAF25-01010009 |
90202-12031 |
WASHER, NYLON |
2 |
| 5 |
PAF25-01010321 |
66T-43627-00 |
DETENT PLATE, TILT |
2 |
| 6 |
PAF25-01010008 |
90206-12M00 |
WAVE WASHER |
2 |
| 7 |
PAF25-01010007 |
90109-08M90 |
SCREW, PROLATE HEXAGON |
2 |
| 8 |
PAF25-01010318 |
90249-12M34 |
PIN, DETENT PLATE |
2 |
| 9 |
PAF25-01010319 |
90386-12M98 |
NYLON BUSHING, PIN |
2 |
| 10 |
PAGB/T879.2- 3x18 |
|
PIN 3x18 |
1 |
| 11 |
PAT40-01010102 |
65W-43192-00 |
LIMITING HANDLE, TILT |
1 |
| 12 |
PAGB/T6182-M8 |
|
LOCKING NUT M8 |
2 |
| 13 |
PAF25-01010010 |
90201-08M07 |
THICK WASHER 8 |
2 |
| 14 |
PAF25-01010200 |
|
CLAMP BRACKET ASSY (RIGHT) |
1 |
| 15 |
PAF25-01010011 |
6G5-43145-00 |
PLASTIC NUT |
2 |
| 16 |
PAF15-01010007 |
63V-43145-00 |
SELF-LOCKING NUT, BRACKET |
2 |
| 17 |
PAF25-01010004 |
6J8-43113-01 |
PLATE, TWO HOLE |
1 |
| 18 |
PAF25-01010102 |
63-43118-01-4D |
CLAMP HANDLE, STERN |
2 |
| 19 |
PAF25-01010104 |
90149-14M12 |
CLAMP SCREW, STERN |
2 |
| 20 |
PAF25-01010103 |
90243-04007 |
RIVET, CLAMP HANDLE |
2 |
| 21 |
PAF4-01010003 |
620-43114-00 |
CLAMP PAD |
2 |
| 22 |
PAGB/T6170-M8 |
95380-08600 |
NUT M8 |
1 |
| 23 |
PAGB/T93-8 |
|
WASHER, SPRING 8 |
1 |
| 24 |
PAGB/T97.1-8 |
|
WASHER 8 |
1 |
| 25 |
PAT40-01010101 |
65W-43191-00 |

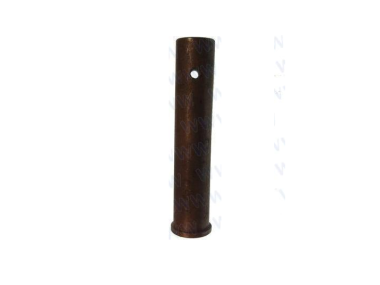

LIMITING SHAFT, TILT |
1 |
| 26 |
PAF25-01010003 |
90201-22M03 |
WASHER |
2 |
| 27 |
PAF25-01010002 |
90386-22M15 |
BUSH, NYLON |
2 |
| 28 |
PAF25-01010301S |
|
BRACKET, ROTARY (S) |
1 |
| 28 |
PAF25-01010301L |
|
ROTARY BRACKET (L) |
1 |
| 29 |
PAGB/T7940.1-M6 |
344-67177-0 |
OIL CUP M6 |
3 |
| 30 |
PAT36-04000023 |
|
LINE CLAMP |
1 |
| 31 |
PAF25-01010302 |
65W-43373-00 |
SEAL, BOLT |
1 |
| 32 |
PAF25-01010303 |
90105-08M76 |
FLANG BOLT M8x20 |
1 |
| 33 |
PAF15-01010001 |
63D-43131-00 |
BOLT, CLAMP BRACKET |
1 |
| 34 |
PAF25-01010006 |
903-8710108-00 |
TUBE, BOLT |
1 |
| 35 |
PAF25-01010100 |
|
CLAMP BRACKET ASSY (LEFT) |
1 |
| 36 |
PAF25-01010403 |
|
CONICAL SPRING |
1 |
| 37 |
PAF25-01010400 |
|
LIMITING ROD ASSY |
1 |
| 38 |
PAF25-01010005 |
90101-08M76 |
LONG BOLT M8x255 |
1 |
| 39 |
PAF25-01010309 |
90387-07049 |
BUSHING, LOCKING HANDLE |
1 |
| 40 |
PAF25-01010315 |
65W-43616-00 |
CONNECTING ROD, BRACKET |
1 |
| 41 |
PAGB/T818-M5x6 |
|
SCREW, PAN HBAD M5x6 |
1 |
| 42 |
PAF25-01010313 |
66T-43631-00 |
LEVER, ANGLE ORIENTATION |
1 |
| 43 |
PAF25-01010305 |
90249-07M32 |
LONG SHAFT, LOCKING FRAME |
1 |
| 44 |
PAGB/T91-Ø2x12 |
|
COTTER PIN Ø2x12 |
4 |
| 45 |
PAGB/T896-9 |
|
CIRCLIP 9 |
2 |
| 46 |
PAF25-01010304 |
90506-30M00 |
TENSION SPRING, LOCKING FRAME |
2 |
| 47 |
PAF25-01010307-3 |
90249-07M33 |
SHORT SHAFT, OUTER BRACKET |
1 |
| 48 |
PAF25-01010307-4 |
65W-43614-00 |
OUTER BRACKET (B) |
1 |
| 49 |
PAF25-01010307-1 |
65W-43613-00 |
INNER BRACKET |
1 |
| 50 |
PAF25-01010307-2 |
65W-43615-00 |
OUTER BRACKET (A) |
1 |
| 51 |
PAF25-01010306 |
90387-07M29 |
TUBE, LONG SHAFT |
1 |
