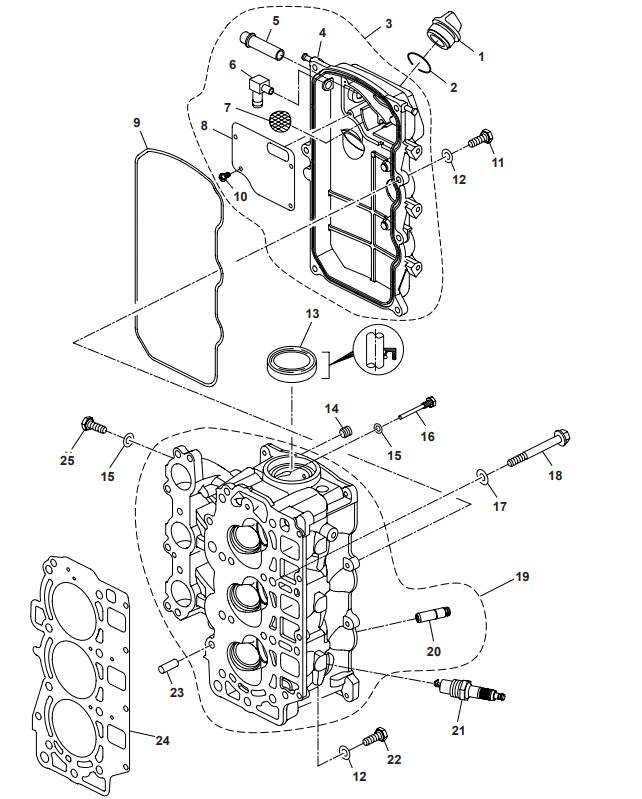

Cylinder Head
| NR: | Bestelnummer: | OEM: | Omschrijving: | Aantal: |
| 1 | PAF15-07050004 | 6G8-15363-00 | FILLER CAP, ENGINE OIL | 1 |
| 2 | PAJASOF404-35-025 | 90196 | O-RING | 1 |
| 3 | PAF40-05070000 | 893693A04 | COVER ASSY, CYLINDER HEAD | 1 |
| 4 | PAF40-05070001 | COVER, CYLINDER HEAD | 1 | |
| 5 | PAF40-05070002 | 825054 | CONNECTOR, BREATHER | 1 |
| 6 | PAF25-02010003 | 629101 | CONNECTOR B, GAS PIPE | 1 |
| 7 | PAF40-05070004 | SIEVE NET | 1 | |
| 8 | PAF40-05070003 | 855236 | PLATE, BREATHER | 1 |
| 9 | PAF40-05000002 | 3862567 | SEAL, CYLINDER HEAD | 1 |
| 10 | PAGB/T818-M4x1O | SCREW M4x10 | 4 | |
| 11 | PAGB/T5783-M6x20 | 97080-06020-00 | BOLT M6x20 | 7 |
| 12 | PAGB/T97.1-6 | 92990-06600-00 | WASHER 6 | 11 |
| 13 | PAF25-05050021 | 93102-37M40 | OIL SEAL, CAMSHAFT | 1 |
| 14 | PAF15-07010005 | PLUG 1/4" | 5 | |
| 15 | PAF25-05050007 | 90430-06014 | WASHER, LIMITING BOLT | 4 |
| 16 | PAF25-05050006 | 90109-06M65 | LIMITING BOLT, CAMSHAFT | 1 |
| 17 | PAF25-05000003 | WASHER 9 | 8 | |
| 18 | PAF25-05000002 | 90119-09M00 | BOLT M9x1.25 | 8 |
| 19 | PAF40-05040100EI | 877568T | CYLINDER HEAD ASSY (EFI) | |
| PAF40-05040100 | CYLINDER HEAD ASSY (BW/FW) | |||
| 20 | PAF15-07040104 | GUIDE,VALVE | 6 | |
| 21 | PAF20-05000037 | 94701-00375 | SPARK PLUG DPR7EA-9 | 3 |
| 22 | PAF8-05000022 | BOLT M6x25 | 4 | |
| 23 | PAF25-00000014 | 99530-08012 | DOWEL PIN 8x12 | 2 |
| 24 | PAF40-05030000 | 8M0118180 | GASKET ASSY, CYLINDER HEAD | 1 |
| 25 | PAGB/T5783-M6x10 | BOLT M6x10 | 3 |
-
Yamaha / Mercury / Parsun Oil Seal B F15/F20/F25/F30/F40 HP (93102-37004, 825048)As low as €15.95 €13.18
-
Parsun/Mercury F40 Cylinder Head Assembly (877568T, 893504T)As low as €549.00 €453.72
-

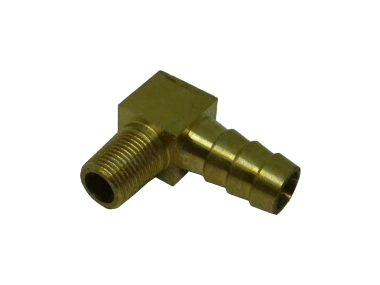

Parsun / Mercury F40 JOINT B, GAS PIPE (629101)As low as €9.95 €8.22
-
Parsun / Mercury Cover Assembly, Cylinder Head (834779A1, 893693A03, 893693A04)As low as €68.95 €56.98
-
Parsun / Mercury O-RING (90196)As low as €4.95 €4.09
-
Yamaha / Mercury / Parsun Valve Cover Seal (67C-11356-00 / 6BG-11356-00, 25-893898, 854341, 893898)As low as €12.95 €10.70
-

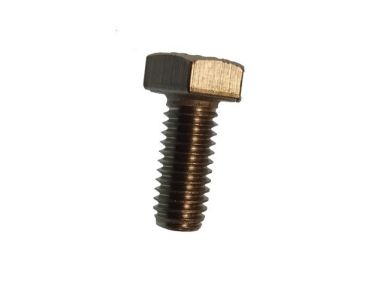

Yamaha/Parsun Bolt M6x10 (97095-06010)As low as €4.95 €4.09
-

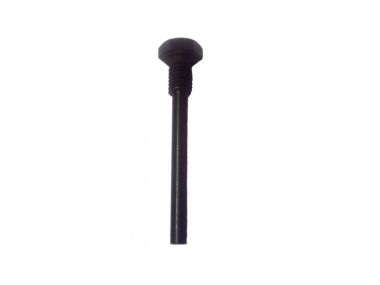

Yamaha / Mercury / Parsun Bolt FT, F20, F25 (ALL) (1998-08) 90109-06M65 10-827607As low as €12.95 €10.70
-
Yamaha / Mercury / Parsun Gasket FT, F20, F25 (ALL) (1998-08) (90430-06014, 27-827610)As low as €4.95 €4.09
-
Yamaha / Mercury / Parsun Bolt flange FT, F20, F25 (ALL) (1998-08) 90119-09M00 10-82503395As low as €4.95 €4.09
-
Yamaha / Parsun / Mercury Pin dowel FT, F20, F25 (ALL) (1998-08) 99530-08012 17-825010As low as €4.95 €4.09
-
Parsun F40 COVER, CYLINDER HEAD (PAF40-05070001)€49.95 €41.28
-

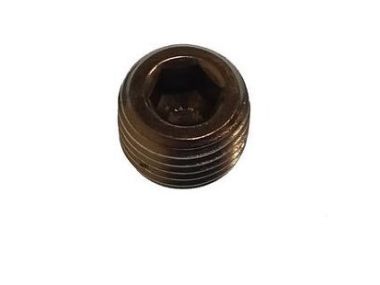

Parsun STOPPER 1/4 F6, F8 & F9.8 (PAF15-07010005)€11.95 €9.88
-

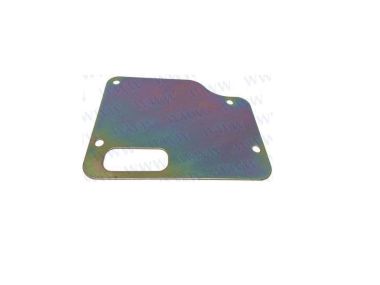

Parsun / Mercury F40 PLATE, BREATHER (855236)€8.95 €7.40
-

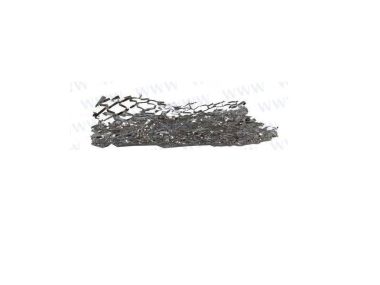

Parsun F40 SIEVE NET (PAF40-05070004)€5.95 €4.92
-

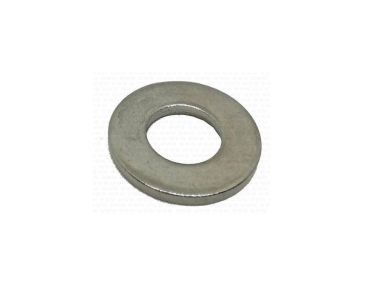

Parsun WASHER ,PLATE F20 & F25 (PAF25-05000003)€6.95 €5.74
-

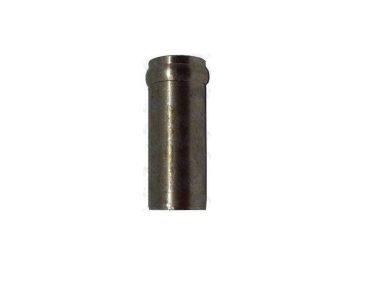

Parsun / Mercury F40 Breather Connector (825054)€10.95 €9.05
| Number: | Order number: | OEM: | Description: | Quantity: |
| 1 | PAF15-07050004 | 6G8-15363-00 | FILLER CAP, ENGINE OIL | 1 |
| 2 | PAJASOF404-35-025 | 90196 | O-RING | 1 |
| 3 | PAF40-05070000 | 893693A04 | COVER ASSY, CYLINDER HEAD | 1 |
| 4 | PAF40-05070001 | Â | COVER, CYLINDER HEAD | 1 |
| 5 | PAF40-05070002 | 825054 | CONNECTOR, BREATHER | 1 |
| 6 | PAF25-02010003 | 629101 | CONNECTOR B, GAS PIPE | 1 |
| 7 | PAF40-05070004 | Â | SIEVE NET | 1 |
| 8 | PAF40-05070003 | 855236 | PLATE, BREATHER | 1 |
| 9 | PAF40-05000002 | 3862567 | SEAL, CYLINDER HEAD | 1 |
| 10 | PAGB/T818-M4x1O | Â | SCREW M4x10 | 4 |
| 11 | PAGB/T5783-M6x20 | 97080-06020-00 | BOLT M6x20 | 7 |
| 12 | PAGB/T97.1-6 | 92990-06600-00 | WASHER 6 | 11 |
| 13 | PAF25-05050021 | 93102-37M40 | OIL SEAL, CAMSHAFT | 1 |
| 14 | PAF15-07010005 | Â | PLUG 1/4" | 5 |
| 15 | PAF25-05050007 | 90430-06014 | WASHER, LIMITING BOLT | 4 |
| 16 | PAF25-05050006 | 90109-06M65 | LIMITING BOLT, CAMSHAFT | 1 |
| 17 | PAF25-05000003 | Â | WASHER 9 | 8 |
| 18 | PAF25-05000002 | 90119-09M00 | BOLT M9x1.25 | 8 |
| 19 | PAF40-05040100EI | 877568T | CYLINDER HEAD ASSY (EFI) | Â |
| Â | PAF40-05040100 | Â | CYLINDER HEAD ASSY (BW/FW) | Â |
| 20 | PAF15-07040104 | Â | GUIDE,VALVE | 6 |
| 21 | PAF20-05000037 | 94701-00375 | SPARK PLUG DPR7EA-9 | 3 |
| 22 | PAF8-05000022 | Â | BOLT M6x25 | 4 |
| 23 | PAF25-00000014 | 99530-08012 | DOWEL PIN 8x12 | 2 |
| 24 | PAF40-05030000 | 8M0118180 | GASKET ASSY, CYLINDER HEAD | 1 |
| 25 | PAGB/T5783-M6x10 | Â | BOLT M6x10 | 3 |
