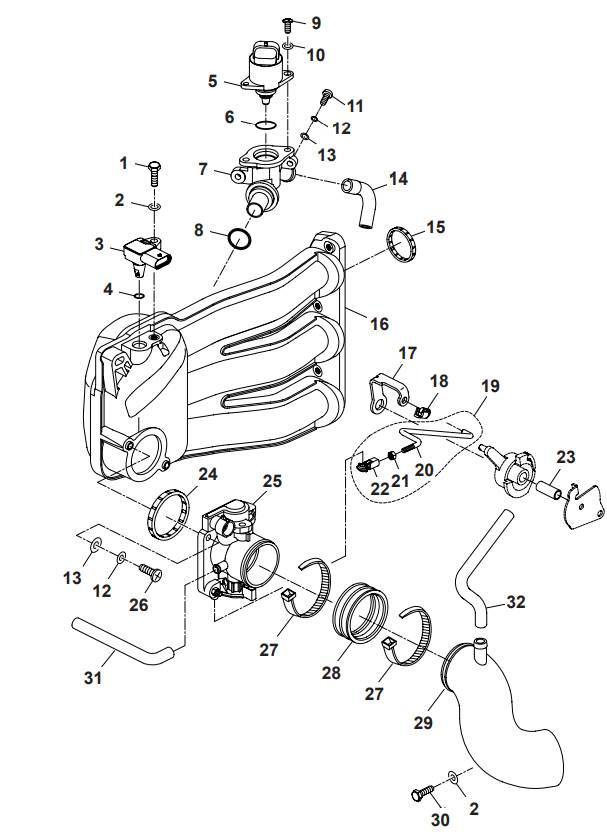

Intake 2
| NR: |
Bestelnummer: |
OEM: |
Omschrijving: |
Aantal: |
| 1 |
PAGB/T5783-M6x20 |
97080-06020-00 |
BOLT M6x20 |
1 |
| 2 |
PAGB/T97.1-6 |
92990-06600-00 |
WASHER 6 |
3 |
| 3 |
PAF40-05090600EI |
|
SENSOR, INTAKE |
1 |
| 4 |
PAF40-05090601EI |
|
0-RING,TEMP. SENSOR |
1 |
| 5 |
PAF40-05090503EI |
|
STEP MOTOR |
1 |
| 6 |
PAF40-05090503-1EI |
|
O-RING, STEP MOTOR |
1 |
| 7 |
PAF40-05090501EI |
|
IDLE CONTROL |
1 |
| 8 |
PAF40-05090602EI |
|
O-RING, IDLE CONTROL |
1 |
| 9 |
PAGB/T818-M4x10 |
|
BOLT M4x10 |
2 |
| 10 |
PAGB/T97.1-4 |
|
WASHER 4 |
2 |
| 11 |
PAGB/T818-M5x14 |
|
BOLT M5x14 |
2 |
| 12 |
PAGB/T93-5 |
|
SPRING WASHER 5 |
4 |
| 13 |
PAGB/T97.1-5 |
|
WASHER 5 |
4 |
| 14 |
PAF40-05000026EI |
|
IDLE CONTROL PIPE |
1 |
| 15 |
PAF40-05090803EI |
|
SEAL, INTAKE SILENCER |
3 |
| 16 |
PAF40-05090800EI |
878139T |
INTAKE SILENCER ASSY |
1 |
| 17 |
PAF40-05000039EI |
|
SWING ROD, THROTTLE |
1 |
| 18 |
PAF15-07130314W |
|
JOIN, CHOKE |
1 |
| 19 |
PAF40-05000900EI |
|
LINK ROD ASSY |
1 |
| 20 |
PAF40-05000901EI |
|

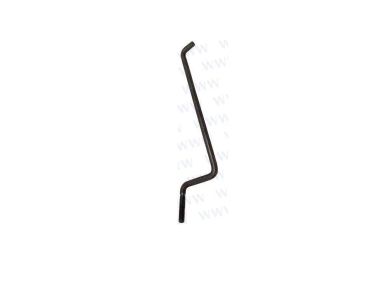

LINK ROD, ACCELERATOR |
1 |
| 21 |
PAGB/T6170-M5 |
|
NUT M5 |
1 |
| 22 |
PAT20-06050302 |
|

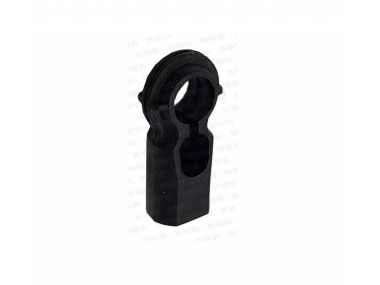

JOIN B, LINK ROD |
1 |
| 23 |
PAF40-05000016EI |
|

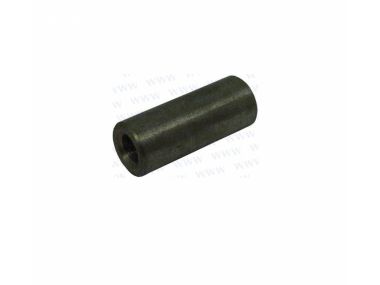

BUSHING, ACCELEROGRAPH |
1 |
| 24 |
PAF40-05090403EI |
|
SEAL,THROTTLE VALVE |
1 |
| 25 |
PAF40-05090400EI |
|
THROTTLE VALVE ASSY |
1 |
| 26 |
PAGB/T818-M5x20 |
97880-05200 |
BOLT M5x20 |
2 |
| 27 |
PAHT4.0x300 |
|
CLAMP 4.0x300 |
2 |
| 28 |
PAF40-05090408EI |
|
RUBBER BOOT, THROTTLE VALVE |
1 |
| 29 |
PAF40-05000064EI |
|
CONDUIT, THROTTLE VALVE |
1 |
| 30 |
PAGB/T5783-M6x14 |
|
BOLT M6x14 |
1 |
| 31 |
PAF40-05000050EI |
|
AIR PIPE A |
1 |
| 32 |
PAF40-05000048EI |
|

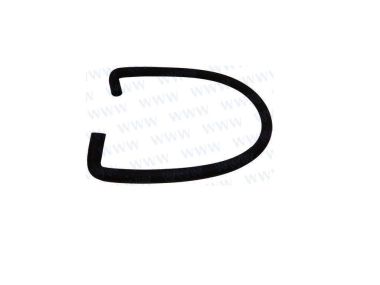

AIR PIPE |
1 |
| Number: |
Order number: |
OEM: |
Description: |
Quantity: |
| 1 |
PAGB/T5783-M6x20 |
97080-06020-00 |
BOLT M6x20 |
1 |
| 2 |
PAGB/T97.1-6 |
92990-06600-00 |
WASHER 6 |
3 |
| 3 |
PAF40-05090600EI |
 |
SENSOR, INTAKE |
1 |
| 4 |
PAF40-05090601EI |
 |
0-RING,TEMP. SENSOR |
1 |
| 5 |
PAF40-05090503EI |
 |
STEP MOTOR |
1 |
| 6 |
PAF40-05090503-1EI |
 |
O-RING, STEP MOTOR |
1 |
| 7 |
PAF40-05090501EI |
 |
IDLE CONTROL |
1 |
| 8 |
PAF40-05090602EI |
 |
O-RING, IDLE CONTROL |
1 |
| 9 |
PAGB/T818-M4x10 |
 |
BOLT M4x10 |
2 |
| 10 |
PAGB/T97.1-4 |
 |
WASHER 4 |
2 |
| 11 |
PAGB/T818-M5x14 |
 |
BOLT M5x14 |
2 |
| 12 |
PAGB/T93-5 |
 |
SPRING WASHER 5 |
4 |
| 13 |
PAGB/T97.1-5 |
 |
WASHER 5 |
4 |
| 14 |
PAF40-05000026EI |
 |
IDLE CONTROL PIPE |
1 |
| 15 |
PAF40-05090803EI |
 |
SEAL, INTAKE SILENCER |
3 |
| 16 |
PAF40-05090800EI |
878139T |
INTAKE SILENCER ASSY |
1 |
| 17 |
PAF40-05000039EI |
 |
SWING ROD, THROTTLE |
1 |
| 18 |
PAF15-07130314W |
 |
JOIN, CHOKE |
1 |
| 19 |
PAF40-05000900EI |
 |
LINK ROD ASSY |
1 |
| 20 |
PAF40-05000901EI |
 |
LINK ROD, ACCELERATOR |
1 |
| 21 |
PAGB/T6170-M5 |
 |
NUT M5 |
1 |
| 22 |
PAT20-06050302 |
 |
JOIN B, LINK ROD |
1 |
| 23 |
PAF40-05000016EI |
 |
BUSHING, ACCELEROGRAPH |
1 |
| 24 |
PAF40-05090403EI |
 |
SEAL,THROTTLE VALVE |
1 |
| 25 |
PAF40-05090400EI |
 |
THROTTLE VALVE ASSY |
1 |
| 26 |
PAGB/T818-M5x20 |
97880-05200 |
BOLT M5x20 |
2 |
| 27 |
PAHT4.0x300 |
 |
CLAMP 4.0x300 |
2 |
| 28 |
PAF40-05090408EI |
 |
RUBBER BOOT, THROTTLE VALVE |
1 |
| 29 |
PAF40-05000064EI |
 |
CONDUIT, THROTTLE VALVE |
1 |
| 30 |
PAGB/T5783-M6x14 |
 |
BOLT M6x14 |
1 |
| 31 |
PAF40-05000050EI |
 |
AIR PIPE A |
1 |
| 32 |
PAF40-05000048EI |
 |
AIR PIPE |
1 |
