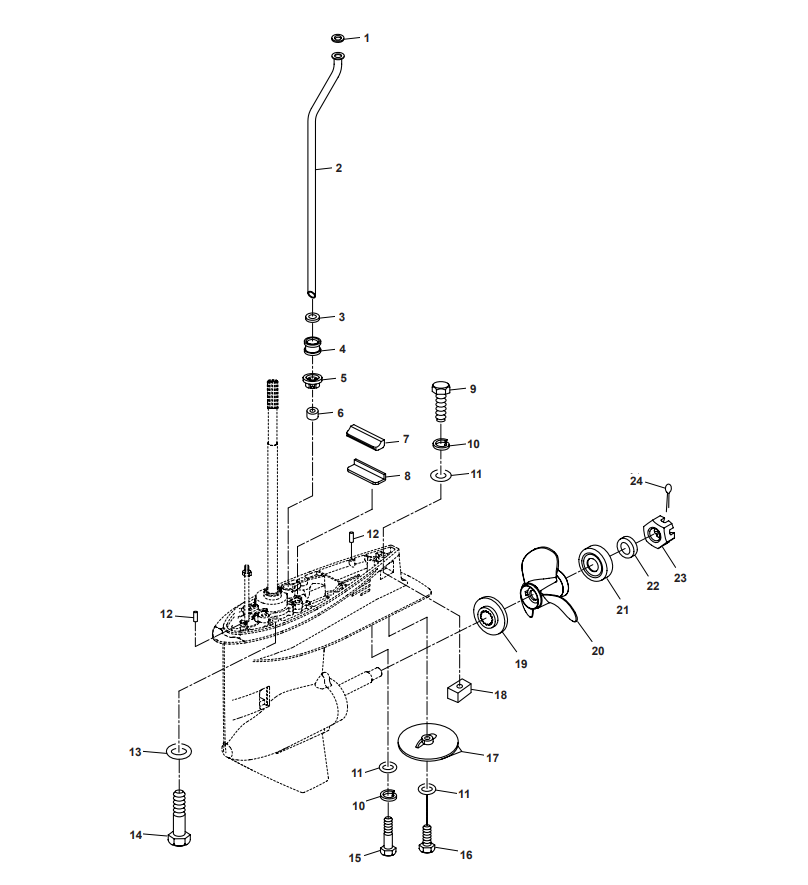

Lower Casing & Drive 2
| NR: |
Bestelnummer: |
OEM: |
Omschrijving: |
Aantal: |
| 1 |
PAF25-02000019 |
90202-12060 |
NYLON WASHER, WATER PIPE |
1 |
| 2 |
PAF40-02000005S |
|
WATER PIPE (S) |
|
| 2 |
PAF40-02000005L |
|

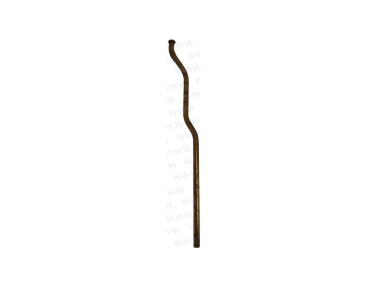

WATER PIPE (L) |
1 |
| 3 |
PAT40-02010005 |
90430-12072 |
SEAL, WATER PIPE |
1 |
| 4 |
PAT40-02000002 |
663-44367-00 |
GUIDE BUSHING, WATER PIPE |
1 |
| 5 |
PAT40-04000204 |
63D-44312-00 |
NYLON BUSHING, WATER PIPE |
1 |
| 6 |
PAT40-04000203 |
663-44366-00 |
SEAL |
1 |
| 7 |
PAT40-04000014 |
63D-45375-00 |
WATER ENVELOP |
1 |
| 8 |
PAT40-04000013 |
663-45376-00 |
PLATE, WATER ENVELOP |
1 |
| 9 |
PAGB/T5783-M8x35 |
97070-08035-00 |
BOLT M8x35 |
1 |
| 10 |
PAGB/T93-8 |
|
SPRING-WASHER 8 |
2 |
| 11 |
PAGB/T97.1-8 |
66M-11327-00-94 |
WASHER 8 |
3 |
| 12 |
PAF15-00000006 |
93606-11M24 |
DOWEL PIN Ø6x12 |
2 |
| 13 |
PAGB/T97.1-10 |
|
WASHER 10 |
4 |
| 14 |
PAF40-02000010 |
|
BOLT M10x1.25x40 |
4 |
| 15 |
PAGB/T5783-M8x65 |
|
BOLT M8x65 |
1 |
| 16 |
PAGB/T5783-M8x25 |
97080-08025 |
BOLT M8x25 |
1 |
| 17 |
PAT40-00000010 |
664-45371-01 |
ANODE |
1 |
| 18 |
PAT40-00000009 |
63D-45251-10 |
ANODE A, LOWER CASING |
1 |
| 19 |
PAT40-04000018 |
663-45987-02 |
SPACER, PROPELLER |
1 |
| 20 |
PAT40-04070000 |
63D-45941-00-00 |
PROPELLER ASSY |
1 |
| 21 |
PAT40-04000019 |
66T-45997-00 |
BUSH A, PROPELLER |
1 |
| 22 |
PAT40-04000020 |
90389-22M01 |
BUSH B, PROPELLER |
1 |
| 23 |
PAT40-04000021 |
90171-16011 |
NUT |
1 |
| 24 |
PAGB/T91-3.2x25 |
|
COTTER PIN Ø3.2x25 |
1 |
