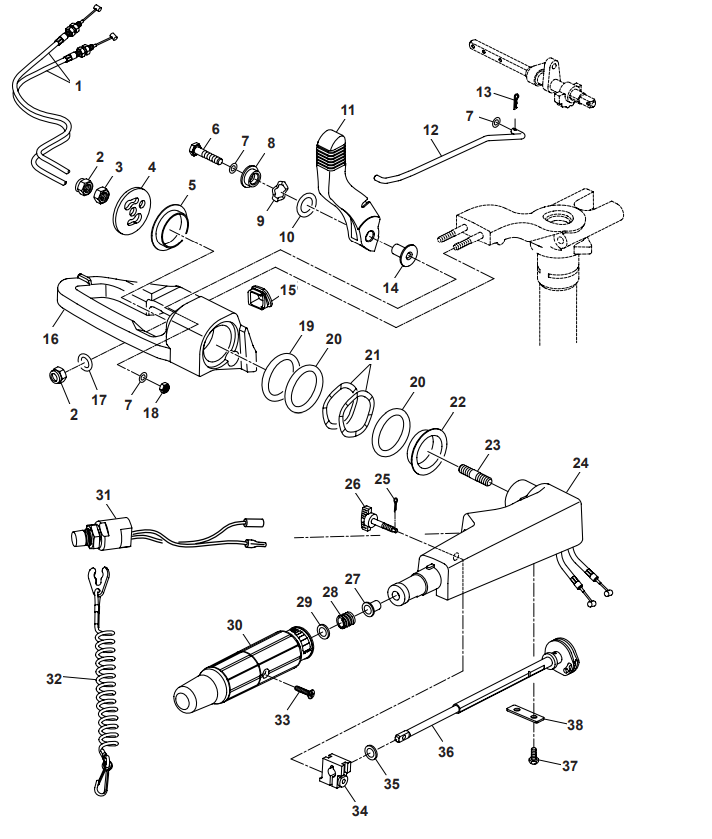

Steering
| NR: |
Bestelnummer: |
OEM: |
Omschrijving: |
Aantal: |
| 1 |
PAF40-01030101 |
|
THROTTLE CABLE ASSY |
1 |
| 2 |
PAGB/T889.2- M10x1.25 |
|
LOCKNUT M10x1.25 |
3 |
| 3 |
PAGB/T6170- M10x1.25 |
|
NUT M10x1.25 |
1 |
| 4 |
PAF15-01000013 |
65W-42131-01 |
ORIENTATION PLATE, HANDLE |
1 |
| 5 |
PAF15-01000011 |
90386-40M99 |
BUSHING, HANDLE (LOW) |
1 |
| 6 |
PAGB/T5782-M6x45 |
|
BOLT M6x45 |
1 |
| 7 |
PAGB/T97.1-6 |
92990-06600-00 |
WASHER 6 |
3 |
| 8 |
PAT40-00000006 |
|
BLOCK, HANDLE |
1 |
| 9 |
PAT40-00000005 |
|
WAVE WASHER |
1 |
| 10 |
PAT40-00000004 |
|
WASHER, HANDLE |
1 |
| 11 |
PAT40-00000002 |
|
HANDLE, GEAR SHIFT |
1 |
| 12 |
PAF40-00000001 |
|
CONNECTING ROD, GEAR SHIFT |
1 |
| 13 |
PAF15-00000012 |
90468-18008 |
CLIP |
1 |
| 14 |
PAT40-00000003 |
|
FLANGE TUBE |
1 |
| 15 |
PAT40-01020001 |
|
JACKET, HANDLE BRACKET |
1 |
| 16 |
PAF25-01030001 |
65W-42121-00 |
BRACKET, HANDLE |
1 |
| 17 |
PAGB/T97.1-10 |
|
WASHER 10 |
2 |
| 18 |
PAGB/T6170-M6 |
|
NUT M6 |
1 |
| 19 |
PAF15-01000012 |
90202-43M57 |
NYLON WASHER, BUSHING |
1 |
| 20 |
PAF15-01000008 |
90201-43M00 |
WASHER, BUSHING |
2 |
| 21 |
PAF15-01000009 |
90206-43M22 |
WAVE WASHER, BUSHING |
2 |
| 22 |
PAF15-01000007 |
66R-42171-00 |
BUSHING, HANDLE (HIGH) |
1 |
| 23 |
PAF15-01030003 |
|
BOLT, DOUBLE HEAD |
1 |
| 24 |
PAF15-01030001 |
65W-42101-01-4D |
HANDLE, STEERING |
1 |
| 25 |
PAGB/T91-Ø1.6x12 |
91401-25030-00 |
COTTER PIN Ø1.6x12 |
1 |
| 26 |
PAF15-01030200 |
65W-42125-00 |
BOLT, FRICTION ADJUSTING |
1 |
| 27 |
PAF4-01090006 |
90386-08032 |
BUSH |
1 |
| 28 |
PAF4-01090007 |
90501-23215 |
SPRING, COMPRESSION |
1 |
| 29 |
PAGB/T818-10 |
|
SMALL WASHER 10 |
1 |
| 30 |
PAF4-01090300 |
|
STEERING HANDLE ASSY |
1 |
| 31 |
PAT15-01020003 |
63V-82575-00 |
ENGINE STOP SWITCH ASSY |
1 |
| 31 |
PAF40-01020003BI |
|
ENGINE STOP SWITCH ASSY |
1 |
| 32 |
PAF4-01090401 |
682-82556-00 |
STOPER, HANG ROPE ASSY |
1 |
| 33 |
PAGB/T820-M5x25 |
|
SCREW, PAN HEAD M5x25 |
1 |
| 34 |
PAF4-01090003 |
6G1-42126-00 |
FRICTION |
1 |
| 35 |
PAF4-01090004 |
|
NYLON WASHER |
1 |
| 36 |
PAF15-01030100 |
65W-42138-00 |
THROTTLE LEVER ASSY |
1 |
| 37 |
PAGB/T5783-M6x20 |
97080-06020-00 |
BOLT M6x20 |
2 |
| Number: |
Order number: |
OEM: |
Description: |
Quantity: |
| 1 |
PAF40-01030101 |
|
THROTTLE CABLE ASSY |
1 |
| 2 |
PAGB/T889.2- M10x1.25 |
|
LOCKNUT M10x1.25 |
3 |
| 3 |
PAGB/T6170- M10x1.25 |
|
NUT M10x1.25 |
1 |
| 4 |
PAF15-01000013 |
65W-42131-01 |
ORIENTATION PLATE, HANDLE |
1 |
| 5 |
PAF15-01000011 |
90386-40M99 |
BUSHING, HANDLE (LOW) |
1 |
| 6 |
PAGB/T5782-M6x45 |
|
BOLT M6x45 |
1 |
| 7 |
PAGB/T97.1-6 |
92990-06600-00 |
WASHER 6 |
3 |
| 8 |
PAT40-00000006 |
|
BLOCK, HANDLE |
1 |
| 9 |
PAT40-00000005 |
|
WAVE WASHER |
1 |
| 10 |
PAT40-00000004 |
|
WASHER, HANDLE |
1 |
| 11 |
PAT40-00000002 |
|
HANDLE, GEAR SHIFT |
1 |
| 12 |
PAF40-00000001 |
|
CONNECTING ROD, GEAR SHIFT |
1 |
| 13 |
PAF15-00000012 |
90468-18008 |
CLIP |
1 |
| 14 |
PAT40-00000003 |
|
FLANGE TUBE |
1 |
| 15 |
PAT40-01020001 |
|
JACKET, HANDLE BRACKET |
1 |
| 16 |
PAF25-01030001 |
65W-42121-00 |
BRACKET, HANDLE |
1 |
| 17 |
PAGB/T97.1-10 |
|
WASHER 10 |
2 |
| 18 |
PAGB/T6170-M6 |
|
NUT M6 |
1 |
| 19 |
PAF15-01000012 |
90202-43M57 |
NYLON WASHER, BUSHING |
1 |
| 20 |
PAF15-01000008 |
90201-43M00 |
WASHER, BUSHING |
2 |
| 21 |
PAF15-01000009 |
90206-43M22 |
WAVE WASHER, BUSHING |
2 |
| 22 |
PAF15-01000007 |
66R-42171-00 |
BUSHING, HANDLE (HIGH) |
1 |
| 23 |
PAF15-01030003 |
|
BOLT, DOUBLE HEAD |
1 |
| 24 |
PAF15-01030001 |
65W-42101-01-4D |
HANDLE, STEERING |
1 |
| 25 |
PAGB/T91-Ø1.6x12 |
91401-25030-00 |
COTTER PIN Ø1.6x12 |
1 |
| 26 |
PAF15-01030200 |
65W-42125-00 |
BOLT, FRICTION ADJUSTING |
1 |
| 27 |
PAF4-01090006 |
90386-08032 |
BUSH |
1 |
| 28 |
PAF4-01090007 |
90501-23215 |
SPRING, COMPRESSION |
1 |
| 29 |
PAGB/T818-10 |
|
SMALL WASHER 10 |
1 |
| 30 |
PAF4-01090300 |
|
STEERING HANDLE ASSY |
1 |
| 31 |
PAT15-01020003 |
63V-82575-00 |
ENGINE STOP SWITCH ASSY |
1 |
| 31 |
PAF40-01020003BI |
|
ENGINE STOP SWITCH ASSY |
1 |
| 32 |
PAF4-01090401 |
682-82556-00 |
STOPER, HANG ROPE ASSY |
1 |
| 33 |
PAGB/T820-M5x25 |
|
SCREW, PAN HEAD M5x25 |
1 |
| 34 |
PAF4-01090003 |
6G1-42126-00 |
FRICTION |
1 |
| 35 |
PAF4-01090004 |
|
NYLON WASHER |
1 |
| 36 |
PAF15-01030100 |
65W-42138-00 |
THROTTLE LEVER ASSY |
1 |
| 37 |
PAGB/T5783-M6x20 |
97080-06020-00 |
BOLT M6x20 |
2 |
