Lower Casing & Drive 1
| NR: |
Bestelnummer: |
OEM: |
Omschrijving: |
Aantal: |
| 1 |
PAGB/T5783-M8x30 |
910113-0830 |
BOLT M8X30 |
4 |
| 2 |
PAT40-04000012 |
|
PLATE, WATER PUMP |
4 |
| 3 |
PAF60-04000401 |
63D-44311-01 |
WATER PUMP COVER |
1 |
| 4 |
PAT40-04000202 |
63D-44322-40 |

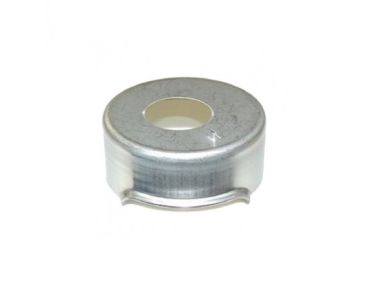

INNER SHELL, WATER PUMP |
1 |
| 5 |
PAF60-04000300 |
6H3-44352-00-00 |
IMPELLER, WATER PUMP |
1 |
| 6 |
PAT40-04000205 |
93210-59MG7 |
O-RING |
1 |
| 7 |
PAF25-04000007 |
93604-08062 |
PIN, DOWEL |
2 |
| 8 |
PAF60-04000009 |
63D-44323-00-00 |

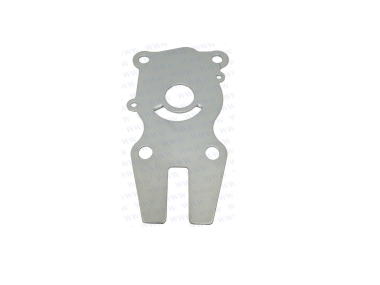

OUTER PLATE |
1 |
| 9 |
PAT40-04000010 |
63D-44316-00 |
GASKET, WATER PUMP SEAT |
1 |
| 10 |
PAF60-04000008 |
63D-45344-00 |
COVER, OIL SEAL |
1 |
| 11 |
PAT40-04040001 |
63D-44341-00 |

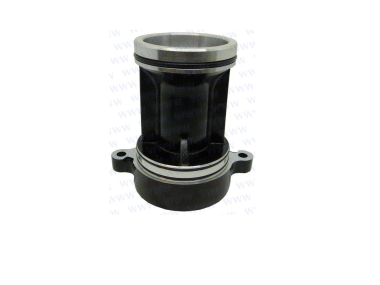

CASING A, OIL SEAL |
1 |
| 12 |
PAJASOF40424-50 |
93210-48001-00 |
O RING, OIL SEAL CASING |
1 |
| 13 |
PAF25-04010003 |
93101-22067 |
OIL SEAL, DRIVE SHAFT |
4 |
| 14 |
PAT40-04000008 |
90201-27M00 |
BIG WASHER |
1 |
| 15 |
PAF60-04010000 |
69W-45501-00 |

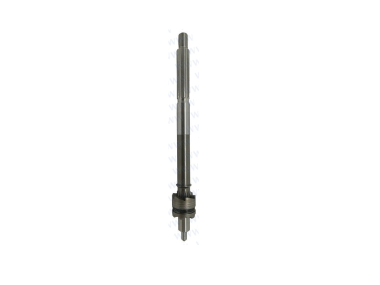

DRIVE SHAFT ASSY |
1 |
| 16 |
PAF25-04000015 |
90280-03M07 |
SEMICIRCULAR KEY |
1 |
| 17 |
PAT40-04000027 |
93332-00001-00 |
BEARING |
1 |
| 18 |
PAT40-04000003-1 |
663-45587-0100 |
SHIM(T: 0.10mm) |
|
| 18 |
PAT40-04000003-2 |
663-45587-1000 |
SHIM(T: 0.12mm |
|
| 18 |
PAT40-04000003-3 |
663-45587-2000 |
SHIM(T: 0.15mm) |
|
| 18 |
PAT40-04000003-4 |
663-45587-3000 |
SHIM(T: 0.18mm) |
|
| 18 |
PAT40-04000003-5 |
663-45587-4000 |
SHIM(T: 0. 30mm) |
|
| 18 |
PAT40-04000003-6 |
663-45587-5000 |
SHIM(T: 0. 40mm) |
|
| 18 |
PAT40-04000003-7 |
663-45587-6000 |
SHIM(T: 0. 50mm) |
|
| 19 |
PAT40-04000002 |
6H4-45536-00 |
BUSHING, NYLON |
1 |
| 20 |
PAT40-04000026 |
93315-32224-00 |
BEARING |
1 |
| 21 |
PAT85-04000011 |
93210-07003-00 |
OIL SEAL,CAM SHAFT 9x19x5 |
1 |
| 22 |
PAF60-04000101 |
63D-45321-00 |
COVER, SHIFTING CAM |
1 |
| 23 |
PAJASOF40431-035 |
93210-33MG4-00 |
O-RING |
1 |
| 24 |
PAJASOF40419-007 |
|
O-RING BOLT |
1 |
| 25 |
PAGB/T896-8 |
93430-06005 |
CIRCLIP 8 |
1 |
| 26 |
PA60-04000004 |
63D-44144-00 |
SHIFTING CAM |
1 |
| 27 |
PAF4-03000023 |
6E0-45316-09 |
PLUG, GEAR BOX |
1 |
| 28 |
PAF4-03000024 |
93210-06ME6 |
GASKET, GEAR BOX PLUG |
2 |
| 29 |
PAGB/T889.1-M5 |
95380-05600 |
NUT, LOCKING M5 |
1 |
| 30 |
PAT40-04000023 |
63D-45215-00 |
WATER INLET B |
1 |
| 31 |
PAF25-04000031 |
688-45341-10 |
PLUG, DRAIN |
1 |
| 32 |
PAF60-04000001 |
69W-45301-00-8D |
LOWER CASING |
1 |
| 33 |
PAT40-04000006 |
90170-12138 |
NUT, PINLON |
1 |
| 34 |
PAF60-04000002 |
69W-45551-00 |

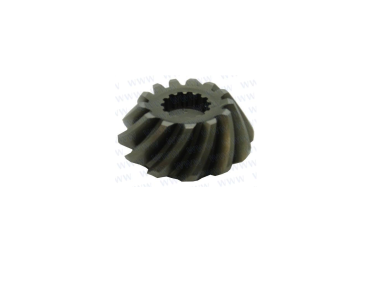

PINION |
1 |
| 35 |
PAT40-04000022 |
63D-45214-00 |
WATER INLET A |
1 |
| 36 |
PAGB/T820-M5x30 |
90152-05010 |
SCREW, PAN HEAD M5X30 |
1 |
| 37 |
PAF60-04000003 |
62Y-44151-00 |
SHIFTING CAM |
1 |
| 38 |
PAT40-04000004-1 |
663-45567-0100 |
SHIM (T:0.10 mm) |
|
| 38 |
PAT40-04000004-2 |
663-45567-1000 |
SHIM (T:0.12 mm) |
|
| 38 |
PAT40-04000004-3 |
663-45567-2000 |
SHIM (T:0.15 mm) |
|
| 38 |
PAT40-04000004-4 |
663-45567-3000 |
SHIM (T:0.18 mm) |
|
| 38 |
PAT40-04000004-5 |
663-45567-4000 |
SHIM (T:0.30 mm) |
|
| 38 |
PAT40-04000004-6 |
663-45567-5000 |
SHIM (T:0.40 mm) |
|
| 38 |
PAT40-04000004-7 |
663-45567-6000 |
SHIM (T:0.50 mm) |
|
| 39 |
PAKOYOHl-CAP332/32 |
|
ROLLER BEARING 332/32 |
1 |
| 40 |
PAF60-04000600 |
69W-45560-00 |
FORWARD GEAR ASSY |
1 |
| 41 |
PAF60-04020005 |
63D-45635-00 |
PLUNGER, SHIFTING |
1 |
| 42 |
PAT36-03000403 |
663-45634-00-00 |
SPACER, CLUTCH |
1 |
| 43 |
PAF60-04020002 |
90501-18001 |
SPRING, CLUTCH |
1 |
| 44 |
PAF60-04020003 |
62Y-45631-00 |
CLUTCH |
1 |
| 45 |
PAT40-04050004 |
90250-06023 |
PIN, CLUTCH |
1 |
| 46 |
PAT40-04050005 |
663-45633-00 |
ANNULAR SPRING, CLUTCH |
1 |
| 47 |
PAF60-04020001 |
63D-45611-00 |
PROPELLER SHAFT |
1 |
| 48 |
PAF60-04020000 |
|
PROPELLER SHAFT ASSY |
1 |
| 49 |
PAT40-04050007 |
90201-22429 |
WASHER, REVERSE GEAR |
1 |
| 50 |
PAF60-04000500 |
62Y-45571-00 |
REVERSE GEAR |
1 |
| 51 |
PAT40-04060005-L |
63D-45577-00-00 |
SHIM (T: 0.10 mm) |
|
| 51 |
PAT40-04060005-2 |
63D-4557710-00 |
SHIM (T: 0.12 mm) |
|
| 51 |
PAT40-04060005-3 |
63D-45577-2000 |
SHIM (T: 0.15 mm) |
|
| 51 |
PAT40-04060005-4 |
63D-45577-3000 |
SHIM (T: 0.18 mm) |
|
| 51 |
PAT40-04060005-5 |
63D-45577-4000 |
SHIM (T: 0.30 mm) |
|
| 51 |
PAT40-04060005-6 |
63D-45577-5000 |
SHIM (T: 0.40 mm) |
|
| 51 |
PAT40-04060005-7 |
63D-45577-6000 |
SHIM (T: 0.50 mm) |
|
| 52 |
PAT40-04000025 |
93306-001U1-00 |
BEARING |
1 |
| 53 |
PAF60-04030000 |
|
COVER ASSY, LOWER |
1 |
| 54 |
PAT40-04060002 |
93210-69MG6 |
O-RING A, COVER |
1 |
| 55 |
PAT40-04060003 |
93210-7477500 |
O-RING B, COVER |
2 |
| 56 |
PAT40-04060001 |
63D-45361-02-4D |
COVER, LOWER CASING |
1 |
| 57 |
PAT40-04000028 |
93317-22204-00 |
BEARING |
1 |
| 58 |
PAGB/T97.1-8 |
66M-11327-00-94 |
WASHER 8 |
2 |
| 59 |
PAGB/T5783-M8x25 |
97080-08025 |
BOLT M8x25 |
2 |
| 60 |
PAF60-04000000 |
69W-45300-00-4D |
LOWER CASING ASSY |
1 |
| Number: |
Order number: |
OEM: |
Description: |
Quantity: |
| 1 |
PAGB/T5783-M8x30 |
910113-0830 |
BOLT M8X30 |
4 |
| 2 |
PAT40-04000012 |
|
PLATE, WATER PUMP |
4 |
| 3 |
PAF60-04000401 |
63D-44311-01 |
WATER PUMP COVER |
1 |
| 4 |
PAT40-04000202 |
63D-44322-40 |
INNER SHELL, WATER PUMP |
1 |
| 5 |
PAF60-04000300 |
6H3-44352-00-00 |
IMPELLER, WATER PUMP |
1 |
| 6 |
PAT40-04000205 |
93210-59MG7 |
O-RING |
1 |
| 7 |
PAF25-04000007 |
93604-08062 |
PIN, DOWEL |
2 |
| 8 |
PAF60-04000009 |
63D-44323-00-00 |
OUTER PLATE |
1 |
| 9 |
PAT40-04000010 |
63D-44316-00 |
GASKET, WATER PUMP SEAT |
1 |
| 10 |
PAF60-04000008 |
63D-45344-00 |
COVER, OIL SEAL |
1 |
| 11 |
PAT40-04040001 |
63D-44341-00 |
CASING A, OIL SEAL |
1 |
| 12 |
PAJASOF40424-50 |
93210-48001-00 |
O RING, OIL SEAL CASING |
1 |
| 13 |
PAF25-04010003 |
93101-22067 |
OIL SEAL, DRIVE SHAFT |
4 |
| 14 |
PAT40-04000008 |
90201-27M00 |
BIG WASHER |
1 |
| 15 |
PAF60-04010000 |
69W-45501-00 |
DRIVE SHAFT ASSY |
1 |
| 16 |
PAF25-04000015 |
90280-03M07 |
SEMICIRCULAR KEY |
1 |
| 17 |
PAT40-04000027 |
93332-00001-00 |
BEARING |
1 |
| 18 |
PAT40-04000003-1 |
663-45587-0100 |
SHIM(T: 0.10mm) |
|
| 18 |
PAT40-04000003-2 |
663-45587-1000 |
SHIM(T: 0.12mm |
|
| 18 |
PAT40-04000003-3 |
663-45587-2000 |
SHIM(T: 0.15mm) |
|
| 18 |
PAT40-04000003-4 |
663-45587-3000 |
SHIM(T: 0.18mm) |
|
| 18 |
PAT40-04000003-5 |
663-45587-4000 |
SHIM(T: 0. 30mm) |
|
| 18 |
PAT40-04000003-6 |
663-45587-5000 |
SHIM(T: 0. 40mm) |
|
| 18 |
PAT40-04000003-7 |
663-45587-6000 |
SHIM(T: 0. 50mm) |
|
| 19 |
PAT40-04000002 |
6H4-45536-00 |
BUSHING, NYLON |
1 |
| 20 |
PAT40-04000026 |
93315-32224-00 |
BEARING |
1 |
| 21 |
PAT85-04000011 |
93210-07003-00 |
OIL SEAL,CAM SHAFT 9x19x5 |
1 |
| 22 |
PAF60-04000101 |
63D-45321-00 |
COVER, SHIFTING CAM |
1 |
| 23 |
PAJASOF40431-035 |
93210-33MG4-00 |
O-RING |
1 |
| 24 |
PAJASOF40419-007 |
|
O-RING BOLT |
1 |
| 25 |
PAGB/T896-8 |
93430-06005 |
CIRCLIP 8 |
1 |
| 26 |
PA60-04000004 |
63D-44144-00 |
SHIFTING CAM |
1 |
| 27 |
PAF4-03000023 |
6E0-45316-09 |
PLUG, GEAR BOX |
1 |
| 28 |
PAF4-03000024 |
93210-06ME6 |
GASKET, GEAR BOX PLUG |
2 |
| 29 |
PAGB/T889.1-M5 |
95380-05600 |
NUT, LOCKING M5 |
1 |
| 30 |
PAT40-04000023 |
63D-45215-00 |
WATER INLET B |
1 |
| 31 |
PAF25-04000031 |
688-45341-10 |
PLUG, DRAIN |
1 |
| 32 |
PAF60-04000001 |
69W-45301-00-8D |
LOWER CASING |
1 |
| 33 |
PAT40-04000006 |
90170-12138 |
NUT, PINLON |
1 |
| 34 |
PAF60-04000002 |
69W-45551-00 |
PINION |
1 |
| 35 |
PAT40-04000022 |
63D-45214-00 |
WATER INLET A |
1 |
| 36 |
PAGB/T820-M5x30 |
90152-05010 |
SCREW, PAN HEAD M5X30 |
1 |
| 37 |
PAF60-04000003 |
62Y-44151-00 |
SHIFTING CAM |
1 |
| 38 |
PAT40-04000004-1 |
663-45567-0100 |
SHIM (T:0.10 mm) |
|
| 38 |
PAT40-04000004-2 |
663-45567-1000 |
SHIM (T:0.12 mm) |
|
| 38 |
PAT40-04000004-3 |
663-45567-2000 |
SHIM (T:0.15 mm) |
|
| 38 |
PAT40-04000004-4 |
663-45567-3000 |
SHIM (T:0.18 mm) |
|
| 38 |
PAT40-04000004-5 |
663-45567-4000 |
SHIM (T:0.30 mm) |
|
| 38 |
PAT40-04000004-6 |
663-45567-5000 |
SHIM (T:0.40 mm) |
|
| 38 |
PAT40-04000004-7 |
663-45567-6000 |
SHIM (T:0.50 mm) |
|
| 39 |
PAKOYOHl-CAP332/32 |
|
ROLLER BEARING 332/32 |
1 |
| 40 |
PAF60-04000600 |
69W-45560-00 |
FORWARD GEAR ASSY |
1 |
| 41 |
PAF60-04020005 |
63D-45635-00 |
PLUNGER, SHIFTING |
1 |
| 42 |
PAT36-03000403 |
663-45634-00-00 |
SPACER, CLUTCH |
1 |
| 43 |
PAF60-04020002 |
90501-18001 |
SPRING, CLUTCH |
1 |
| 44 |
PAF60-04020003 |
62Y-45631-00 |
CLUTCH |
1 |
| 45 |
PAT40-04050004 |
90250-06023 |
PIN, CLUTCH |
1 |
| 46 |
PAT40-04050005 |
663-45633-00 |
ANNULAR SPRING, CLUTCH |
1 |
| 47 |
PAF60-04020001 |
63D-45611-00 |
PROPELLER SHAFT |
1 |
| 48 |
PAF60-04020000 |
|
PROPELLER SHAFT ASSY |
1 |
| 49 |
PAT40-04050007 |
90201-22429 |
WASHER, REVERSE GEAR |
1 |
| 50 |
PAF60-04000500 |
62Y-45571-00 |
REVERSE GEAR |
1 |
| 51 |
PAT40-04060005-L |
63D-45577-00-00 |
SHIM (T: 0.10 mm) |
|
| 51 |
PAT40-04060005-2 |
63D-4557710-00 |
SHIM (T: 0.12 mm) |
|
| 51 |
PAT40-04060005-3 |
63D-45577-2000 |
SHIM (T: 0.15 mm) |
|
| 51 |
PAT40-04060005-4 |
63D-45577-3000 |
SHIM (T: 0.18 mm) |
|
| 51 |
PAT40-04060005-5 |
63D-45577-4000 |
SHIM (T: 0.30 mm) |
|
| 51 |
PAT40-04060005-6 |
63D-45577-5000 |
SHIM (T: 0.40 mm) |
|
| 51 |
PAT40-04060005-7 |
63D-45577-6000 |
SHIM (T: 0.50 mm) |
|
| 52 |
PAT40-04000025 |
93306-001U1-00 |
BEARING |
1 |
| 53 |
PAF60-04030000 |
|
COVER ASSY, LOWER |
1 |
| 54 |
PAT40-04060002 |
93210-69MG6 |

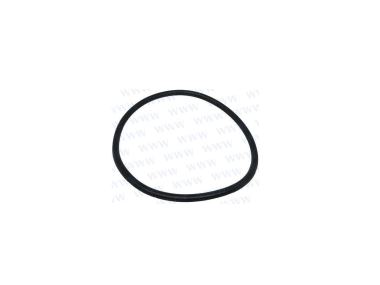

O-RING A, COVER |
1 |
| 55 |
PAT40-04060003 |
93210-7477500 |
O-RING B, COVER |
2 |
| 56 |
PAT40-04060001 |
63D-45361-02-4D |
COVER, LOWER CASING |
1 |
| 57 |
PAT40-04000028 |
93317-22204-00 |
BEARING |
1 |
| 58 |
PAGB/T97.1-8 |
66M-11327-00-94 |
WASHER 8 |
2 |
| 59 |
PAGB/T5783-M8x25 |
97080-08025 |
BOLT M8x25 |
2 |
| 60 |
PAF60-04000000 |
69W-45300-00-4D |
LOWER CASING ASSY |
1 |
Brands
Accessories
Engines
Spare Parts
Blog
