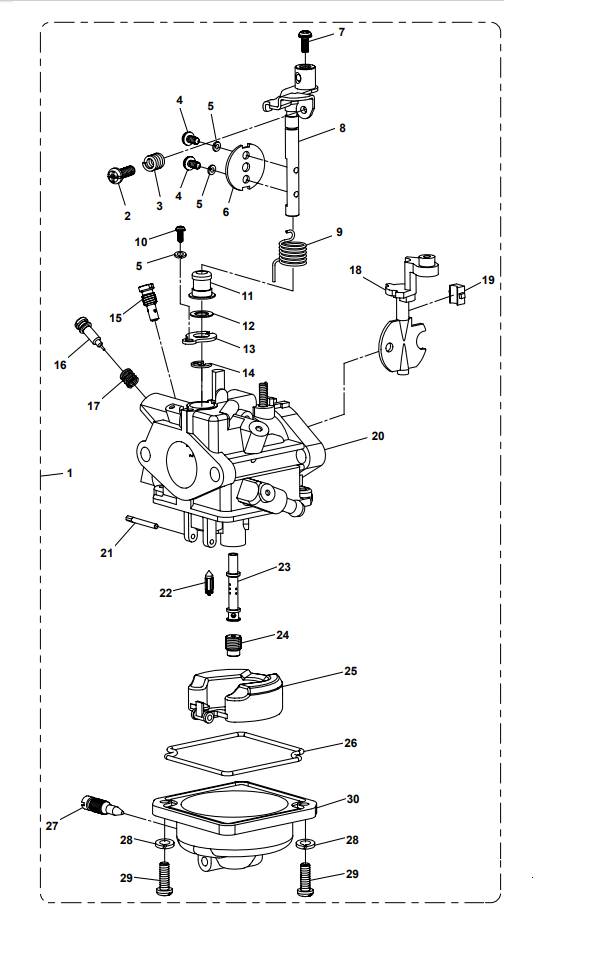

Carburetor Assembly
| Nummer: |
Bestelnummer: |
Origineel onderdeelnummer: |
Omschrijving: |
Aantal stuks: |
| 1 |
PAF6-04060000 |
|
CARBURETOR ASSY |
1 |
| 2 |
PAF6-04060006 |
|
SCREW, AIR ADJUSTING |
1 |
| 3 |
PAF6-04060007 |
|
SPRING |
1 |
| 4 |
PAGB/T818-M3x6 |
|
SCREW M3x6 |
2 |
| 5 |
PAGB/T93-3 |
|
SPRING WASHER 3 |
3 |
| 6 |
PAF6-04060008 |
|
APRON, ACCELERATOR |
1 |
| 7 |
PAGB/T818-M4x8 |
|
SCREW M4x8 |
1 |
| 8 |
PAF6-04060100 |
|
ACCELERATOR BAR ASSY |
1 |
| 9 |
PAF6-04060002 |
|
SPRING, SWING LINK |
1 |
| 10 |
PAGB/T818-M3x8 |
N/a |
SCREW M3x8 |
1 |
| 11 |
PAF6-04060003 |
|
BUSHING |
1 |
| 12 |
PAF6-04060004 |
|
WASHER, NYLON |
1 |
| 13 |
PAF6-04060005 |
|
PRESSING PLATE |
1 |
| 14 |
PAGB/T896-4 |
|
CIRCLIP 4 |
1 |
| 15 |
PAF6-04060013 |
|
JET, AIR ADJUSTING |
1 |
| 16 |

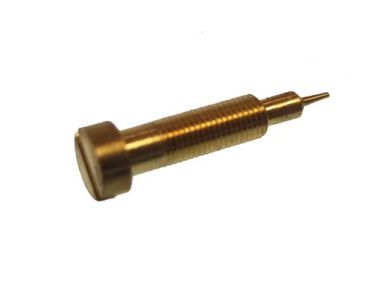

PAF6-04060011 |
|
SCREW, MIXTURE |
1 |
| 17 |

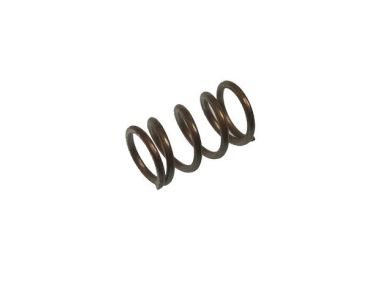

PAF6-04060012 |
|
SPRING |
1 |
| 18 |
PAF6-04060009 |
|
APRON, AIR CHOKE |
1 |
| 19 |
PAF6-04060010 |
|
BLOCK, AIR CHOKE |
1 |
| 20 |
PAF6-04060001 |
|
BODY, CARBURETOR |
1 |
| 21 |
PAF6-04060016 |
|
PIN, FLOAT |
1 |
| 22 |

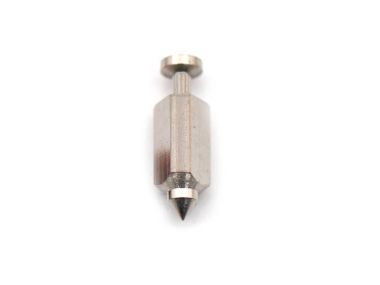

PAF6-04060014 |
|
NEEDLE VALVE |
1 |
| 23 |

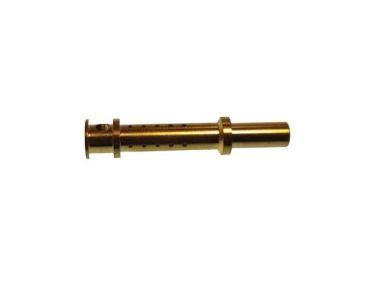

PAF6-04060017 |
|
MAIN NOZZLE |
1 |
| 24 |
PAF6-04060018 |
|
MAIN JET |
1 |
| 25 |
PAF6-04060015 |
|
FLOAT |
1 |
| 26 |

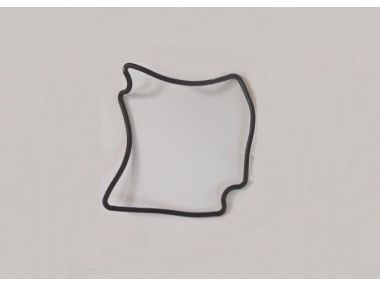

PAF6-04060020 |
|
SEAL RING |
1 |
| 27 |
PAF6-04060021 |
|
SCREW, DRAIN |
1 |
| 28 |
PAGB/T93-4 |
|
SPRING WASHER 4 |
2 |
| 29 |
PAGB/T818-M4x12 |
|
SCREW M4x12 |
2 |
| 30 |
PAF6-04060019 |
|
BODY, OIL CUP |
1 |
