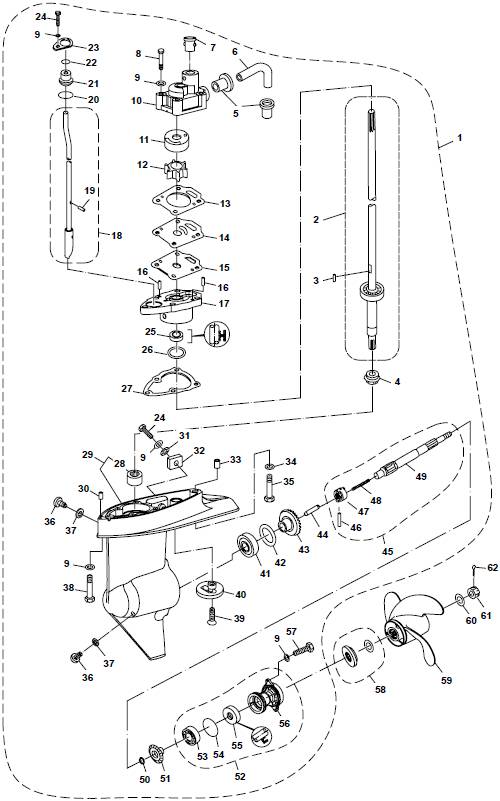

Lower Casing

Nummer: Bestelnummer: Gelijk aan: OEM: Omschrijving:
1 PAF6-03000000L   825132T16 LOWER CASING ASSY (L)
1 PAF6-03000000S   825132T15 LOWER CASING ASSY (S)
2 PAF6-03000100L REC45-8M0076368 45-16136 1 DRIVE SHAFT ASSY (L)
2 PAF6-03000100S REC45-161351 45-16135 1 DRIVE SHAFT ASSY (S)
3 PAT5-03000009   16155 DOWEL PIN, IMPELLER
4 PAT5-03000003     PINION
5 PAT5-03000013   16168 SEAL A, WATER PIPE
6 PAT5-03000012   16167 WATER PIPE B
7 PAT5-03000014   16171 SEAL B, WATER PIPE
8 PAGB/T5782-M6x45   161251 BOLT M6x45
9 PAGB/T97.1-6   92995-06600 WASHER 6
10 PAF6-03000001 16156 16156, 46-16156 WATER PUMP
11 PAF6-03000002 REC16157 16157 INNER SHELL, WATER PUMP
12 PAT5-03000300 REC47-161543 47-16154 3 IMPELLER, WATER PUMP
13 PAF6-03000003 27-16158009 27-16158009 UPPER GASKET, OUTER PLATE
14 PAT5-03000007 REC16159 16159 OUTER PLATE
15 PAT5-03000006 27-16160004 27-16160004 LOWER GASKET, OUTER PLATE
16 PAF25-04000007   93604-08062 PIN Ø4x10
17 PAT5-03000201   826053T WATER PUMP SEAT
18 PAT5-03000100 (L)     CAM ASSY, SHIFT ROD (L)
18 PAT5-03000100 (S)     CAM ASSY, SHIFT ROD (S)
19 PAGB/T879.2-1.5x12   16179 PIN 1.5x12
20 PAJISB2401P16   16178 O-RING 15.8x2.4
21 PAT5-03000020   16176 ORIENTED BUSHING, SHIFT ROD
22 PAT5-03000022   161771 SEAL B, ORIENTED BUSHING
23 PAT5-03000023   16165 PLATE, ORIENTED BUSHING
24 PAGB/T5783-M6x16     BOLT M6x16
25 PAT5-03000202   16162 OIL SEAL, WATER PUMP SEAT
26 PAT5-03000004-1   161631 SHIM 0.10mm
26 PAT5-03000004-2   8132761 SHIM 0.15mm
27 PAT5-03000005 27-16164003 27-16164003 GASKET, WATER PUMP SEAT
28 PATLA1412Z     NEEDLE BEARING
29 PAT5-03000700     LOWER CASING ASSY
30 PAT5-00000001     HOLLOW PIN Ø7.5x10
31 PAGB/T861.1-6     LOCK WASHER 6
32 PAT5-03000017 CM3H6-60218-000 875208 ANODE SQUARE
33 PAT5-00000002     HOLLOW PIN Ø9.5x10
34 PAGB/T97.1-8   66M-11327-00-94 WASHER 8
35 PAGB/T5782-M8x40   16126 BOLT M8x40
35 PAGB/T5782-M8x167     BOLT M8x167
36 PAF4-03000023   6E0-45316-09, 22-95368 3 PLUG, OIL HOSE
37 PAF4-03000024   90340-08002, 27-95220 GASKET
38 PAGB/T5782-M6x45   161251 BOLT M6x45
38 PAGB/T5782-M6x172     BOLT M6x172
39 PAGB/T820-M6x20   16134 SCREW M6x20
40 PAT5-03000016   16133 WATER INLET
41 PAGB/T276-6004   16128 BEARING 6004
42 PAF8-04000002-1   16141 SHIM 0.10mm
42 PAF8-04000002-2   813277 SHIM 0.15mm
43 PAT5-03010000 REC43-812944 812944 FORWARD GEAR ASSY
44 PAT5-03000404   16152 PIN, CLUTCH
45 PAT5-03000400     SHAFT ASSY, PROPELLER
46 PAGB/T879.1-3.5x28   16150 PIN 3.5x28
47 PAT5-03000403   812946 CLUTCH, DOG
48 PAT5-03000402   17667 SPRING, CLUTCH
49 PAT5-03000401 REC44-195133 19513 3 SHAFT, PROPELLER
50 PAT5-03000015   16140 WASHER, REVERSE GEAR
51 PAT5-03000600 REC43-8129451 812945 1 REVERSE GEAR ASSY
52 PAT5-03000500     COVER ASSY, LOWER CASING
53 PAGB/T276-6002   16132 BEARING 6002
54 PAJASOF404 31-050   16131 O-RING
55 PAF8-04040004 REC26-16130 16130 OIL SEAL
56 PAT5-03000501   825118T COVER, LOWER CASING
57 PAGB/T5783-M6x20   97095-06020 BOLT M6x20
58 PAT5-03000800   16145Q01 CUSHION ASSY, PROPELLER SHAFT
59 PAF6-03010000     PROPELLER ASSY
60 PAGB/T96-10   16146 WASHER 10
61 PAF15-06000016 REC11-16147Q 90171-10M01,  16147 NOTCH NUT
62 PAGB/T91-3.2x18   815026 PIN, COTTER Ø3.2x18
63 REC30-95347   30-95347 BEARING
View as Grid List

Items 1-24 of 65

Page
per page
Set Descending Direction
  1. Add to Wish List

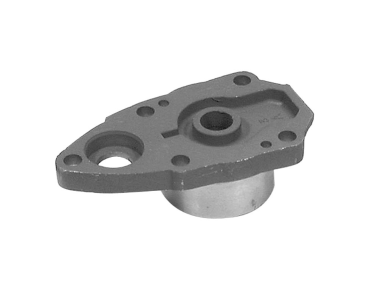

    USED: Mercury/parsun/Mariner 4/5/6 hp under water pump 826053T
    USED: Mercury/parsun/Mariner 4/5/6 hp under water pump 826053T
    €15.00 €15.00
  2. Add to Wish List

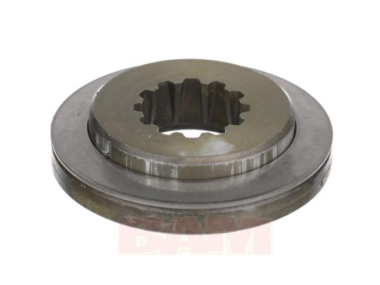

    USED: Mercury / Parsun 4/5/6 hp propeller spacer 16145Q01
    USED: Mercury / Parsun 4/5/6 hp propeller spacer 16145Q01
    €9.95 €9.95
  3. Add to Wish List
    Yamaha / Mercury / Tohatsu / Parsun Oil Plug (90340-08002, 953683)
    Yamaha / Mercury / Tohatsu / Parsun Oil Plug (90340-08002, 953683)
    As low as €4.95 €4.09
  4. Add to Wish List

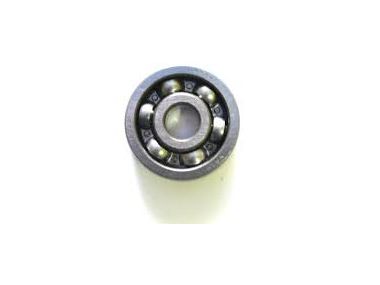

    Mercury / Mariner / Parsun Bearing 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (30-95347)
    Mercury / Mariner / Parsun Bearing 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (30-95347)
    As low as €10.95 €9.05
  5. Add to Wish List

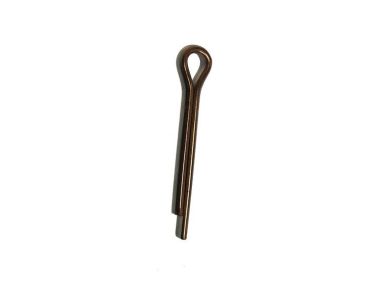

    Mercury/Parsun Cotter Pin Ø3.2x18 4/5 HP 2-Stroke + 4/5/6 HP 1 Cyl 4-Stroke (815026)
    Mercury/Parsun Cotter Pin Ø3.2x18 4/5 HP 2-Stroke + 4/5/6 HP 1 Cyl 4-Stroke (815026)
    As low as €4.95 €4.09
  6. Add to Wish List

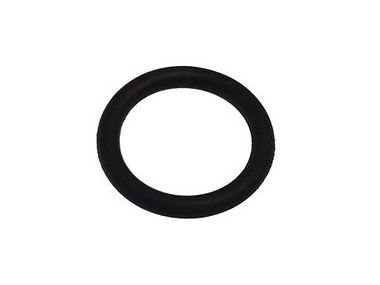

    Mercury / Parsun O-Ring 15.8x2.4 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (16178)
    Mercury / Parsun O-Ring 15.8x2.4 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (16178)
    As low as €4.95 €4.09
  7. Add to Wish List
    Mercury / Parsun Upper Gasket, Outer Plate 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (27-16158009)
    Mercury / Parsun Upper Gasket, Outer Plate 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (27-16158009)
    As low as €4.95 €4.09
  8. Add to Wish List
    Mercury / Parsun Lower Casing Assy S 4/5 HP 2-stroke + 4/5/6 HP 1 cyl 4-stroke (825132T15)
    Mercury / Parsun Lower Casing Assy S 4/5 HP 2-stroke + 4/5/6 HP 1 cyl 4-stroke (825132T15)
    As low as €125.00 €125.00
  9. Add to Wish List
    Mercury / Parsun Lower Casing Assy L 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (825132T16)
    Mercury / Parsun Lower Casing Assy L 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (825132T16)
    As low as €150.00 €150.00
  10. Add to Wish List
    Yamaha/Mercury/Parsun Washer 10 Propeller RVS Nut Ring / Spacer (90201-10M01)
    Yamaha/Mercury/Parsun Washer 10 Propeller RVS Nut Ring / Spacer (90201-10M01)
    As low as €4.95 €4.09
  11. Add to Wish List
    Mercury / Parsun Cover, Lower Casing 4/5 HP 2-stroke + 4/5/6 HP 1 cyl 4-stroke (825118T)
    Mercury / Parsun Cover, Lower Casing 4/5 HP 2-stroke + 4/5/6 HP 1 cyl 4-stroke (825118T)
    As low as €26.95 €22.27
  12. Add to Wish List

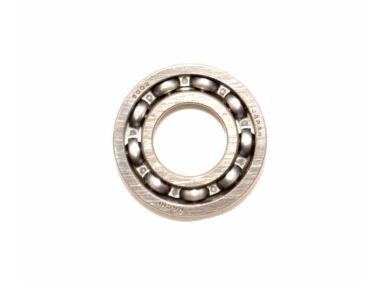

    Mercury / Parsun Bearing 6002 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (16132)
    Mercury / Parsun Bearing 6002 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (16132)
    As low as €10.95 €9.05
  13. Add to Wish List

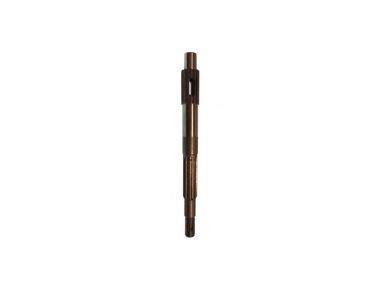

    Mercury / Parsun Shaft, Propeller 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (195133)
    Mercury / Parsun Shaft, Propeller 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (195133)
    As low as €69.95 €57.81
  14. Add to Wish List
    Yamaha / Mercury / Parsun Spring, Clutch 4/5 HP 2-stroke + 4/5/6 HP 1 cyl 4-stroke (17667)
    Yamaha / Mercury / Parsun Spring, Clutch 4/5 HP 2-stroke + 4/5/6 HP 1 cyl 4-stroke (17667)
    As low as €4.95 €4.09
  15. Add to Wish List

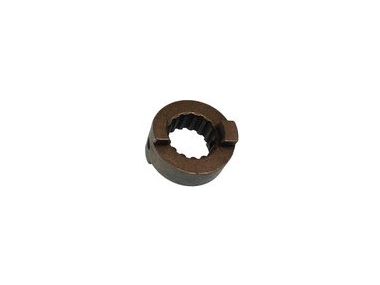

    Mercury / Parsun Clutch, Dog 4/5 HP 2-stroke + 4/5/6 HP 1 cyl 4-stroke (812946)
    Mercury / Parsun Clutch, Dog 4/5 HP 2-stroke + 4/5/6 HP 1 cyl 4-stroke (812946)
    As low as €31.95 €26.40
  16. Add to Wish List
    Mercury / Parsun Bearing 6004 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (16128)
    Mercury / Parsun Bearing 6004 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (16128)
    As low as €13.95 €11.53
  17. Add to Wish List

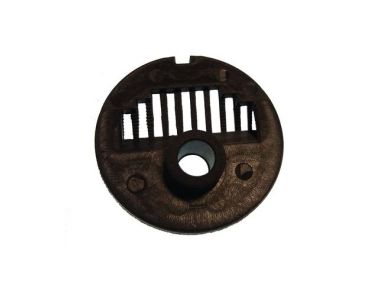

    Mercury / Parsun Water Inlet 4/5 HP 2-stroke + 4/5/6 HP 1 cyl 4-stroke (16133)
    Mercury / Parsun Water Inlet 4/5 HP 2-stroke + 4/5/6 HP 1 cyl 4-stroke (16133)
    As low as €4.95 €4.09
  18. Add to Wish List

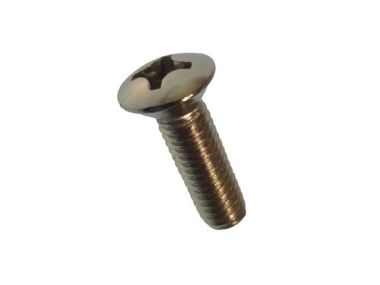

    Mercury / Parsun Screw M6x20 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (16134)
    Mercury / Parsun Screw M6x20 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (16134)
    As low as €4.95 €4.09
  19. Add to Wish List

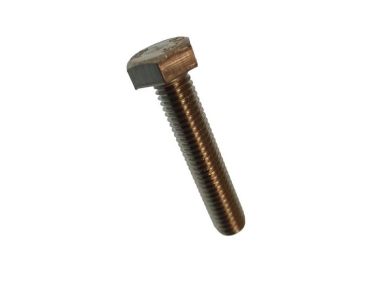

    Mercury / Parsun Bolt M8x40 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (16126)
    Mercury / Parsun Bolt M8x40 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (16126)
    As low as €4.95 €4.09
  20. Add to Wish List

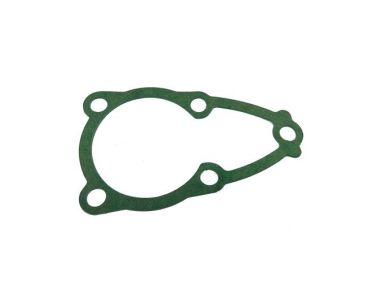

    Mercury / Parsun Gasket, Water Pump Seat 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (27-16164003)
    Mercury / Parsun Gasket, Water Pump Seat 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (27-16164003)
    As low as €4.95 €4.09
  21. Add to Wish List

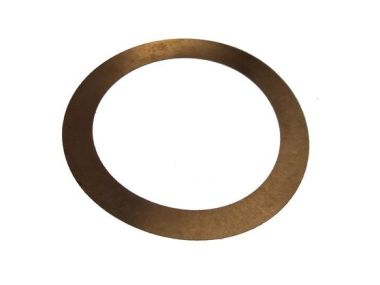

    Mercury / Parsun Shim 0.15mm 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (8132761)
    Mercury / Parsun Shim 0.15mm 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (8132761)
    As low as €4.95 €4.09
  22. Add to Wish List

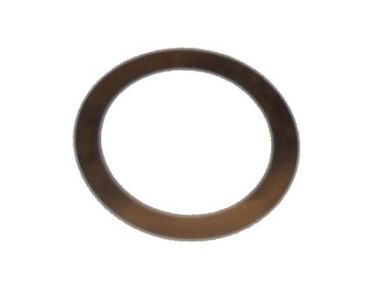

    Mercury / Parsun Shim 0.10mm 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (161631)
    Mercury / Parsun Shim 0.10mm 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (161631)
    As low as €4.95 €4.09
  23. Add to Wish List
    Yamaha / Mercury / Parsun Bolt M6x16 (PAGB/T5783-M6x16)
    Yamaha / Mercury / Parsun Bolt M6x16 (PAGB/T5783-M6x16)
    As low as €4.95 €4.09
  24. Add to Wish List

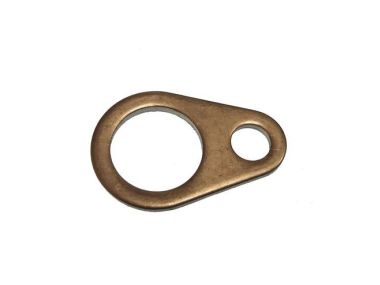

    Mercury / Parsun Plate, Oriented Bushing 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (16165)
    Mercury / Parsun Plate, Oriented Bushing 4/5 hp 2-stroke + 4/5/6 hp 1 cyl 4-stroke (16165)
    As low as €4.95 €4.09
