| Nummer: |
Bestelnummer: |
OEM: |
Omschrijving: |
| 1 |
PAF8-04000001 |
803732A2 |
LOWER CASING |
| 2 |
PAF4-03000024 |
90430-08020-00, 332-60006-0, 95220 |
GASKET |
| 3 |
PAF4-03000023 |
90340-08002-00, 332-60005-2, 95368 3 |
PLUG, OIL HOSE |
| 4 |
PAF8-04000017 |
|
WATER INLET |
| 5 |
PAGB/T823-M4X25 |
|
SCREW M4X25 |
| 6 |
PAGB/T889.1-M4 |
|
NUT, HEXAGON M4 |
| 7 |
PAGB/T5783-M6X25 |
10-82500925 |
BOLT, HEXAGON M6X25 |
| 8 |
PAGB/T97.1-6 |
92990-06600-00 |
WASHER 6 |
| 9 |

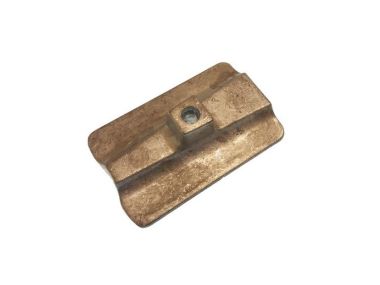

PAF8-04000018 |
|
ANODE |
| 10 |
PAGB/T5783-M6X35 |
10-88348935 |
BOLT, HEXAGON M6X35 |
| 11 |
PAF2.6-03000009 |
93210-05001 |
O-RING |
| 12 |
PAGB/T276-6004 |
16128 |
BEARING 6004 |
| 13 |
PAF8-04040002 |
345-65015-0, 345-65015-0, 16131 |

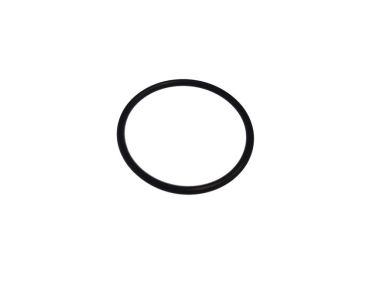

O-RING |
| 14 |
PAF8-04000014 |
3B2-64030-0, 3B2-64030-0, 803741 1 |

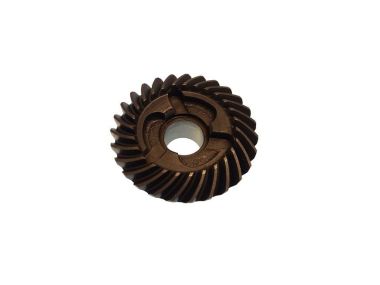

GEAR, REVERSE |
| 15 |
PAF8-04040001 |
3B2S60101-0, 3B2S60101-0, 8037632T03 |
COVER, LOWER CASING |
| 16 |
PAF8-04000012 |
369-64032-0, 369-64032-0, 16140 |

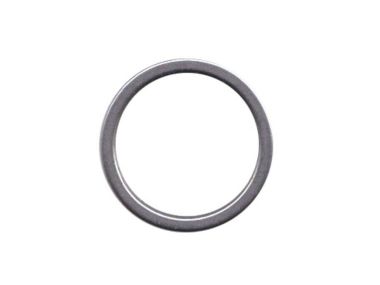

WASHER |
| 17 |
PAGB/T6170-M5 |
|
NUT, HEXAGON M5 |
| 18 |
PAF8-04000004-1 |
3B2-64023-0, 3B2-64023-0, 853795 5 |
SHIM 0.10mm |
| 18 |
PAF8-04000004-2 |
|
SHIM 0.15mm |
| 18 |
PAF8-04000004-3 |
|
SHIM 0.20mm |
| 19 |

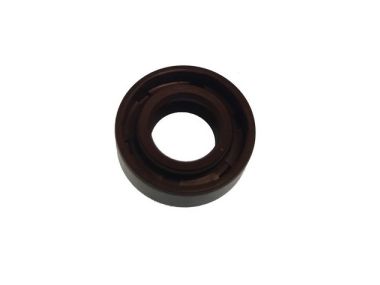

PAF8-04040004 |
369-60111-0, 369-60111-0, 16130 |
OIL SEAL |
| 20 |
PAF8-04040000 |
3B2S60100-0, 3B2S60100-0 |
COVER ASSY, LOWER CASING |
| 21 |
PAF8-04000016 |
3V1-60041-0, 3V1-60041-0, 895155 |
GASKET, WATER SEAL |
| 22 |
PAF8-04000015 |
3V1-60042-0, 3V1-60042-0, 895156 |
WATER SEAL |
| 23 |
PAF8-04020001(L) |
3V1-64307-1, 3V1-64307-1, 803738005 |
DRIVE SHAFT ASSY (LARGE) |
| 23 |
PAF8-04020001(S) |
3V1-64306-1, 803738004 |
DRIVE SHAFT ASSY (SMALL) |
| 24 |
PAF8-04000007 |
350-65025-0, 3B2-65025-0, 803753 1 |
OUTER PLATE |
| 25 |
PAF8-04000006 |
3B2-65029-0, 3B2-65029-0, 16158 6 |
GASKET, OUTER PLATE |
| 26 |
PAF8-04000011 |
|
PLATE, O-RING |
| 27 |
PAF8-04000101 |
309-60111-0, 309-60111-0, 95348 |
OIL SEAL |
| 28 |
PAF8-04000005 |
3B2-65020-0, 3B2-65020-0, 16158 7 |
GASKET, WATER PUMP SEAT |
| 29 |
PAF8-04000008 |
3B2-65018-0, 3B2-65018-0, 16158 5 |
GASKET, OUTER PLATE |
| 30 |
PAF8-04000200 |
3B2-65021-1, 3B2-65021-1, 803748 1 |
IMPELLER |
| 31 |

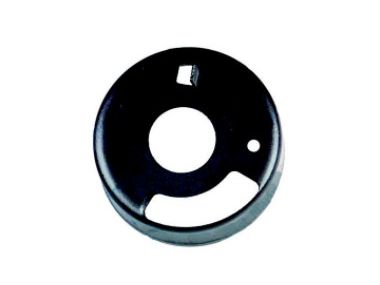

PAF8-04000010 |
3B2-65011-0, 3B2-65011-0, 803751 1 |
INNER SHELL, WATER PUMP |
| 32 |

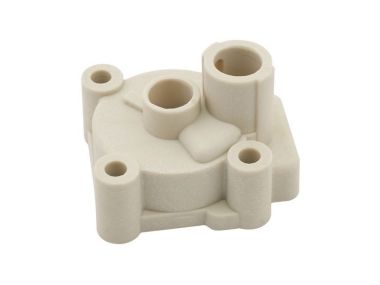

PAF8-04000009 |
3B2-65016-0, 3B2-65016-0, 803750A02 |
WATER PUMP |
| 33 |
PAF8-04000301 |
3V1-64211-0, 3V1-64211-0, 803744002 |
SHAFT, PROPELLER |
| 34 |
PAF8-04000302 |
3V1-64221-0, 3V1-64221-0, 892777002 |

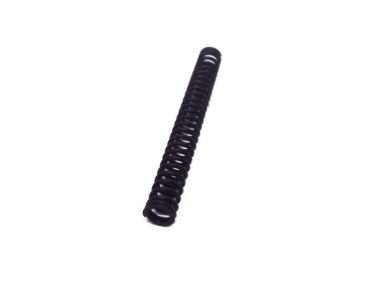

SPRING, CLUTCH |
| 35 |
PAF8-04000305 |
369-64223-0, 369-64223-0, 16152 |

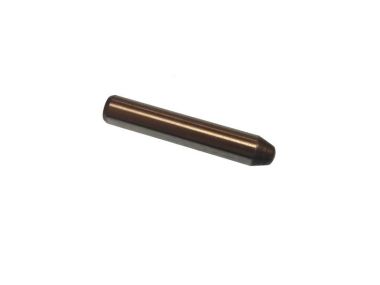

PIN, CLUTCH |
| 36 |

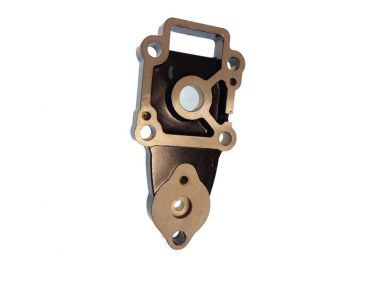

PAF8-04000102 |
803750A01, 3B2-64215-0 |
WATER PUMP SEAT |
| 37 |

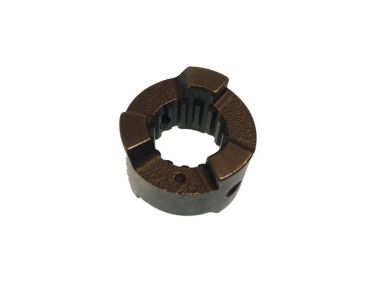

PAF8-04000303 |
3B2-64215-0, 803745 1 |
CLUTCH, DOG |
| 38 |
PAGB/T879.1-3.5X28 |
|
PIN 3.5X28 |
| 39 |
PAF8-04010000 |
3B2-64010-0, 3B2-64010-0, 803739 1 |

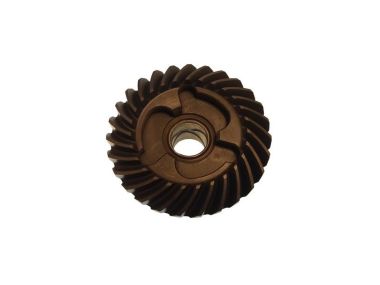

GEAR,FORWARD |
| 40 |
PAGB/T276-6204 |
8037331 |
BEARING 6204 |
| 41 |
PAF8-04000012-1 |
369-64014-0, 369-64014-0, 16141 |

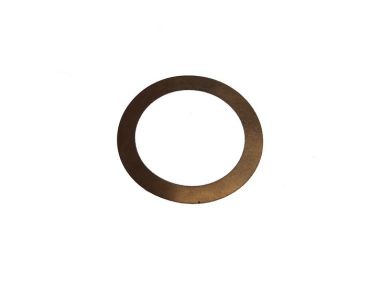

SHIM 0.10mm |
| 41 |
PAF8-04000012-2 |
369-64015-0, 369-64015-0, 813277 |
SHIM 0.15mm |
| 42 |
PAF8-04000003 |
3B2-64020-0, 3B2-64020-0, 803740 1 |
PINION |
| 43 |
PAF8-04030000(L) |
|
CAM ASSY, SHIFT ROD (LARGE) |
| 43 |
PAF8-04030000(S) |
|
CAM ASSY, SHIFT ROD (SMALL) |
| 44 |
PAF8-04000021 |
3B2-65022-0, 3B2-65022-0, 95218 11 |
PIN,DOWER |
| 45 |
PAGB/T5783-M6X50 |
|
BOLT HEXAGON M6X50 |
| 46 |
PAF8-04000000L |
|
LOWER CASING ASSY (LARGE) |
| 46 |
PAF8-04000000S |
|
LOWER CASING ASSY (SMALL) |
| 47 |
PAGB/T818-M5X6 |
|
SCREW M5X6 |
| 48 |
PAGB/T5783-M6X25 |
10-88348935 |
BOLT, HEXAGON M6X25 |
| 49 |
PAF8-04000019 |
3B2-64230-1, 3B2-64230-1, 803743002 |
CUSHION, PROPELLER |
| 50 |

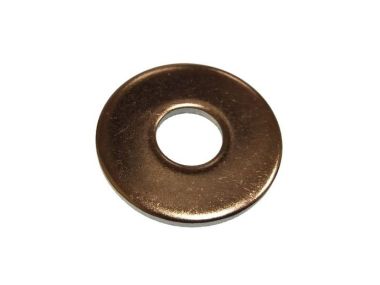

PAF8-04000020 |
|
WASHER, PROPELLER SHAFT |
| 51 |
PAF8-04050000 |
3B2B645170, 3B2W64517-0 |
PROPELLER ASSY |
| 52 |
PAGB/T96-10 |
16146 |
WASHER 10 |
| 53 |
PAF15-06000016 |
90171-10M01, 369-64121-0, 16147 |
NUT, HEXAGON |
| 54 |
PAGB/T91-2.5X20 |
|
PIN,COTTER |
| 55 |

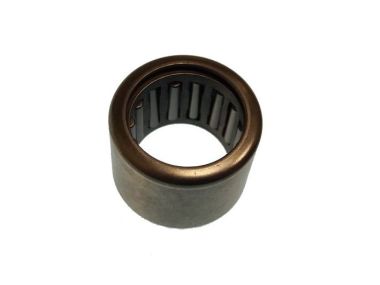

PANSK FJ-1516 |
3V1-60211-0 |
BEARING |
| 56 |
PAGB/T861.1-6 |
|
LOCK WASHER 6 |
| 57 |
PAF8-04040003 |
|
BEARING |
| 58 |
PAF8-04000013 |
3B2-65016-0, 3B2-65016-0, 804903 |
SEAL |
| 59 |
PAF8-0400000L |
8M0135931 |
COMPLETE GEAR HOUSING (LARGE) |
| 59 |
PAF8-0400000S |
895154T02 |
COMPLETE GEAR HOUSING (SMALL) |
