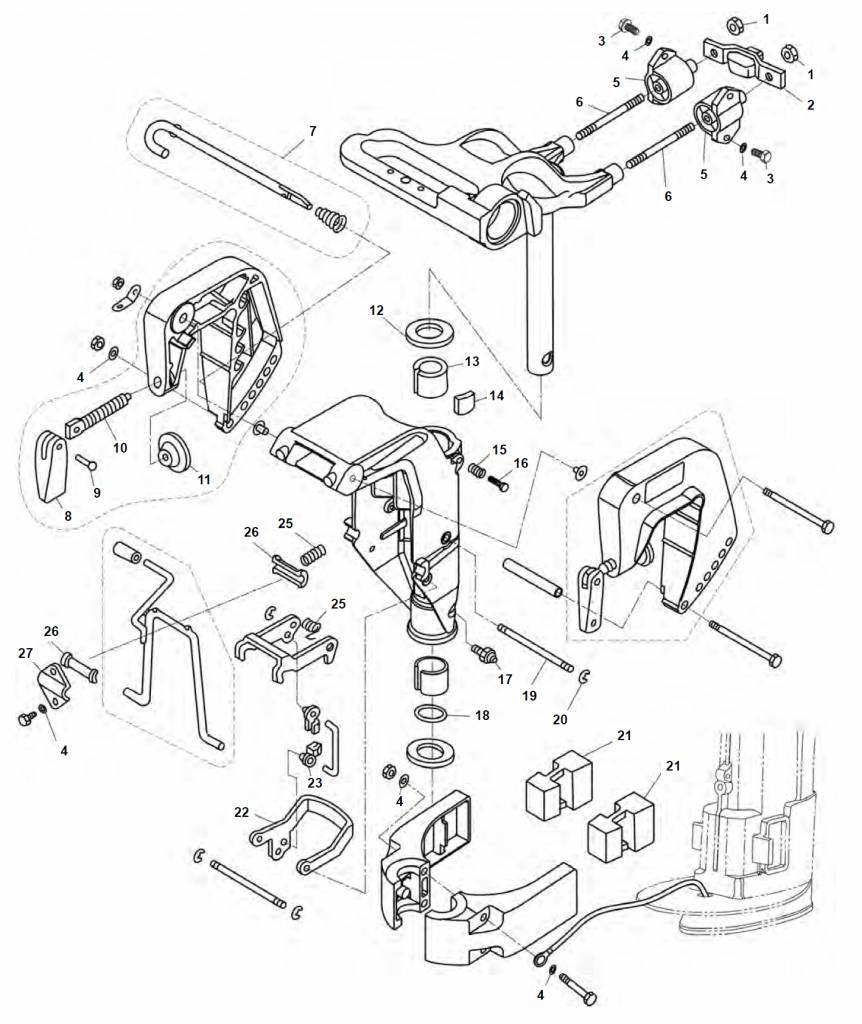

MFS8 / MFS9.8 HP Bracket
| Nummer: | Bestelnummer: | Tohatsu OEM: | Omschrijving: |
| 1 | PAGB/T889.1-M8 | 3V1-61324-0 | NUT M8 |
| 2 | PAF8-00000100 | 3V1-61333-1 | ABSORBER (FRONT) |
| 3 | PAGB/T5783-M6X20 | 910184-5620 | BOLT M6x20 |
| 4 | PAGB/T97.1-6 | 910184-5620 | WASHER |
| 5 | PAF8-02000100 | 3V1-61301-1, 940113-0800 | ABSORBER ASSY |
| 6 | PAF8-01000003 | 3V1-61313-0 | DICEPHALOUS BOLT M8x65 |
| 7 | PAF8-01010200 | 350-62121-1, 369-62122-2 | THRUST ROD ASSY |
| 8 | PAF4-01010004 | 332S62102-1 | CLAMP HANDLE, STERN |
| 9 | PAF4-01010005 | 3C8-62104-1 | RIVET, CLAMP HANDLE |
| 10 | PAF4-01010002 | 398-62103-0 | CLAMP SCREW |
| 11 | PAF4-01010003 | 332-62101-0 | CLAMP PAD |
| 12 | PAF8-01000001 | 350-62423-0 | WASHER, ROTARY BRACKET |
| 13 | PAF8-01000002 | 350-62417-0 | BUSHING |
| 14 | PAF8-01000100 | 345-62441-0 | LOCKING BLOCK ASSY |
| 15 | PAF8-01010102 | 346-62421-1 | SPRING, LOCKING |
| 16 | PAGB/T5783-M8X30 | 910113-0830 | BOLT M8x30 |
| 17 | PAJB/T7940.1-M6 | 344-67177-0 | OILER M6 |
| 18 | PAJASO F404 35-022 | 350-62415-0 | O-RING Ø22.4xø3.5 |
| 19 | PAF8-01010108 | 3B2-66321-1 | SHAFT, ROTARY BRACKET |
| 20 | PAGB/T896-5 | 945303-0500 | CIRCLIP5 |
| 21 | PAF8-00000002 | 3V1-61302-0 | ABSORBER |
| 22 | PAF8-01010106 | 3V1-66313-0 | OUTER FRAME, ROTARY BRACKET |
| 23 | PAF8-01010112 | 3K9-05223-0 | TIE-IN, CONNECTING ROD |
| 24 | PAF8-01010109 | 3B2-66315-0 | SPRING, WREST |
| 25 | PAF8-01010104 | 369-66112-1 | SPRING, SUPPORT |
| 26 | PAF8-01010103 | 393-62437-0 | PIN |
| 27 | PAF8-01010105 | 369-62439-1 | PRESS PLATE |
-
