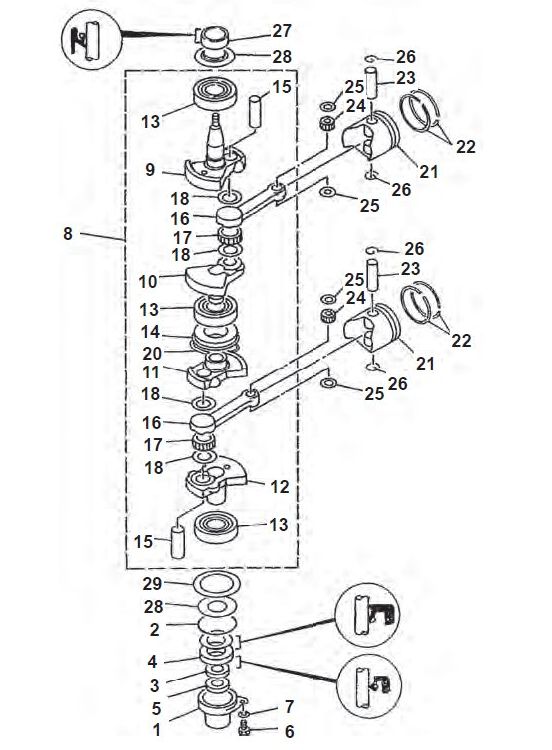

9.9 / 15 HP 2-Stroke Crankshaft
| Nummer: | Bestelnummer: | Yamaha OEM: | Omschrijving: |
| 2 | REC93210-46M16 | 93210-46M16 | O-ring |
| 3 | REC93101-25018 | 93101-25018 | Oil seal |
| 4 | REC93102-25M48 | 93102-25M48 | Oil seal |
| 5 | REC93101-13018 | 93101-13018 | Oil seal |
| 7 | PAGB/T97.1-85 | 92995-06600 | WASHER |
| 9 | REC63V-11412-00 | 63V-11412-00 | Crank 1 |
| 10 | REC63V-11422-00 | 63V-11422-00 | Crank 2 |
| 11 | REC63V-11432-00 | 63V-11432-00 | Crank 3 |
| 12 | REC63V-11442-00 | 63V-11442-00 | Crank 4 |
| 13 | REC93306-205U7 | 93306-205U7 | Bearing |
| 14 | REC63V-11515-02 | 63V-11515-02 | Seal, labyrinth 1 |
| 15 | REC682-11681-00 | 682-11681-00 | Pin, crank 1 |
| 16 | REC650-11651-00 | 650-11651-04 | Rod, connecting |
| 17 | REC93310-620V5 | 93310-620V5 | Bearing |
| 18 | REC90209-20M23 | 90209-20M23 | Washer |
| 20 | REC93440-52009 | 93440-52009 | CIRCLIP |
| 21 | REC6E7-11631-00 | 6E7-11631-00-97 | Piston (STD) |
| 21 | REC6E7-11635-00 | 6E7-11635-00 | Piston (0.25MM o/s) |
| 21 | REC6E7-11636-00 | 6E7-11636-00 | Piston (0.50MM o/s) |
| 22 | REC682-11610-01 | 682-11610-01 | Ring set (STD) |
| 22 | REC682-11610-11 | 682-11610-11 | Ring set (0.25MM o/s) |
| 22 | REC682-11610-21 | 682-11610-21 | Ring set (0.50MM o/s) |
| 23 | REC634-11633-00 | 634-11633-00 | Pin. Piston |
| 24 | REC93602-14104 | 93602-14104 | Pin, Dowel |
| 25 | REC90201-14377 | 90201-14377 | Washer plate |
| 26 | REC93450-15023 | 93450-15023 | Circlip |
| 27 | REC93110-23M00 | 93110-23M00 | Oil Seal |
| 28 | REC63V-11445-00 | 63V-11445-00 | Spacer |
| 29 | REC90201-46M29 | 90201-46M29 | Washer plate |
-
Yamaha O-ring 9.9 to 80 hp 93210-46M16As low as €7.95 €6.57
-
Yamaha Oil seal housing (6B4-15396-00-CA)As low as €89.95 €74.34
-

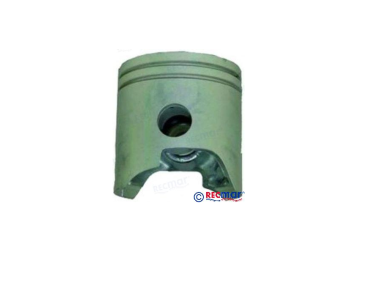

Yamaha PISTON KIT (0.50) 6E7-11636-00€54.95 €45.41
