150 / 200 HP V6 Cylinder

Nr.	Bestelnummer:	Yamaha OEM:	Omschrijving:
	REC6G5-W0078-A1	6G5-W0078-A1	Water pump kit
	REC6E5-W0001-F1	6G5-W0001-C1	Gearcase seal kit
1	REC416-A20	64D-45300-02-8D	LOWER UNIT ASSY 20”
1	REC416-A25	64D-45300-22-8D	LOWER UNIT ASSY 25”

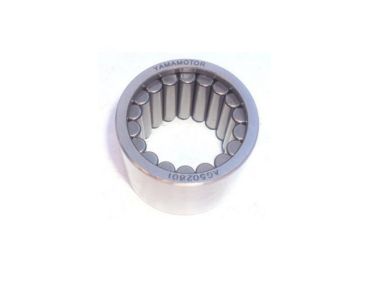

3	REC93311-928U5	93311-928U5	Bearing
4	REC93332-000V3	93332-000V3	Bearing
6	MAL9-72653	90340-08002	Plug, Straight screw
7	MAL9-72652	688-45341-10	Plug drain
8	REC90430-08020-00	90430-08020	Gasket
9	GLM38300	6E5-44365-00	Damper, Water seal
11	GLM38301	6E5-44366-00	Damper, Water seal
12	GLM12883	6J9-45371-01	TAB-TRIM
13	REC6E5-45987-00	6E5-45987-01	Spacer
14	REC688-45997-00	688-45997-01	Spacer
15	GLM21221	92990-18200	Washer
16	REC90171-18M04	90171-18M04	Nut, Castle
17	REC91490-40030	91490-40030	Pin, cotter
20	GLM84240	93210-58144	O-ring
21	REC93106-09014	93106-09014	Oil seal
26	REC6E5-44311-00	6E5-44311-00	HOUSTING, WATER PUMP
26	MAL9-43252	61A-44311-01	Housing, water pump
27	REC61A-44322-02	61A-44322-02	INSERT, CARTRIDGE
27	REC6E5-44322-00	6E5-44322-00	INSERT, CARTRIDGE
28	REC93210-86M38	93210-86M38	O-ring
29	REC93210-37160	93210-37160	O-ring
30	GLM38300	6E5-44365-00	Damper, Water seal
32	GLM89930	6E5-44352-01	Impeller
33	REC90280-04M05	90280-04M05	Key, Woodruff
34	REC6G5-44323-00	6G5-44323-00	Outer plate, Cartridge
35	REC6E5-44315-00	6E5-44315-A0	Gasket, Water pump
36	GLM12808	93606-12019	Pin, dowel
37	REC90119-08M14	90119-08M14	Bolt, With washer
38	REC6E5-45331-00-94	6E5-45331-00	Housing bearing
39	REC93101-28M16	93101-28M16	Oil seal
40	REC93317-330U2	93317-330U2	Bearing
42	REC93341-930V2	93341-930V2	Bearing
43	GLM84215	93210-55M14	O-ring
44	REC6E5-45344-00	6E5-45344-00	Cover, Oil seal
47	REC6G5-45501-21	6G5-45501-21	Drive shaft comp.
48	REC6G5-45551-00	6G5-45551-01	Pinion
49	REC90170-16M01	90170-16M01	Nut
50	REC6G5-45560-00	6G5-45560-01	Gear
51	REC93315-425V3	93315-425V3	Bearing
52	REC6J9-45611-00	6J9-45611-01	Shaft, Propeller
59	REC90250-08M07	90250-08M07	Pin, Straight
60	REC6G5-45631-00	6G5-45631-00	Clutch dog
61	REC6E5-45633-01	6E5-45633-01-00	Ring, Cross pin
63	REC93306-209U0	93306-209U0	Bearing
64	REC6G5-45570-00	6G5-45571-02	Gear
66	REC93315-43061	93315-43061	Bearing
67	REC93101-30M17	93101-30M17	Oil seal
68	REC93210-97M55	93210-97M55	O-ring
70	REC90201-30M92	90201-30M92	Washer, plate
72	REC6G5-45383-01	6G5-45383-01	Washer, claw
73	REC6G5-45384-00	6G5-45384-00	Nut
74	REC61A-45527-00	61A-45527-00	COLLAR
75	REC61A-45538-00	61A-45538-00	SPACER
76	REC90201-22M01	90201-22M01	WASHER
77	REC90206-22M19	90206-22M19	WASHER
78	REC6J9-45332-00-CA	6J9-45332-00-CA	BEARING CARRIER
79	REC6G5-44150-02	6G5-44150-02	SHIFT SHAFT
80	REC6E5-45321-00	6E5-45321-00	SHIFT COVER
81	REC99001-08600-00	99001-08600	BEARING
82	REC6G5-45536-01	6G5-45536-01	LUBE SLEEVE
83	REC90501-11M10-00	90501-11M10	SPRING
84	REC6E5-45378-00	6E5-45378-00	SHIFTER
85	REC6E5-45641-03	6E5-45641-03	PITOT
86	REC93507-32031	93507-32031	BALL
87	REC93503-16003	93503-16003	BALL
88	REC93511-32027	93511-32027	BALL
89	REC90501-16M37	90501-16M37	SPRING
90		6G5-45567-01	SHIM
91		6G5-45577-02	SHIM
92		6G5-45576-10	SHIM
