75A / 85A

Nr.	Bestelnummer:	Yamaha OEM:	Omschrijving:
	GLM12282	692-W0078-02	Water pump kit
	GLM87837	688-W0001-22	Gearcase seal kit
3	REC93315-325V1	93315-325V1	Bearing
4	REC90430-12072	90430-12072	Gasket
5	REC663-44366-00	663-44366-00	Damper, Water seal
6	REC93332-000U3	93332-000U3	Bearing
7	GLM12808	93606-12019	Pin, dowel
8	REC93332-000W7	93332-000W7	Bearing
9	MAL9-72653	90340-08002	Plug, Straight screw
10	REC688-45341-00	688-45341-10	Plug, drain
11	REC90430-08020-00	90430-08020	Gasket
12	REC688-45987-00	688-45987-01	Spacer
13	GLM22178	67F-45997-00	Spacer
14	GLM21223	90389-25M00	Bush
15	REC90171-16011	90171-16011	Nut. Castle
16	REC91490-40025	91490-40025	Pin, cotter
17	REC93210-49046	93210-49046	O-ring
18	REC93106-09014	93106-09014	Oil seal
21	REC688-44311-01	688-44311-01	Housing, water pump
22	REC688-44322-00	688-44322-00	Insert, Cartridge
24	REC688-44315-00	688-44315-A0	Gasket, Water pump
25	GLM89920	688-44352-03	Impeller
26	REC90280-04M04	90280-04M04	Key, Woodruff
27	REC688-44341-01	688-44341-01-94	Housing, water pump
28	REC93101-25M03	93101-25M03	Oil seal
29	REC93210-46044	93210-46044	O-ring
30	REC688-44316-00	688-44316-A0	Gasket, Water pump
31	REC688-44323-00	688-44323-00	Outer plate, Cartridge
32	REC688-44324-00	688-44324-A0	Gasket, cartrigde
33	PAF25-04000007	93604-10M03	Pin, dowel
34	REC97075-10040	97075-10040	Bolt, With washer
35	REC90119-08M13	90119-08M13	Bolt, With washer
36	REC688-45501-11	688-45501-11	Drive shaft comp.
37	REC688-45551-00	688-45551-01	Pinion
38	REC90170-16M01	90170-16M01	Nut
39	REC688-45560-00	688-45560-00	Pinion

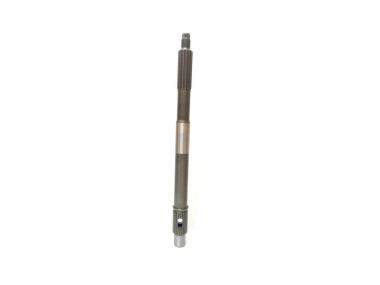

40	REC688-45611-00	688-45611-00	Shaft, Propeller

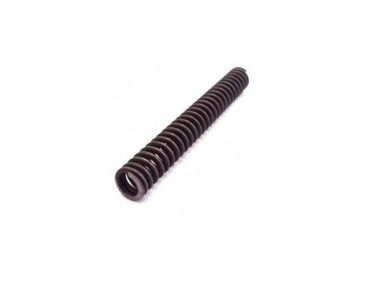

41	REC90501-16233	90501-16233	Spring, compression
42	REC688-45634-00	688-45634-00	Slide, shift
43	REC688-45631-00	688-45631-01	Clutch, dog
44	REC90250-07M02	90250-07M02	Pin, Straight
45	REC688-45633-00	688-45633-00	Ring, Cross pin
46	REC688-45635-00	688-45635-00	Plunger, shift
47	REC688-45570-00	688-45571-01	Pinion
48	REC688-45331-00-94	688-45331-00-94	Housing, bearing
49	REC93306-207U0	93306-207U0	Bearing
50	GLM12744	6E5-45371-10	Tab-trim
51	CM688-45371-02	688-45371-02	Tab-trim
52	REC93210-85M97	93210-85M97	O-ring
53	REC93317-325U0	93317-325U0	Bearing
54	REC93101-25M03	93101-25M03	Oil seal
55	REC688-45383-01	688-45383-02	Washer, claw
56	REC688-45384-00	688-45384-00	Nut
57	REC90282-04010	90282-04010	Key, straight
58	REC663-44151-00	663-44151-00	Cam, shift
59	REC663-44144-01	663-44144-01	Rod, shift
60	REC99001-08600-00	99001-08600	Circlip
	SOL3411-140-11	6E5-45954-00-EL	Propeller
