F2.5

Nummer |
Bestelnummer: |
R.O.: |
Omschrijving: |
1 |
PAF2.6-03000001 |
69M-G5311-00-4D |
Lower casing |
2 |
PAF2.6-03000003 |
6L5-45316-09 |
Bearing |
3 |
PAF2.6-03000004 |
93103-09M41 |
Oil seal |
4 |
PAF2.6-03000007 |
69M-G5315-A0 |
Gasket water pump |
5 |
PAF2.6-03000009 |
93210-05001 |

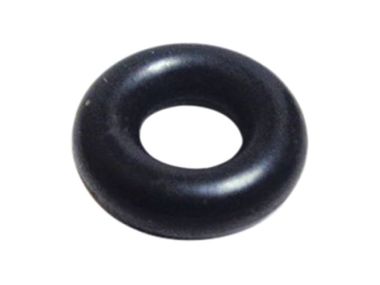

O ring |
6 |
PAF4-03000013 |
93604-18080 |
Pin |
7 |
PAF2.6-03000008 |
69M-G5321-00-94 |
Housing water pump |
8 |
PAF2.6-03000010 |
69M-G4323-00 |
Out plate |
9 |
PAF2.6-03000100 |
6L5-44352-00 |
Impeller assy |
10 |
PAF2.6-03000015 |
6L5-44322-00 |
Cover inner water pump |
11 |
PAJASOF404-19-033 |
93210-33M85 |
O ring |
12 |
PAF2.6-03000014 |
69M-G4311-00 |
Water pump housing |
13 |
PAF4-03000021 |
6R0-44366-00 |
Rubber tube water pump |
14 |
PAF2.6-03000016 |
69M-G4328-00 |
Plate water pump fixed |
15 |
PAGB/T5783-2000 |
97095-06040 |
Bolt |
16 |
PAF2.6-03000011L |
69M-G5511-00 |
Drive shaft |
17 |
PAF2.6-03000013 |
93604-07M13 |
Pin |
18 |
PAF2.6-03000012 |
93440-08819 |
Bolt discharging oil |
19 |
PAF2.6-03000020 |
69M-G5635-00 |
Plug shift |
20 |
PANTN16003EY |
93316-003Y0 |
Ball bearing |
21 |
PAF2.6-03000019 |
6L5-45560-00 |

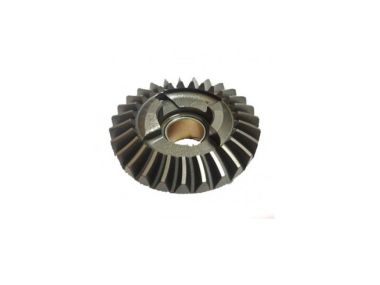

Positive gear assy |
22 |
PAF2.6-03000202 |
6L5-45631-00 |
Clutch blok |
23 |
PAF4-03030003 |
90501-10064 |

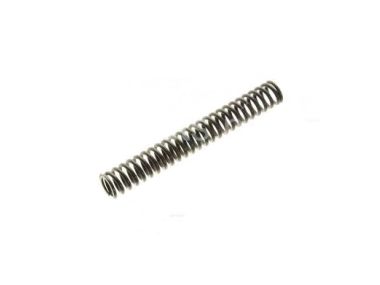

Spring clutch blok |
24 |
PAF2.6-030000201 |
6L5-45631-00 |
Shaft propeller |
25 |
PAF2.6-03000021 |
90201-13198 |
Washer |
26 |
PAJISB 2401-P48 |
93210-48214 |
O ring |
27 |
PAF2.6-03000301 |
69M-G5361-00-4D |
Cover lower casing |
28 |
PAF4-03050002 |
93101-13M12 |
Oil seal |
29 |
PAGB/T97.1-85 |
97095-06016 92995-06600 |
Washer |
30 |
PAGB/T5783-2000 |
68D-E5362-00 |
Bolt |
31 |
PAF2.6-03000002 |
6L5-45317-09 |
Bearing |
32 |
PAF2.6-03000017 |
6L5-45533-00-20 |
Shim (t:2.0mm) |
33 |
PAF2.6-03000018 |
6L5-45551-00 |
Initiative gear |
34 |
PAGB/T-896-86 |
99001-06600 |
Circlip |
35 |
PAF4-03000024 |
90430-08020 |
Gasket |
36 |
PAF4-03000023 |
90340-08002 |
Plug oil hole |
37 |
PAF2.6-03000302 |
|

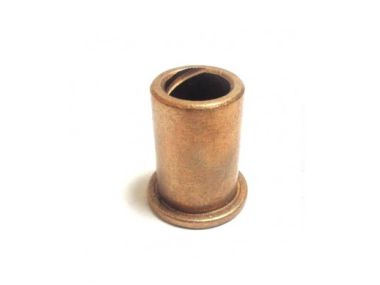

Bearing sleeve |
38 |
PAF2.6-03000300 |
|
Cover assy lower casing |
39 |
PAF2.6-0300000L |
69M-G5300-01-4D |
Complete gear housing large |
39 |
PAF2.6-0300000S |
69M-G5300-00-4D |
Complete gear housing small |
40 |
PAF2.6-02000003 |
69M-44361-00 |
Water tube |
41 |
PAF4-02040002 |
68D-G4365-00 |
I shaped rubber band |
42 |
PAF15-00000013 |
93604-12M07 |
Pin |
43 |
PAF4-03000025 |
68D-G5978-00 |
Spacer |
44 |
PAF2.6-03010000 |
6L5-45943-00-EL |
Propeller assy |
45 |
PAF4-03000026 |
90201-08M54 |
Washer |
46 |
PAF4-03080000 |
6L5-45616-00 |
Nut assy |
47 |
PAGB/T91-86 |
91490-25030 |
Pin cotter |
48 |
PAF4-03000022 |
68D-G5251-00 |
Anode |
49 |
PAGB/T861.1-87 |
92990-06300 |

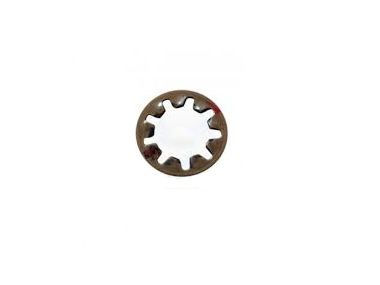

Washer internal tooch |
50 |
PAGB/T5783-2000 |
95895-06020 |
Bolt |
51 |
PAGB/T97.1-85 |
|
Washer |
52 |
PAGB/T5783-2000 |
97095-06030 |
Bolt |
