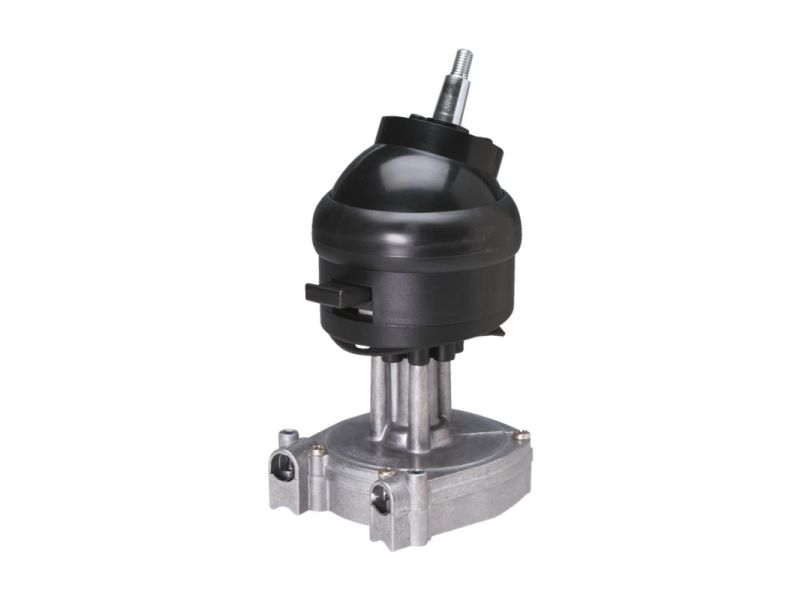

Ultraflex Steering System T81FC
Tilt range of 48° and five locking positions
Fast connect, simple installation
Tilt device eliminates underdash movement
Standard 3/4” tapered shaft – stainless steel
All stainless steel cable output ends
Corrosion resistant materials
T81FC steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
X52 tilt mechanism fits Ultraflex tilt mount rotary and rack and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except SilverSteer™ and MasterDrive™steering systems
Technical data
M66 steering cable stroke: 228 mm (9")
Lock-to-lock steering wheel turns: approx. 3,8
Max. dash depth: 25,4 mm (1")
Max. steering wheel diameter: 406 mm (16")
Min. steering cable bend radius: 200 mm (7.9")
