Cylinder & Crankcase

Yamaha Parsun Outer Cover, Exhaust.jpg

Nummer: Bestelnummer: OEM: Omschrijving:
1 PAF25-05010000 65W-15100-00-94 CRANKCASE ASSY
2 PAF25-00000014 93608-12063 PIN, DOWEL
3 PAGB/T5782-2000   BOLT, HEXAGON
4 PAGB/T5782-2000   BOLT, HEXAGON
5 PAF25-05000007 65W-15121-00 CRANKCASE
6 PAGB/T3452.1-1992 65W-15663-00 SEAL
7 PAGB/T5783-2000 68D-E5362-00 BOLT, HEXAGON
8 PAF25-05010108 65W-11169-00 GASKET ,BREATHER COVER
9 PAF25-05010109 65W-11168-00 COVER,BREATHER
10 PAGB/T5783-2000 68D-E5362-00 BOLT, HEXAGON
11 PAF25-05010106 65W-11119-00 HANGER,ENGINE
12 PAGB/T5782-2000   BOLT, HEXAGON
13 PAF15-04000002 90340-14M00 BOLT,OIL DRAIN
14 PAF15-04000003 90430-14115 WASHER
15 PAF25-00000013 65W-11351-00 GASKET,ENGINE
16 PAF4-04000030 90467-09M09 SPRING,FUEL PIPE’’B’’
17 PAF25-05000100 5GH-13440-00 OIL CLEANER
18 PAF4-04000036 68D-E1168-00 THERMOSTAT
19 PAF15-07010022 62Y-12414-00 GASKET, THERMOSTAT
20 PAF15-07010021 6H3-12413-00-00 COVER, THERMOSTAT
21 PAGB/T5783-2000 68D-E5362-00 BOLT
22 PAGB/T97.1-85 66M-11327-00-94 WASHER 6
23 PAGB/T97.1-85 66M-11327-00-94 WASHER 8
24 PAF25-05010113 62Y-11372-01 NIPPLE,HOSE
25 PAF25-05010107 65W-13286-00 CLEANER
26 PAF25-05010112 65W-41113-00-94 OUTER COVER, EXHAUST
27 PAF25-03000008 90445-09068, 90445-092K100 HOSE
28 PAHT-2.5x60 61A-14455-00-00 CLAMP
29 PAF15-05000011 688-24378-00 THREE-WAY PIPE
30 PAF25-03000011 90445-09105, 90445-092K1 HOSE
31 PAF25-03000009 90445-09010, 90445-09095 HOSE
32 PAF15-07010003 90401-20M00 BOLT, UNION
33 PAF25-05010111 65W-41114-00 GASKET, EXHAUST OUTER COVER
34 PAF25-05050100 65W-11111-02-94 CYLINDER ASSY
35 PAF25-00000014 93608-12063 PIN,DOWEL
36 PAF25-05040000 65W-11181-10 GASKET , CYLINDER HEAD
37 PAF25-05050104   VALVE GUIDE BUSH
38 PAF15-07040105   CIRCLIP, GUIDE BUSH
39 PAGB/T5783-2000 68D-E5362-00 BOLT, HEXAGON
40 PAF25-05000002 90119-09M00 BOLT,FLANGE
41 PAF25-05000005 65W-11191-00-1S, 65W-11191-00-94 COVER,CYLINDER HEAD
42 PAF25-05000004 65W-11356-00 SEAL,CYLINDER COVER
43 PAGB/T5783-2000 68D-E5362-00 BOLT, HEXAGON
44 PAGB/T97.1-85 66M-11327-00-94 WASHER,PLATE
45 PAF15-07050004 69M-E5363-00 PLUG,OIL
46 PAJASO F404 31-025 93210-24800-00 O-RING
47 PAF25-05050007 90430-06014 GASKET
48 PAF25-05050006 90109-06M65 BOLT
49 PAF25-02010005 62Y-11325-00 ANODE
50 PAF15-07010009 66M-11328-00 GROMMET,ANODE
51 PAF15-07010011 66M-11327-00-94 COVER, ANODE
52 PAF15-07010012 66M-12535-00 PLATE,ANODE
53 PAGB/T5783-2000 68D-E5362-00 BOLT, HEXAGON
54 PAGB/T5783-2000 68D-E5362-00 BOLT, HEXAGON
55 PAGB/T97.1-85 66M-11327-00-94 WASHER,PLATE
56 PAF25-05000003   WASHER,PLATE
57 PAF25-08000005   SIGN 5
58 PAGB/T5783-2000 68D-E5362-00 BOLT
View as Grid List

Items 25-33 of 33

Page
per page
Set Descending Direction
  1. Add to Wish List
    Yamaha / Mercury / Parsun Gasket cylinder seals 25HP (4-Stroke) 25-833103 65W-11356-00
    Yamaha / Mercury / Parsun Gasket cylinder seals 25HP (4-Stroke) 25-833103 65W-11356-00
    As low as €21.95 €18.14
  2. Add to Wish List
    Yamaha / Parsun Oil Cap (68D-E5362-00-00, 67D-15710-00-00)
    Yamaha / Parsun Oil Cap (68D-E5362-00-00, 67D-15710-00-00)
    As low as €9.95 €8.22
  3. Add to Wish List
    Yamaha / Mercury / Parsun Exhaust inner cover gasket F20 / 25 T25 F30 / F40 65W-41114-00 27-830298
    Yamaha / Mercury / Parsun Exhaust inner cover gasket F20 / 25 T25 F30 / F40 65W-41114-00 27-830298
    As low as €18.95 €15.66
  4. Add to Wish List
    Yamaha / Mercury / Parsun Gasket, Cylinder head F20/F25 HP
    Yamaha / Mercury / Parsun Gasket, Cylinder head F20/F25 HP
    As low as €43.95 €36.32
  5. Add to Wish List

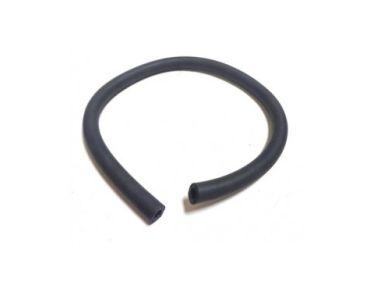

    Yamaha / Parsun Hose FT, F20, F25 (ALL) (1998-08) 90445-09105
    Yamaha / Parsun Hose FT, F20, F25 (ALL) (1998-08) 90445-09105
    €10.95 €9.05
  6. Add to Wish List

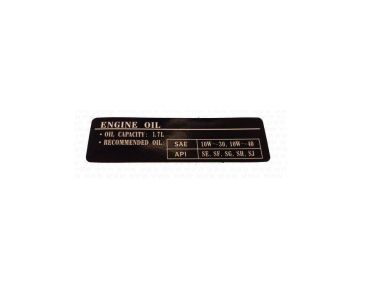

    Parsun SIGN 5 F20 & F25 (PAF25-08000005)
    Parsun SIGN 5 F20 & F25 (PAF25-08000005)
    €4.95 €4.09
  7. Add to Wish List
    Yamaha/Mercury/Parsun Three Way Pipe 4-6 mm 688-24378-00
    Yamaha/Mercury/Parsun Three Way Pipe 4-6 mm 688-24378-00
    €15.95 €13.18
  8. Add to Wish List
    Parsun WASHER ,PLATE F20 & F25 (PAF25-05000003)
    Parsun WASHER ,PLATE F20 & F25 (PAF25-05000003)
    €6.95 €5.74
  9. Add to Wish List
    Yamaha / Parsun / Mercury Anode FT, F20, F25 (ALL) (1998-08) (62Y-11325-00, 826887M)
    Yamaha / Parsun / Mercury Anode FT, F20, F25 (ALL) (1998-08) (62Y-11325-00, 826887M)
    As low as €11.95 €9.88
View as Grid List

Items 25-33 of 33

Page
per page
Set Descending Direction

Yamaha Parsun Outer Cover, Exhaust.jpg

Number: Order number: OEM: Description:
1 PAF25-05010000 65W-15100-00-94 CRANKCASE ASSY
2 PAF25-00000014 93608-12063 PIN, DOWEL
3 PAGB/T5782-2000   BOLT, HEXAGON
4 PAGB/T5782-2000   BOLT, HEXAGON
5 PAF25-05000007 65W-15121-00 CRANKCASE
6 PAGB/T3452.1-1992 65W-15663-00 SEAL
7 PAGB/T5783-2000 68D-E5362-00 BOLT, HEXAGON
8 PAF25-05010108 65W-11169-00 GASKET ,BREATHER COVER
9 PAF25-05010109 65W-11168-00 COVER,BREATHER
10 PAGB/T5783-2000 68D-E5362-00 BOLT, HEXAGON
11 PAF25-05010106 65W-11119-00 HANGER,ENGINE
12 PAGB/T5782-2000   BOLT, HEXAGON
13 PAF15-04000002 90340-14M00 BOLT,OIL DRAIN
14 PAF15-04000003 90430-14115 WASHER
15 PAF25-00000013 65W-11351-00 GASKET,ENGINE
16 PAF4-04000030 90467-09M09 SPRING,FUEL PIPE’’B’’
17 PAF25-05000100 5GH-13440-00 OIL CLEANER
18 PAF4-04000036 68D-E1168-00 THERMOSTAT
19 PAF15-07010022 62Y-12414-00 GASKET, THERMOSTAT
20 PAF15-07010021 6H3-12413-00-00 COVER, THERMOSTAT
21 PAGB/T5783-2000 68D-E5362-00 BOLT
22 PAGB/T97.1-85 66M-11327-00-94 WASHER 6
23 PAGB/T97.1-85 66M-11327-00-94 WASHER 8
24 PAF25-05010113 62Y-11372-01 NIPPLE,HOSE
25 PAF25-05010107 65W-13286-00 CLEANER
26 PAF25-05010112 65W-41113-00-94 OUTER COVER, EXHAUST
27 PAF25-03000008 90445-09068, 90445-092K100 HOSE
28 PAHT-2.5x60 61A-14455-00-00 CLAMP
29 PAF15-05000011 688-24378-00 THREE-WAY PIPE
30 PAF25-03000011 90445-09105, 90445-092K1 HOSE
31 PAF25-03000009 90445-09010, 90445-09095 HOSE
32 PAF15-07010003 90401-20M00 BOLT, UNION
33 PAF25-05010111 65W-41114-00 GASKET, EXHAUST OUTER COVER
34 PAF25-05050100 65W-11111-02-94 CYLINDER ASSY
35 PAF25-00000014 93608-12063 PIN,DOWEL
36 PAF25-05040000 65W-11181-10 GASKET , CYLINDER HEAD
37 PAF25-05050104   VALVE GUIDE BUSH
38 PAF15-07040105   CIRCLIP, GUIDE BUSH
39 PAGB/T5783-2000 68D-E5362-00 BOLT, HEXAGON
40 PAF25-05000002 90119-09M00 BOLT,FLANGE
41 PAF25-05000005 65W-11191-00-1S, 65W-11191-00-94 COVER,CYLINDER HEAD
42 PAF25-05000004 65W-11356-00 SEAL,CYLINDER COVER
43 PAGB/T5783-2000 68D-E5362-00 BOLT, HEXAGON
44 PAGB/T97.1-85 66M-11327-00-94 WASHER,PLATE
45 PAF15-07050004 69M-E5363-00 PLUG,OIL
46 PAJASO F404 31-025 93210-24800-00 O-RING
47 PAF25-05050007 90430-06014 GASKET
48 PAF25-05050006 90109-06M65 BOLT
49 PAF25-02010005 62Y-11325-00 ANODE
50 PAF15-07010009 66M-11328-00 GROMMET,ANODE
51 PAF15-07010011 66M-11327-00-94 COVER, ANODE
52 PAF15-07010012 66M-12535-00 PLATE,ANODE
53 PAGB/T5783-2000 68D-E5362-00 BOLT, HEXAGON
54 PAGB/T5783-2000 68D-E5362-00 BOLT, HEXAGON
55 PAGB/T97.1-85 66M-11327-00-94 WASHER,PLATE
56 PAF25-05000003   WASHER,PLATE
57 PAF25-08000005   SIGN 5
58 PAGB/T5783-2000 68D-E5362-00 BOLT
