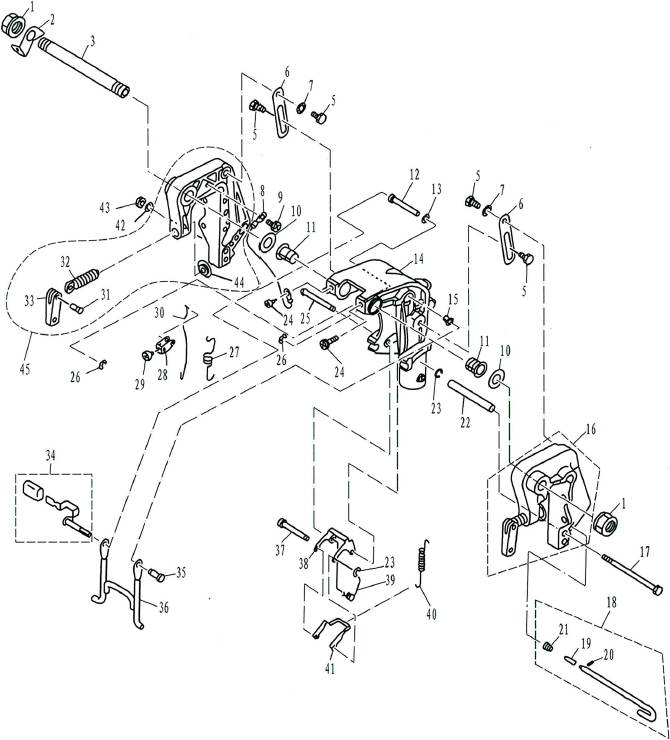

Bracket 1

Nummer:	Bestelnummer:	Yamaha OEM:	Omschrijving:
1	PAF15-01010007	63V-43145-00, 90185-22007, 90185-22043	NUT, SELF-LOCKING
2	PAF15-01010003	66R-43113-00	PLATE, TWO HOLE
3	PAF15-01010001	63D-43131-00, 63D-43131-01, 63W-43131-10	BOLT, CLAMP RIGHT
4	PAF15-01010201	63V-43112-07-4D, 63V-43112-08-8D	BRACKET, RIGHT
5	PAF15-01010103	90109-06M84	SCREW, FLAT HEXAGON
6	PAF15-01010105	63V-43181-00	PLATE, TILT STOPPER
7	PAF15-01010104	90206-10M24	WASHER, WAVE
8	PAF15-01010202	66M-82148-00	TIGHTWIRE, EARTHING
9	PAGB/T818-2000		SCREW, PAN HEAD
10	PAF15-01010002	90202-22M5	WASHER, NYLON
11	PAF15-01010302	90386-22M15, 90386-22M94	BUSH, ROTARY BRACKET
12	PAF15-01010308	90387-07M07	BUSHING, ORIENTATION
13	PAF15-01010309	90202-07M60	WASHER, NYLON
14	PAF15-01010301	66M-43311-10-4D, 66M-433111-08D	BRACKET, ROTARY
14	PAF15-01010301S	63V-43311-03-4D, 63V-43311-038D	BRACKET, ROTARY SMALL
15	PAF15-01010311	90386-07M95	BUSH, NYLON
16	PAF15-01010100	63V-43111-06-4D, 63V-43111-078D	LEFT BRACKET ASSY
17	PAGB/T5782-2000		BOLT M6X145
18	PAF15-01010400	66M-43160-01	LIMITATIVE ROD ASSY
19	PAF4-01050003		NOG, PREVENTED UNLOCK
20	PAGB/T879.1-2000		PIN, SPRING
21	PAF15-01010402		CONICAL SPRING
22	PAF15-01010006	90387-06M13	TUBE, BOLT
23	PAGB/T896-86	93430-06005, 99001-06600, 99001-06600-00	CIRCLIP 4
24	PAGB/T818-2000		SCREW, PAN HEAD
25	PAF15-01010316	63V-43659-00	LONG SHAFT, LOCK ANGLE
26	PAGB/T896-86	93430-06005, 99001-06600, 99001-06600-00	CIRCLIP 5
27	PAF15-01010304	90507-20M00	SPRING, TENSION
28	PAF15-01010306	63V-43641-01	LEVER, ANGEL ORIENTATION
29	PAGB/T818-2000		SCREW, PAN HEAD M5X6
30	PAF15-01010005	66R-43617-00	ROD, TILT LOCK
31	PAF4-01010005	90243-04M01	RIVET, CLAMP HANDLE
32	PAF15-01010102	6E7-43116-00, 6L2-43116-00	SCREW, CLAMP
33	PAF4-01010004	6L8-G3118-01	CLAMP SHIPBOARD HANDLE
34	PAF15-01010305		TILT CLAMP HANDLE ASSY
35	PAF15-01010312	63V-43191-00	SHAFT, STOPPER
36	PAF15-01010313	66M-43350-01	SUPPORT ASSY
37	PAF15-01010317-3	66R-43611-00	SHORT SHAFT, LOCK ANGLE
38	PAF15-01010317-2	66R-43615-00	BRACKET, LOCK ANGLE
39	PAF15-01010315	90508-18M41	SPRING, TORSION
40	PAF15-01010314	63V-43656-00	SPRING, TENSION
41	PAF5-01010317-1		INNER BRACKET
42	PAGB/T848-1985		WASHER 6
43	PAGB/T6170-86		NUT M6
44	PAF4-01010003	620-43114-00, 648-43114-01	CLAMP PLATE
45	PAF15-01010200		RIGHT BRACKET ASSY
