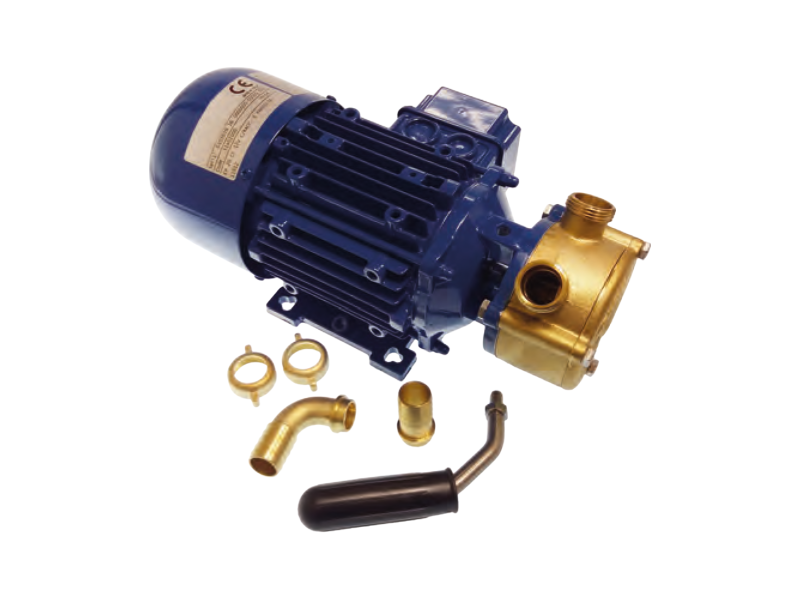

Electric pump
Bidirectional self priming pump with side liquid ring, widely used as bilge pump and tranfer liquids such as fresh water, sea water, gas-oil, etc.
Pump body and impeller in bronze.
Shaft in Stainless Steel AISI 316.
Specifications |
|||
REF | Capacity (l/m) | Voltage | Ø (mm) |
GS20220 | 25 | 12V (26 A) | 20 |
GS20221 | 25 | 24V (14 A) | 20 |
GS20222 | 53 | 12V (38 A) | 25 |
GS20223 | 53 | 24V (22 A) | 25 |
GS20224 | 75 | 24V (24 A) | 30 |
GS20225 | 120 | 24V (45 A) | 40 |
Head capacity |
|||||||
REF | 0 m | 5 m | 8 m | 10 m | 12 m | 15 m | 20 m |
GS20220 | 25 | 18 | 9 | 0 | 0 | 0 | 0 |
GS20221 | 25 | 18 | 9 | 0 | 0 | 0 | 0 |
GS20222 | 53 | 37 | 19 | 10 | 0 | 0 | 0 |
GS20223 | 53 | 37 | 19 | 10 | 0 | 0 | 0 |
GS20224 | 75 | 60 | 48 | 40 | 30 | 15 | 0 |
GS20225 | 120 | 110 | 95 | 85 | 80 | 55 | 30 |
Dimensions (zie afbeelding 2) |
||||||||||||
REF | A | B | C | D | E | G | H | I | K | L | P | X |
GS20220 | 100 | 80 | 100 | 35 | 115 | 63 | 106 | 120 | 7 | 295 | 105 | 12 |
GS20221 | ||||||||||||
GS20222 | 112 | 90 | 103 | 40 | 127 | 71 | 124 | 136 | 8 | 320 | 110 | 12 |
GS20223 | ||||||||||||
GS20224 | 125 | 100 | 135 | 50 | 140 | 80 | 165 | 160 | 8 | 375 | 125 | 16 |
GS20225 | 140 | 125 | 185 | 67 | 180 | 90 | 175 | 175 | 10 | 490 | 130 | 17,5 |
